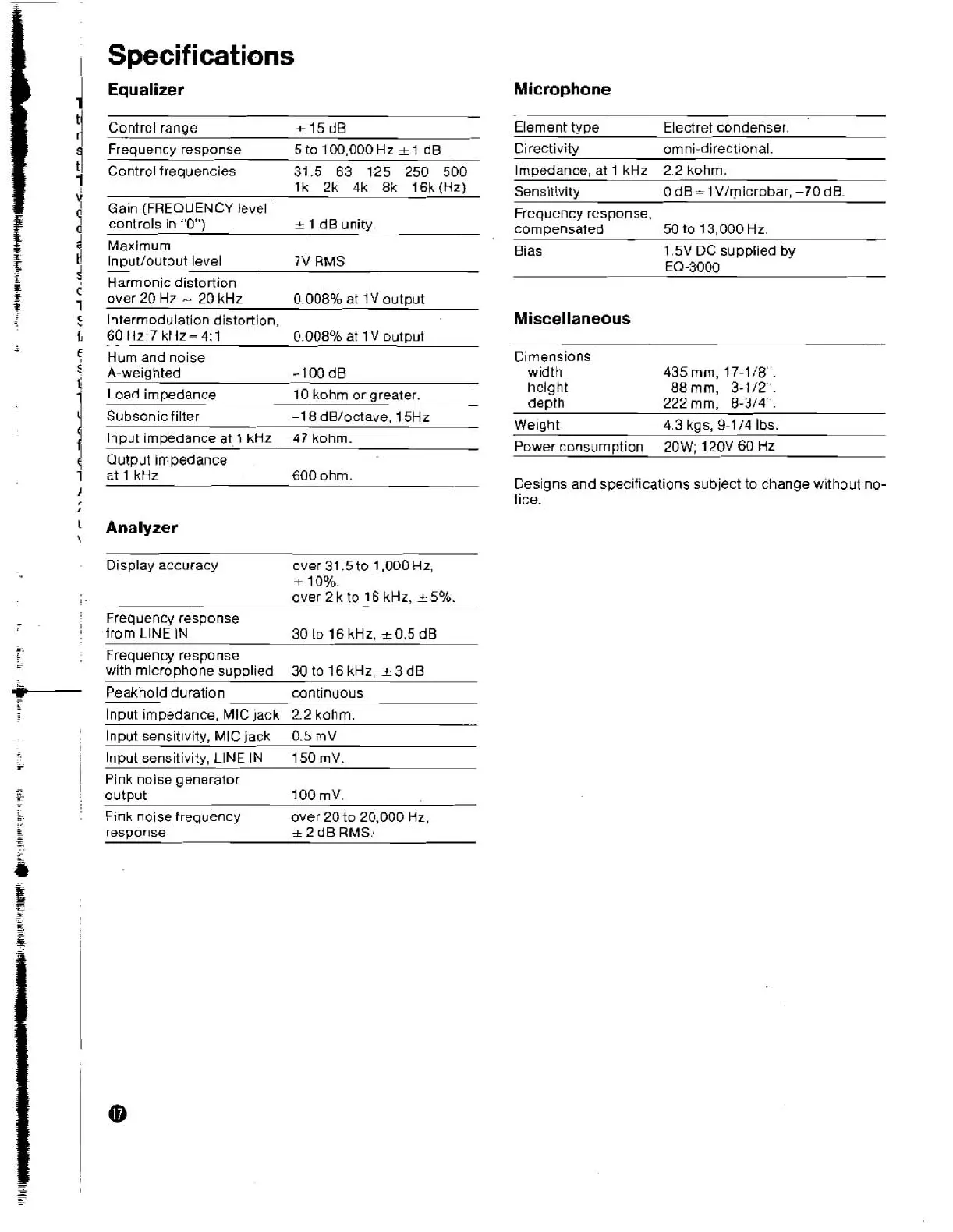

Specifications
Equalizer
Microphone
-
Control range -tl5dB
-
Frequency response 5 to 100,000 Hz
k
1 dB
Control frequencies 31.5 63 1-25 250 500
lk 2k 4k
8k
16klHZ)
Gain (FREQUENCY level
controls in "0")
+
1 dB unity.
Maximum
In~ut/output level 7V RMS
Harmonic distortion
over 20 Hz
-
20 kHz
0.008% at 1
V
output
Intermodulation distortion,
60
Hz:~
kHz=4:1
0.008% at 1
V
output
Hum and noise
A-weighted
-1
00 dB
Load impedance
Subsonic filter
-
10 kohm or greater.
-1
8
dB/octave, 15Hz
ln~ut irn~edance
at
1
kHz 47 kohrn.
-
Qutput impedance
at 1 kHz
600
ohm.
Analyzer
Display accuracy over 31.5 to 1,000
Hz,
*
10%.
over
2
k to
16
kHz.
*
5%.
Frequency response
from
LINE
IN
30 to
16
kHz, k0.5 dB
Frequenvy response
with microphone supplied 30 to 16 kHz,
*
3 dB
Peakhold duration continuous
lnput impedance, MIC
jack 2.2
kohm.
lnput sensitivity, MlC jack 0.5
mV
lnput sensitivity, LlNE IN 150 rnV.
Pink noise generator
output I00 rnv.
Pink noise frequency
over 20 to 20,000
Hz,
response
k
2
dB RMS:
Element
tv~e Electret condenser.
Directivity omni-directional.
Impedance, at
1 kHz 2.2 kohm.
Sensitivity
0
dB
=
lV/microbar, -70 dB.
Frequency response.
cornoensated 50 to 13.000 Hz.
Bias
1.5V DC supplied by
EQ-3000
Miscellaneous
Dimensions
width 435 mrn,
17-1
/8".
height
88
mrn, 3-1/2".
depth 222 mrn, 8-34".
Weight
4.3 kgs,
9-1
/4
Ibs.
Power consumption 20W; 120V 60 Hz
Designs and specifications subject to change without no-
tice.
