7.0 Mechanical Installation
A vertical rack space of 1U (1¾" / 44.5 mm high) is required. Ventilation gaps
are unnecessary (See Figure 7.1).
If the FDS-310 is likely to undergo extreme vibration through extensive road
trucking and touring, it is advisable to support the unit at the rear and/or sides
to lessen the stress on the front mounting flange. The necessary support can
generally be bought ready-built as a rack tray. As with any low-level signal
processing electronics, it is best to avoid mounting the unit next to a strong
source of magnetic radiation, for example, a high power amplifier, to help
keep residual noise levels in the system to a minimum.
Installation
44 mm
(1.73 ins)
482.6 mm
(19 ins)
230 mm
(9.06 ins)

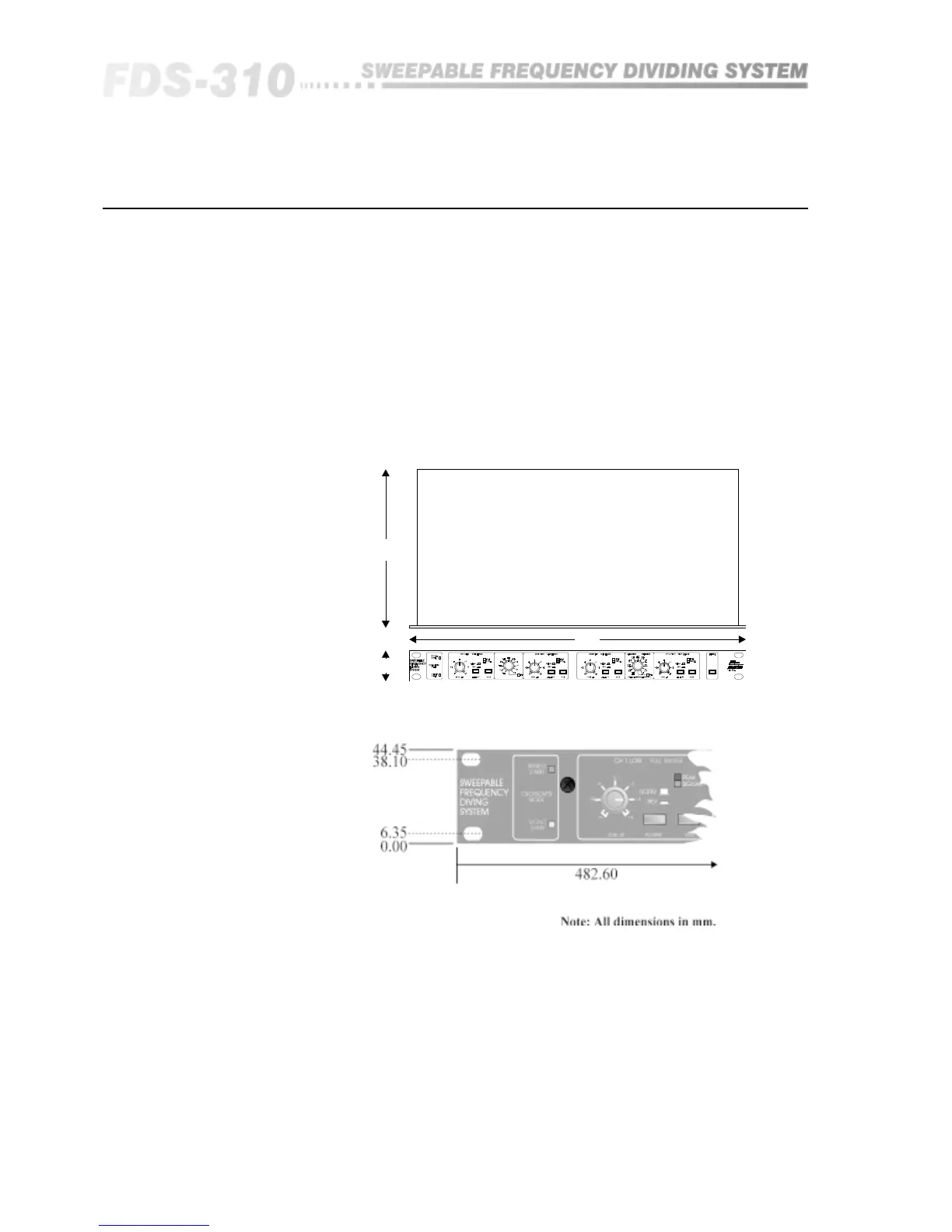

Fig 7.1 Unit dimensions.
Fig 7.2 Rack
dimensions.
