Setting up -
Schematics

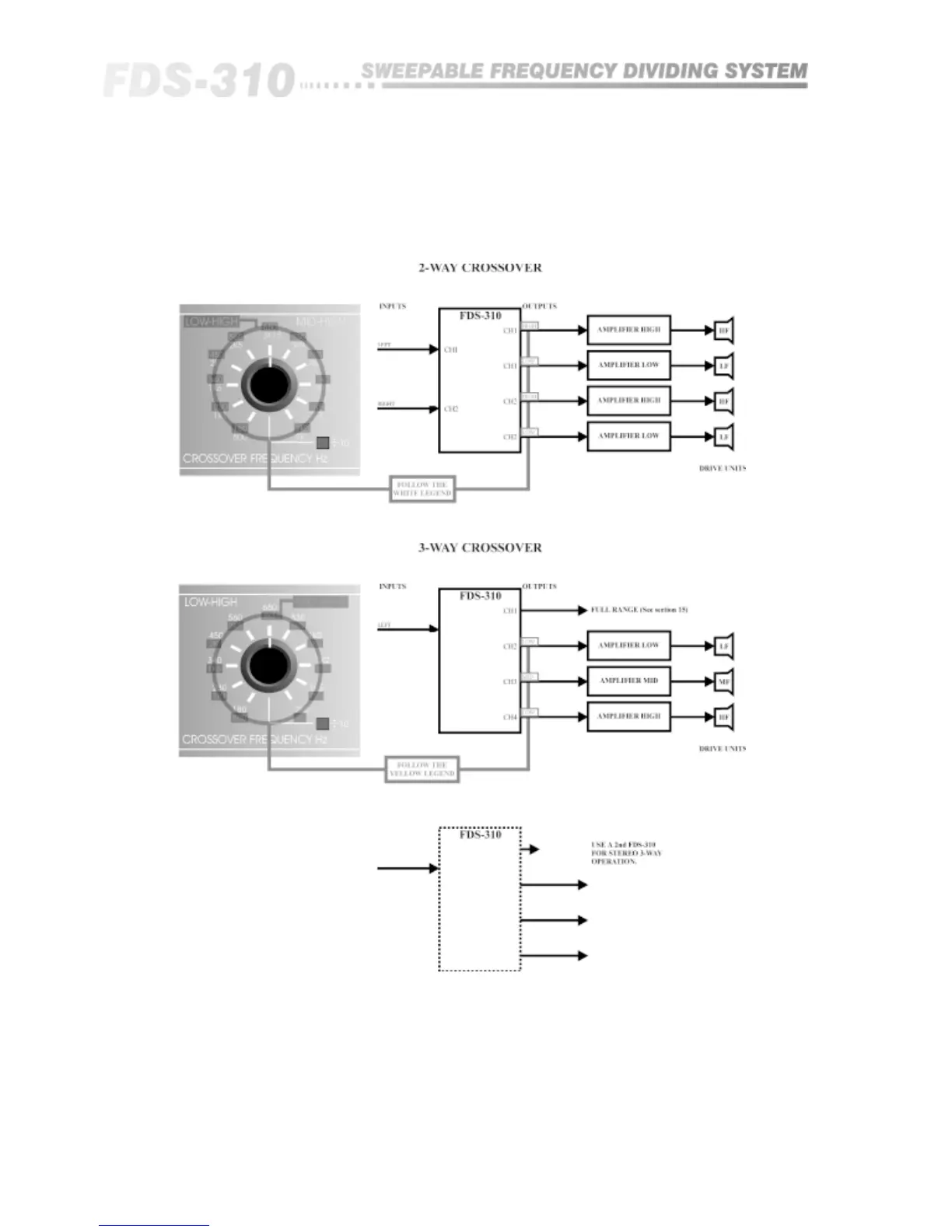

Fig 11.1 2- and 3-Way
Setups
The FDS-310 can drive sub-woofers ('Sub-Low or 'Sub-Bass' cabinets) when
switched to the 2-way configuration. The Sub-woofer-to-HIGH crossover point
can lie anywhere between 18Hz and 200Hz. The 'high' output is substantially
a full range signal, and is normally split further into 2 or 3 bands, using a
second active crossover. As with conventional 2-way operation, the FDS-310
handles up to 2-channels (stereo) in sub-woofer mode. If a mono sub-woofer
output is required, refer to section 13. Refer to section 22.1 for information on
locating the FREQ switches.
11.3 2-Channel
Sub-Woofer
Operation
