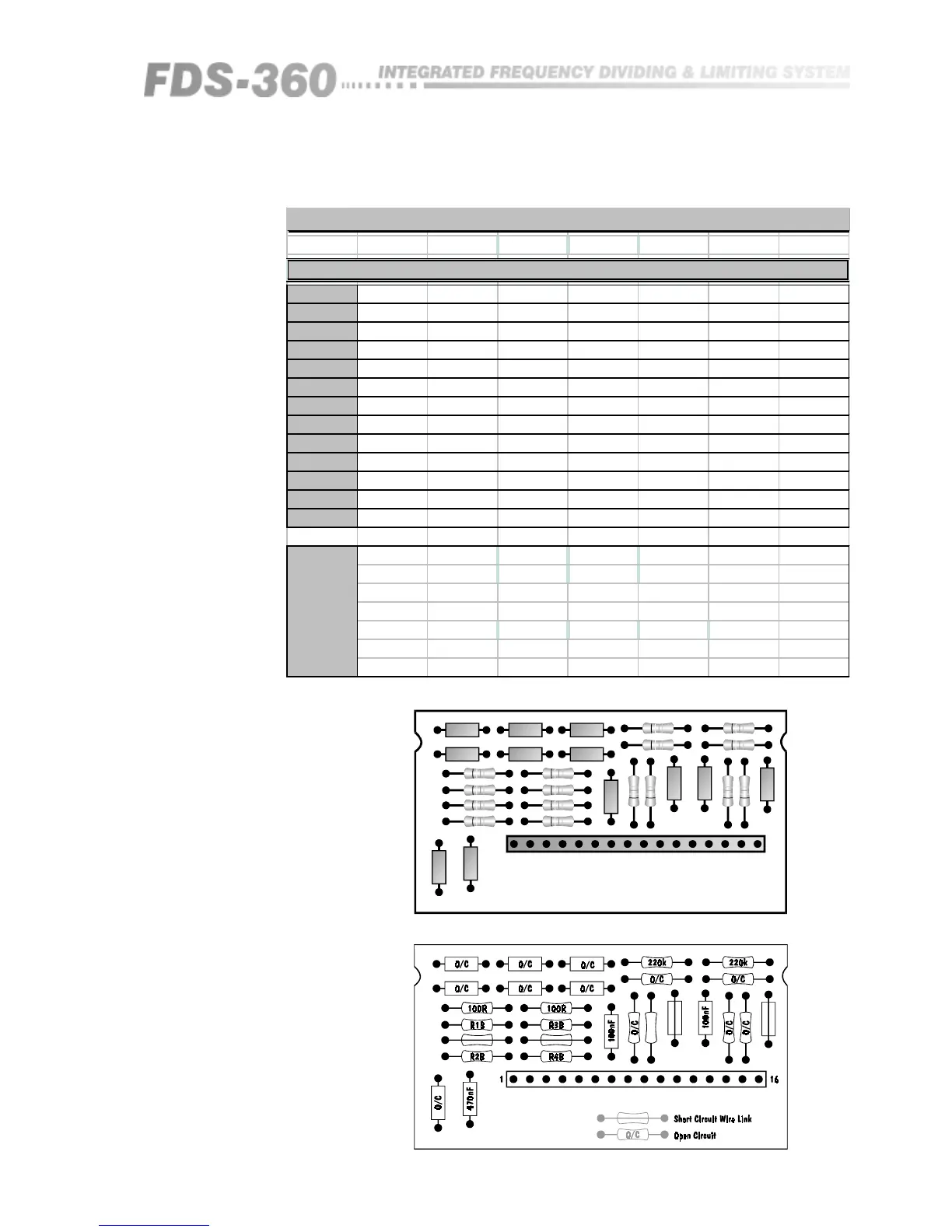

FDS-360 FREQUENCY CARD COMPONENT SELECTION - 24dB/Octave
See Notes at bottom for full component ID.
Freq. R1A R1B R5A R5B C1A C10 C9
6k3
27k 6k8 27k 18k 3n3F 10nF 3n3F
6k5
22k 6k8 12k 82k 3n3F 10nF 3n3F
7k0
39k 5k6 13k 39k 3n3F 10nF 3n3F
7k5
10k 8k2 18k 18k 3n3F 6n8F 2n2F
8k0
10k 7k5 10k 62k 3n3F 6n8F 2n2F
8k5
4k7 27k 8k2 330k 3n3F 6n8F 2n2F
9k0
3k9 120k 8k2 100k 3n3F 6n8F 2n2F
9k5
15k 56k 82k 33k 1n0F 6n8F 2n2F
10k0
15k 47k 43k 47k 1n0F 6n8F 2n2F
12k0
12k 43k 27k 62k 1n0F 6n8F 2n2F
15k0
7k5 - 15k - 1n0F 6n8F 2n2F
18k0
6k2 - 15k 82k 1n0F 6n8F 1n0F
20k0
5k6 - 13k 82k 1n0F 6n8F 1n0F
R1A
=
R1A, R2A, R3A, R4A, R6A, R8A
R1B
=
R1B, R2B, R3B, R4B, R6B, R8B
R5A
=R5A, R7A
R5B
=R5B, R7B
C1A
=
C1A, C1B, C2, C3, C4A, C4B, C5, C6, C7, C8
C9
=C9
C10
=C10
Fig 18.3 FDS-360F
Component Overlay
Fig 18.4 FDS-360F Full
Range Overlay
C4A
C1B
C7
C8
C6
C5
C10
C2
C4BC3
C1A
C9
R5A
R8B R8A R6B R6A
R2B
R4B
R2A R4A
R1B
R1A
R3B
R3A
R7BR5B
R7A
