Quick Reference Guide QRG

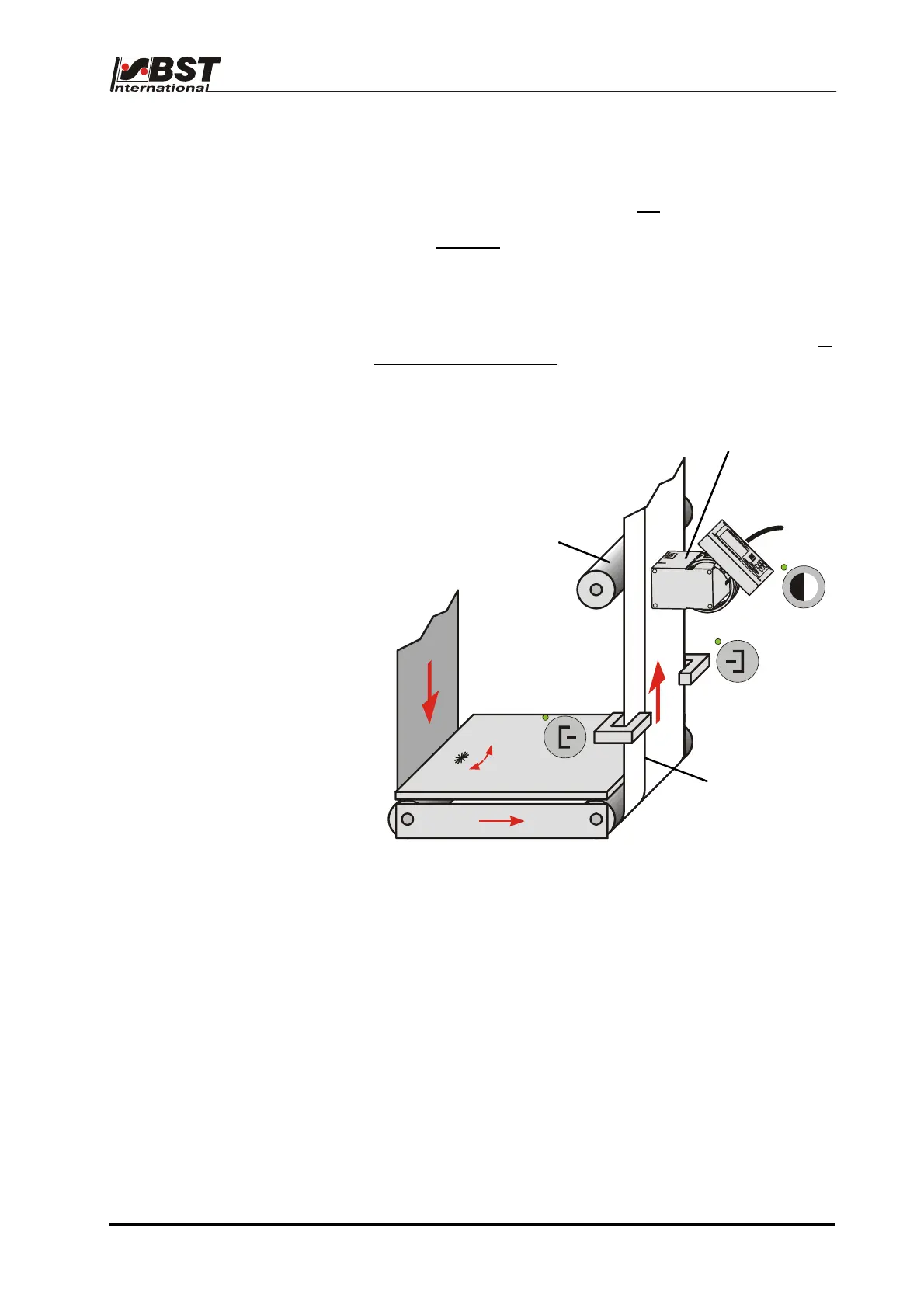

The following is valid in respect of the sensor mounting positions of
the analogue edge sensors (Sensor 1, Sensor 2):
The sensor, which is located to the left
of the material in the
web running direction (when looking from the material top
side), is sensor 1
.
The following is valid in respect of the sensor mounting position of
the line and contrast sensor:
The connecting cable of the line and contrast sensor points in
the direction of Sensor 2.
Printed line
CLS Pro 600
Connecting
cable
Sensor 3
Sensing roller
Sensor 1
Sensor 2
Quick Reference Guide EDV no.: MD.341.01.01
ekr 500 Plus with CLS Pro 600 Issue Date: 31.03.2009 Page: 2/18
