3.3.3- Advanced Functions

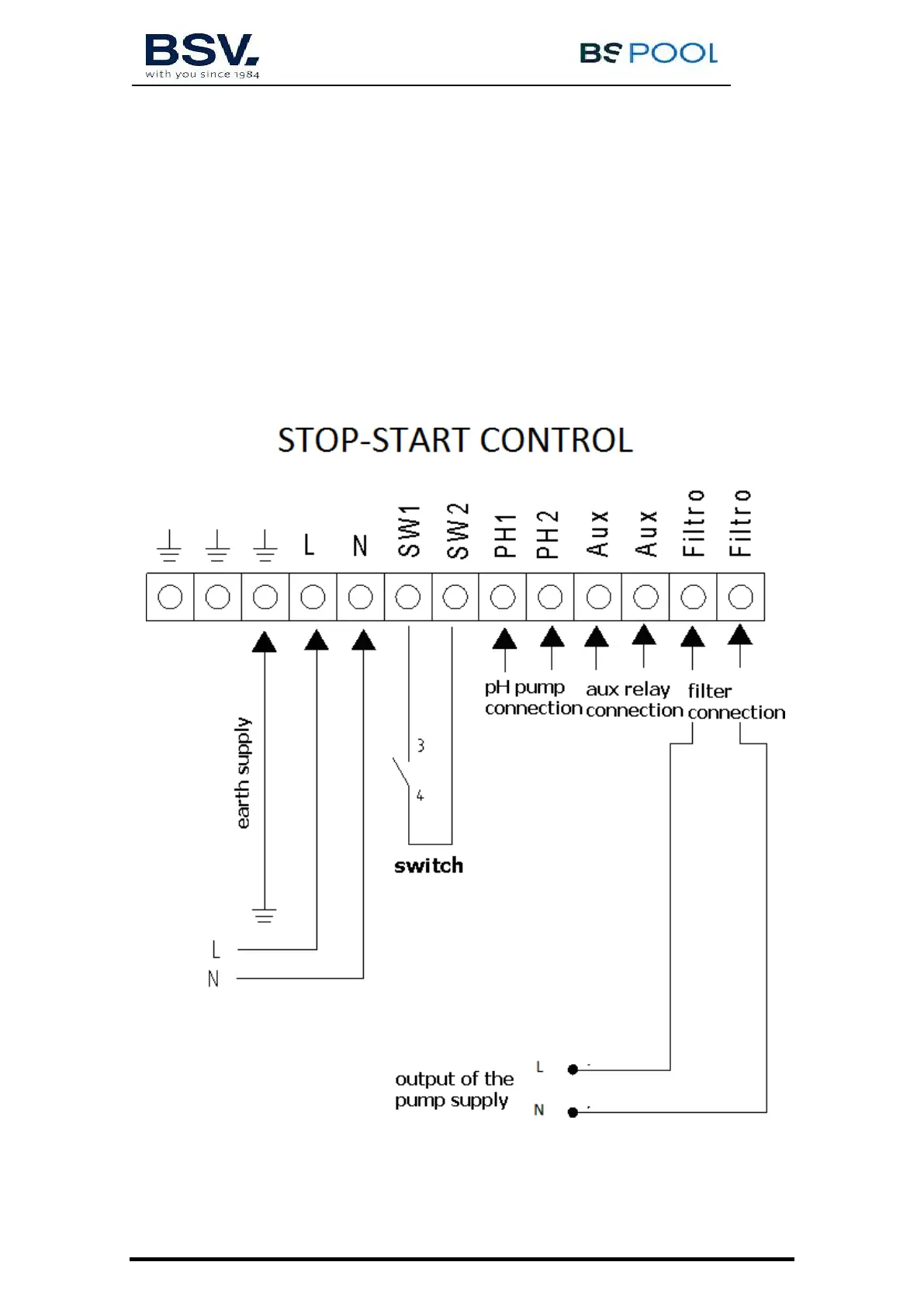

3.3.3.1- Stop-start control
This mode enables you to keep the equipment on permanently, so that when
the filtering pump starts up, it will instruct the chlorinator to start-up. When the
pump stops, the screen of the chlorinator will display the message "stop".
To activate this mode, remove jumper "LK2" from the power board, supply the
chlorinator directly at 230 V, and connect the "filter" inlets in parallel to the
supply of the filtering pump.
