3.2.3- AUTO kit
The AUTO kit (pH measure and regulation) can be added to any PRO series
unit. The following figures show the parts of the kit, plus an installation
diagram.

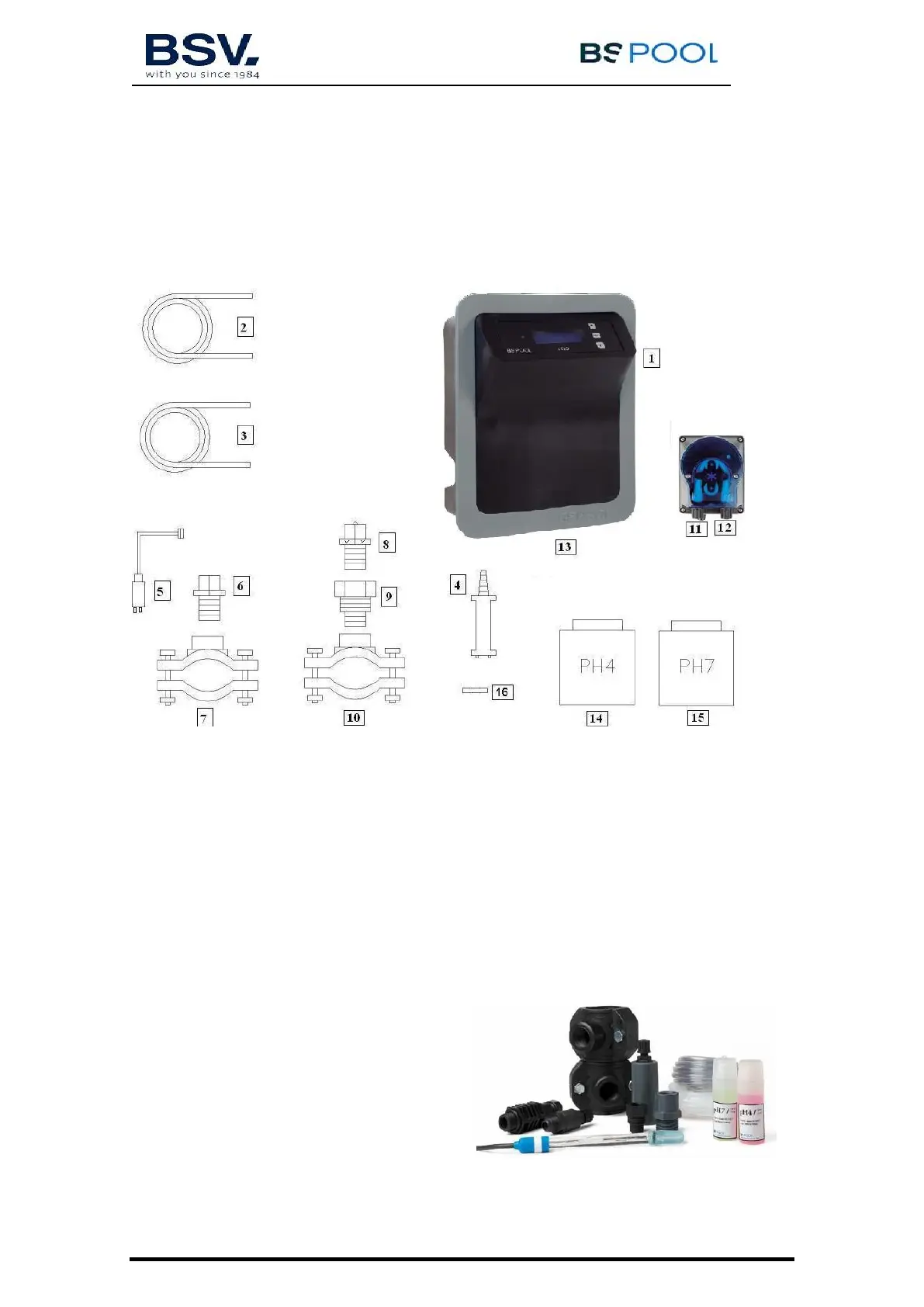

3.2.3.1- Parts
1- PRO Equipment
2- Suction Tube (flexible)
3- Injection Tube (rigid)
4- Suction filter (place vertically on the bottom of the acid container)
5- pH Probe
6- Probe Holder
7- Flange
8- Injector (place with the arrow facing downwards)
9- Pipe nipple 3/8,1/2
10- Flange
11- Acid inlet (suction tube)
12- Acid outlet (injection tube)
13- pH probe connector (BNC)
14- pH4 calibration liquid
15- pH7 calibration liquid
16- Rubber cap for calibration
