BSV BS POOL PRO50 - Hydraulic Connection Diagram; 1- PRO50-70 Series Equipment

58 / 150
Manual PRO50-150 V.2

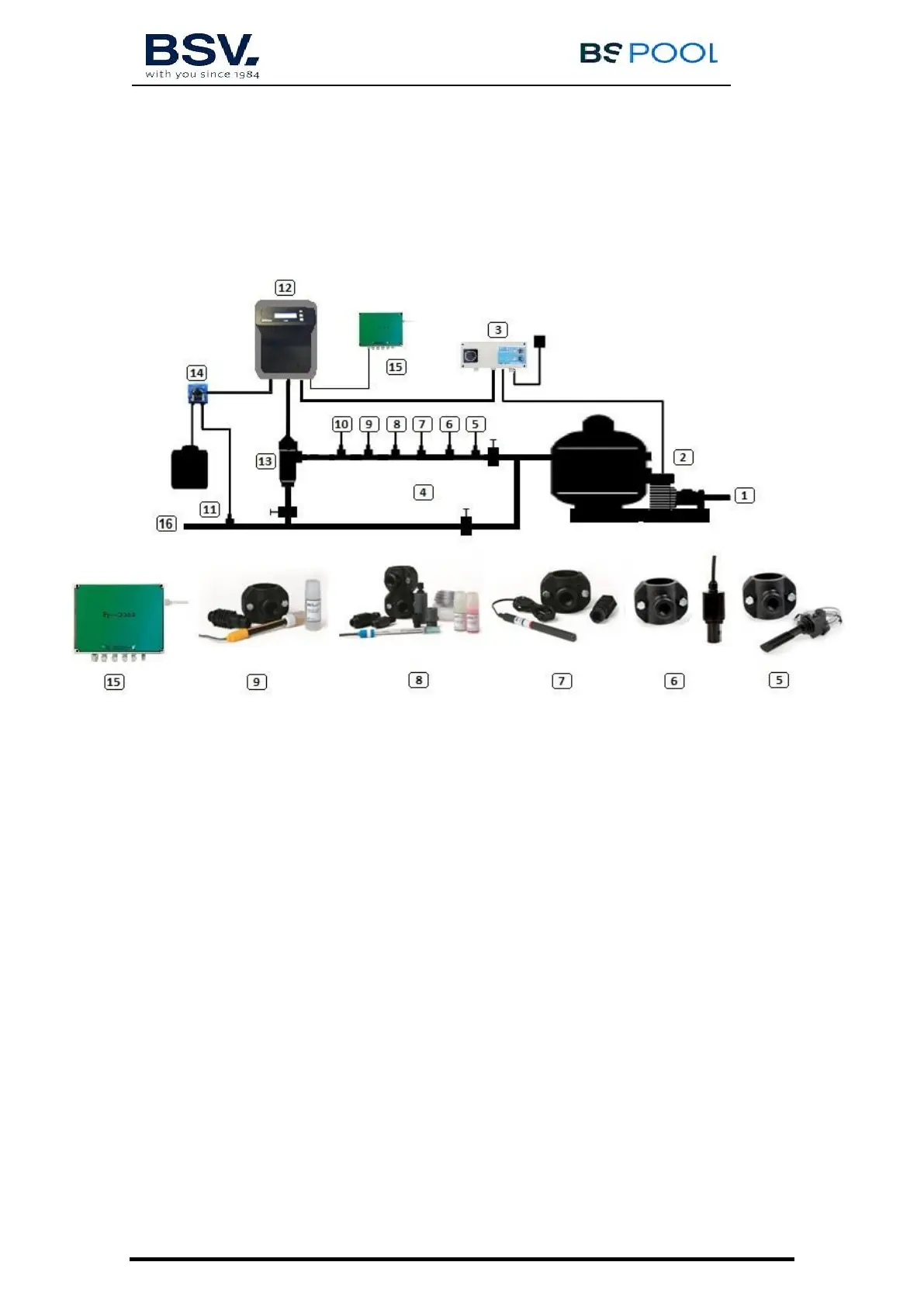

3.2- Hydraulic connection diagram
3.2.1- PRO50-70 Series Equipment
1. From the swimming pool.
2. Filtration
3. Electrical Panel
4. Bypass
5. Flow Switch (optional)
6. Conductivity probe (optional)
7. Temperature probe (optional)
8. pH probe, included in AUTO kit (optional)
9. Redox probe, included in ADVANCED kit (optional)
10. Ground kit (optional)
11. Acid injector
12. PRO50-70 chlorinator
13. Electrolysis cell
14. pH pump
15. Domotic CONNECT kit (optional)
16. To the swimming pool.
