BÜCHI Vacuum Controller V-800/V-805
4 Putting into operation of V-800
Look for damages when you unpack the unit. It is important
that you detect any transport damages when you unpack. If
necessary, you must prepare a status report immediately
(informing postal company, railway company or transportation
company).
Keep the original packaging in case the unit needs to be
transported later.
4.1 Point of use
The apparatus is installed directly onto the rotary evaporator
R-200/R-205. If the controller is operated on another rotary
evaporator or apparatus, it is mounted onto a rod.
4.2 Electrical connections
Determine whether the voltage on the socket corresponds to
the voltage given on the apparatus plate.
If the Vacuum Controller is operated in connection with a
Rotavapor R-200/R-205, the controller is connected to the
rotary evaporator. The connection cable is under the cover
plate of the evaporator (see 4.3). In all other cases, connection
is done via the supplied mains cable.

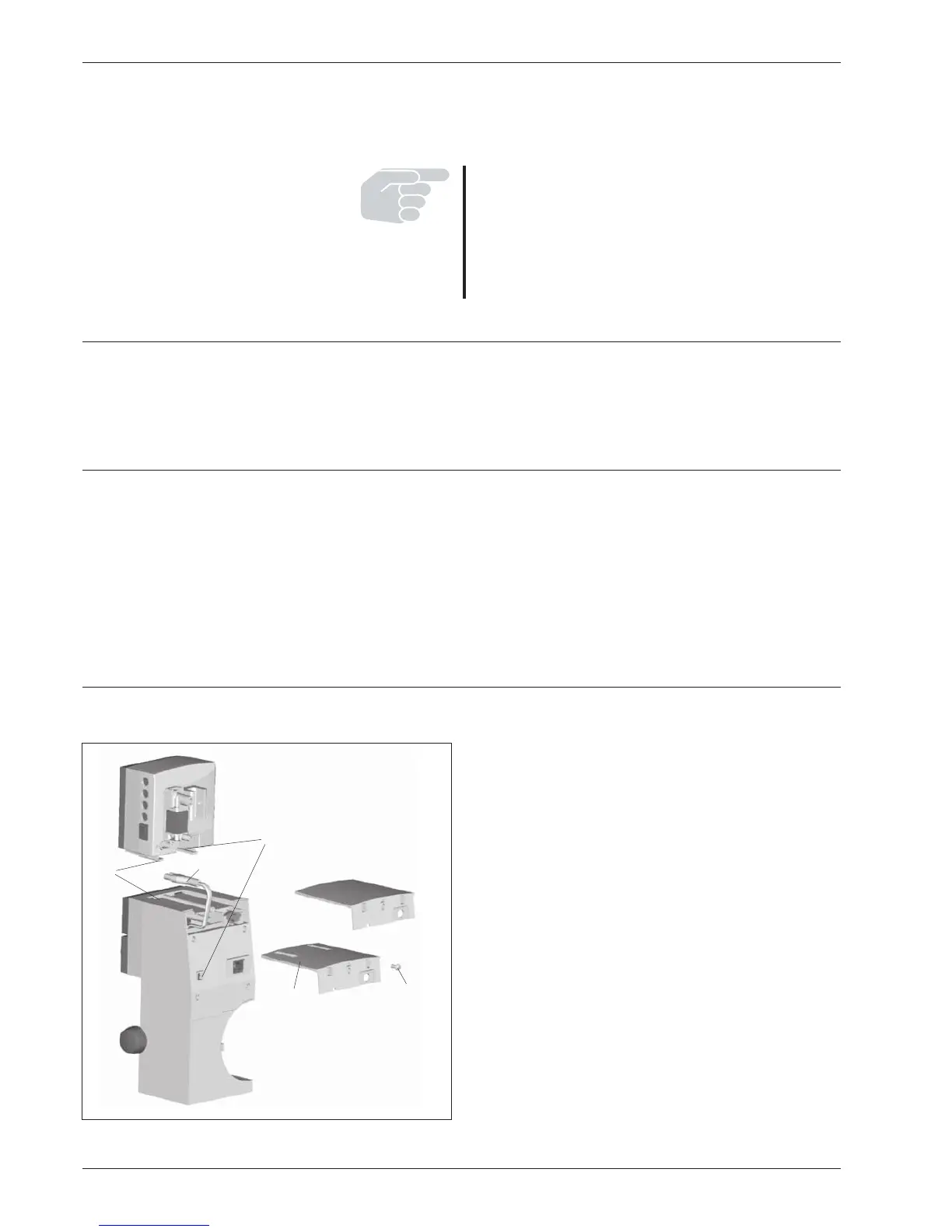

4.3 Fixation of the Vacuum Controller to
Rotavapor R-200/R-205
Screw out screw and pull the cover plate to the back.
Lift the lower spring-loaded catch of the front plate and
remove the front plate.
Connect the display module with the flat belt cable in the
apparatus.
Connect the 2 pole cable with the display module.
Latch display module from the front to the Rotavapor and
insert it on the rear of the plug socket into the foreseen
holder as shown in the picture.
Screw the tower cover back on.
The holder for the valve unit is fastened to the side of the
tower and valve unit is pushed into it.
4 Putting into operation
V-800/V-805 with Rotavapor R-200/R-220
