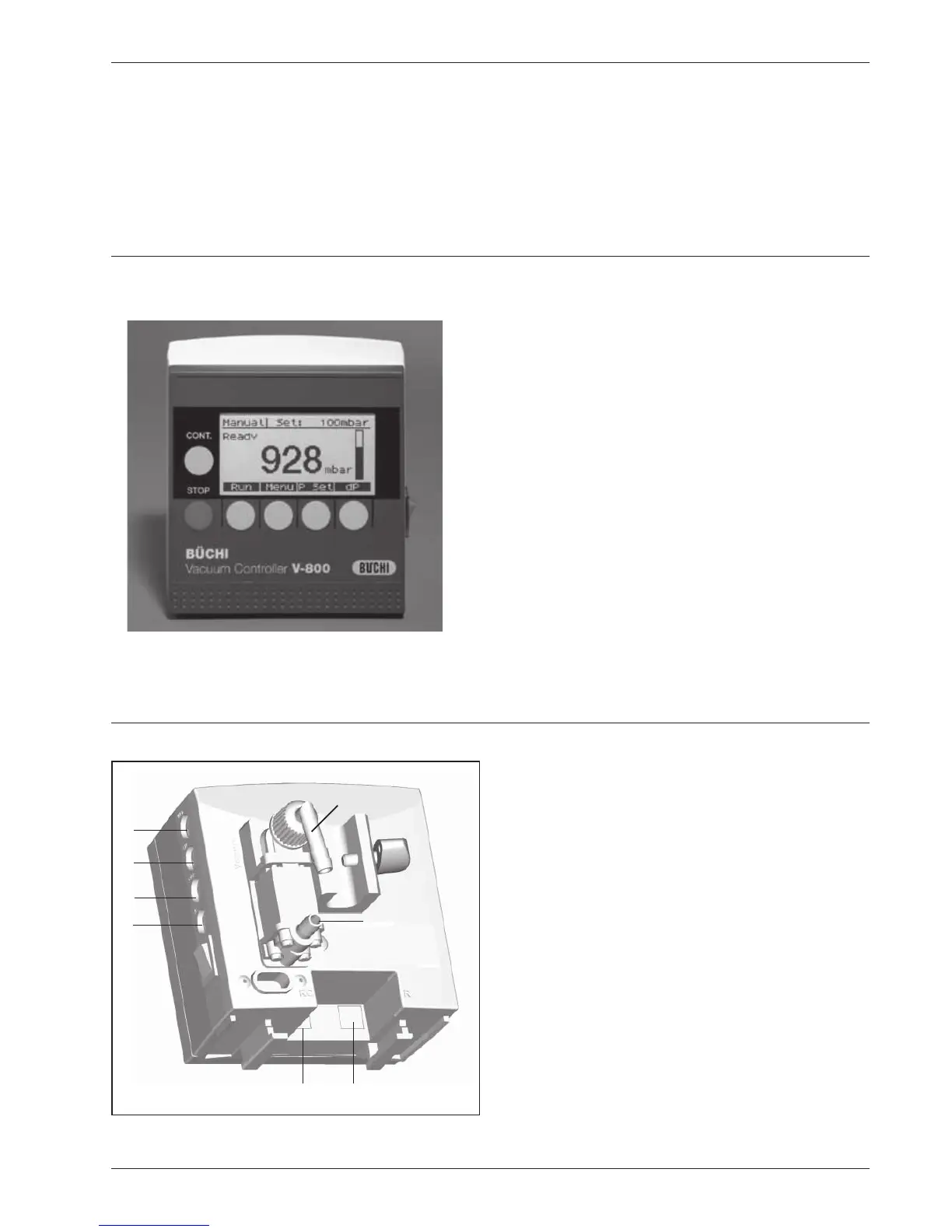

BÜCHI Vacuum Controller V-800/V-805
Controls V-800
5 Operation V-800
5 Operation V-800
Note that the apparatus must be properly put into operation
in accordance with the instructions in Chapter 4, Putting into
operation.
5.1 Controls V-800
 Main switch
 Function button, activates the respectively assigned
function
 Button for permanent vacuum turns pump 100 % on
 Stop button
5.2 Connections V-800
 Valve unit or vacuum valve Valve
 Cooling water valve CW
 Pump Pump
 No function
 Connection R for Rotavapor R-200/R-205, controls the
function ”Rotation on/off and lowering/raising” of rotary
evaporator
 Connection RC for remote control
 Vacuum connection
 Ventilation valve
Connections V-800














