BÜCHI Vacuum Controller V-800/V-805
4 Putting into operation
4.4 Installation with water jet pump B-764
 Screw on water jet pump together with inserted sealing to
the water tap. Plug cable to valve socket of the controller.
 Connect the water jet pump with the rotary evaporator
via the Woulff bottle.
 Screw on cooling water valve with sieve and seal to the
water tap. Plug cable to the CW socket of the controller.
 Connect cooling water tubing.

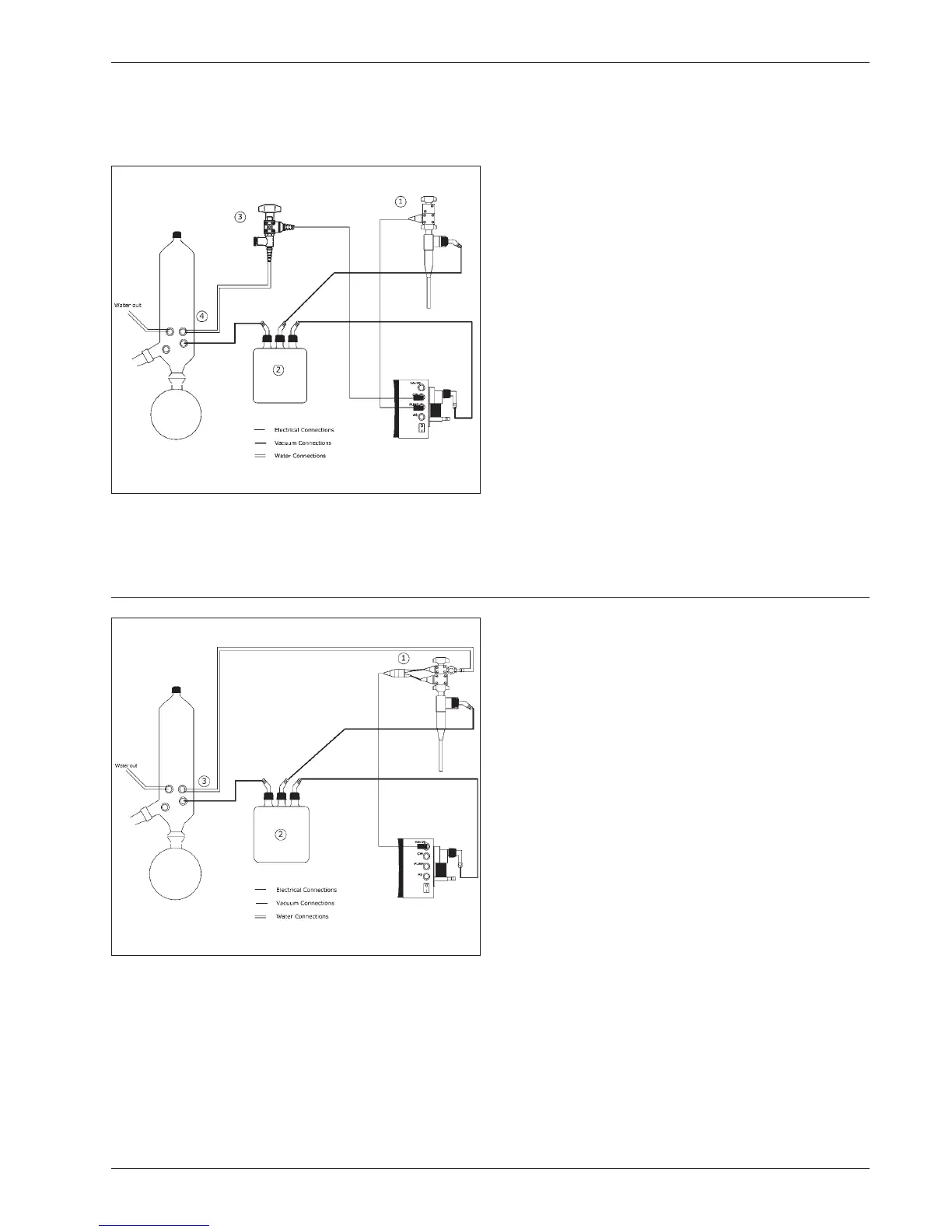

V-800/V-805 with water jet pump B-767
V-800/V-805 with Water jet pump B-764
4.5 Installation with water jet pump B-767 with
integrated cooling water valve
 Screw on water jet pump with seal to the water tap. Plug
cable to valve socket of the controller.
 Connect water jet pump to the rotary evaporator via Woulff
bottle.
 Connect cooling water tubing.
