Buchi Vac V-500 - 4.5 Büchi Vac V-502

16

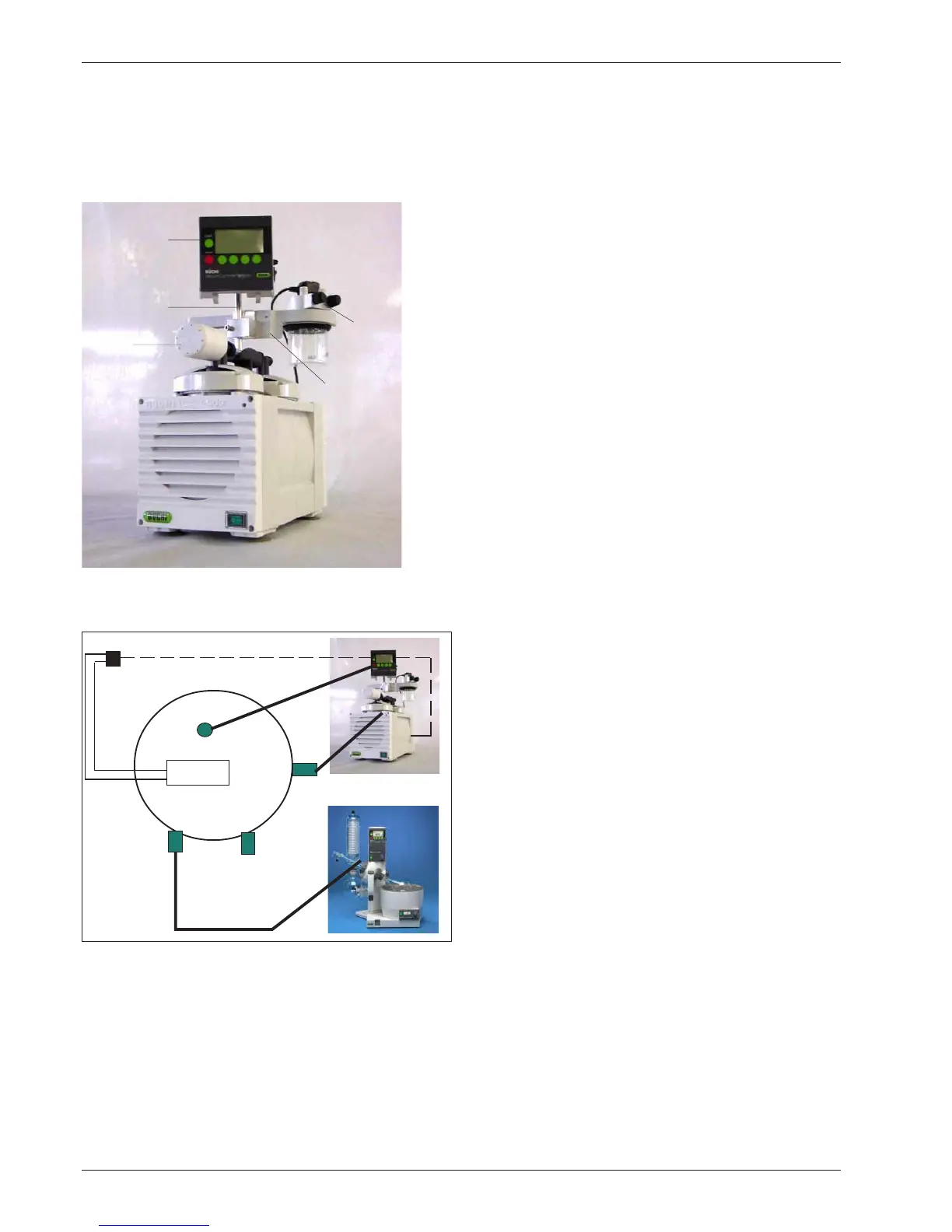

Fig. 19: Installation Vac V-502 with V-800 with Rotavapor
4 Putting into operation BÜCHI Vac V-500/V-501/V-502/V-503
4.5 Büchi Vac V-502
 Stand
 Valve unit
 Holder
 Vacuum Controller V-800
 Sound absorber
Mechanical and electrical connections
• Screw sound absorber  onto pump outlet
• Insert the stand  into the desired socket on the pump
and secure it.
• Secure the white plastic holder  to the stand .
• Fasten the vacuum controller V-800  to the stand .
• Insert the valve unit  into the holder .
• Attach the cable from the valve unit  to the vacuum
controller connection „V“ (Connection A).
• Join the connection Pump of the vacuum controller to the
24 V ~= on the V-500 with the control cable (Connection B).
• Connect the power cable.
Vacuum connections
The following vacuum connections are made using the
vacuum hose:
 Pump inlet to the valve unit (via the connection “Pump”).
• Rotation evaporator to the valve unit
(via the connection “R1”).
• Vacuum controller V-800 to the valve unit
(via the connection “V.Contr.”).
• Fit sealing cap on connection R2.
The pump will now be turned on and off by the V-800.
Fig. 18: VAC-502





B
Pump
V. Contr.
R1
R2
A
