BÜCHI Vac V-500/V-501/V-502/V-503 8 Spare parts
Only original spare parts and accessories from BÜCHI guaran-
tee that the device will function properly and safely. Spare parts
and accessories from other manufacturers may be used only
with the express permission of BÜCHI AG. General safety
regulations and Chapter 6 must be observed when assembling
or dismantling the device. Before putting the device into
operation, please check that it is fully functional as described in
Chapter 6.2. Production according to this manual is forbidden.
The copyright is owned by the firm Büchi Labortechnik AG.
8.1 Spare parts
1 Spare parts set with 2 valve heads 38120
and 2 diaphragms
1 Glass head set (with 1 glass head) 37966
1 Valve head set (with 2 valve heads) 38025
1 Diaphragm set (with 1 diaphragm) 38020
1 Set of hose connections (2 x bent / 37999
2 x straight / 6 x screw caps)
2 Sealing caps
1 PTFE hose
1 Set of hose connections (4 x bent / 38000
2 x straight / 6 x screw caps)
1 Control cable Vacuum Controller 38010
V-800 to V-500, or B-721 zu 721
1 Secondary condenser 37775
1 Holder for secondary condenser 38086
and collecting tank
1 Collecting tank for secondary condenser 37949
1 Spring lock washer 37872
1 Gasket for secondary condenser 37873
or valve unit
1 Collecting beaker for valve unit 38005
1 Signal cable for KNF vacuum 38015
controller
1 Signal cable for Vacuubrand 38014
vacuum controller
1 Sound absorber 37947
1 Rubber vacuum hose 17622
1 PVC vacuum hose 04113
1 Cooling water hose 04133
1 Stand with holder for valve unit/ 38021
secondary condenser
Table 9a: Spare parts
8 Spare parts
37966
38000
38025
38020
37999

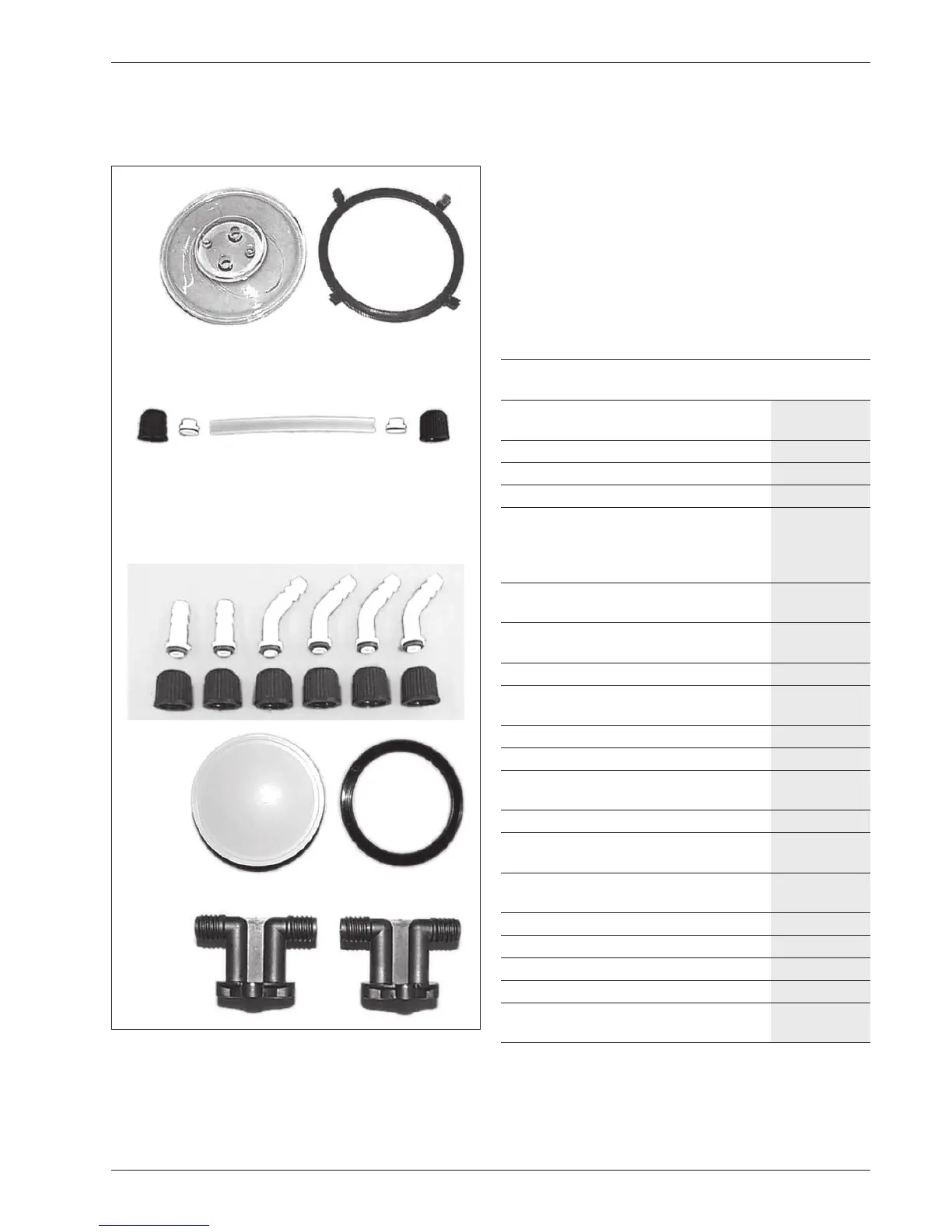

Fig. 25a: Spare parts
