5 Operation BÜCHI Vac V-500/V-501/V-502/V-503
There are several possiblities how the Vacuum System can
be used with a Vacuum Controller.
The most important are:
• 1 Rotavapor with 1 V-800
• 1 Rotavapor with 1 B-168
• 2 Rotavapor with 2 V-800
• 2 Rotavapor with 2 B-168
• 1 Rotavapor with integrated Controller
• 2 Rotavapor with 1 V-800 and 1 B-168
• 1 Rotavapor Vacuum Controller not from Büchi

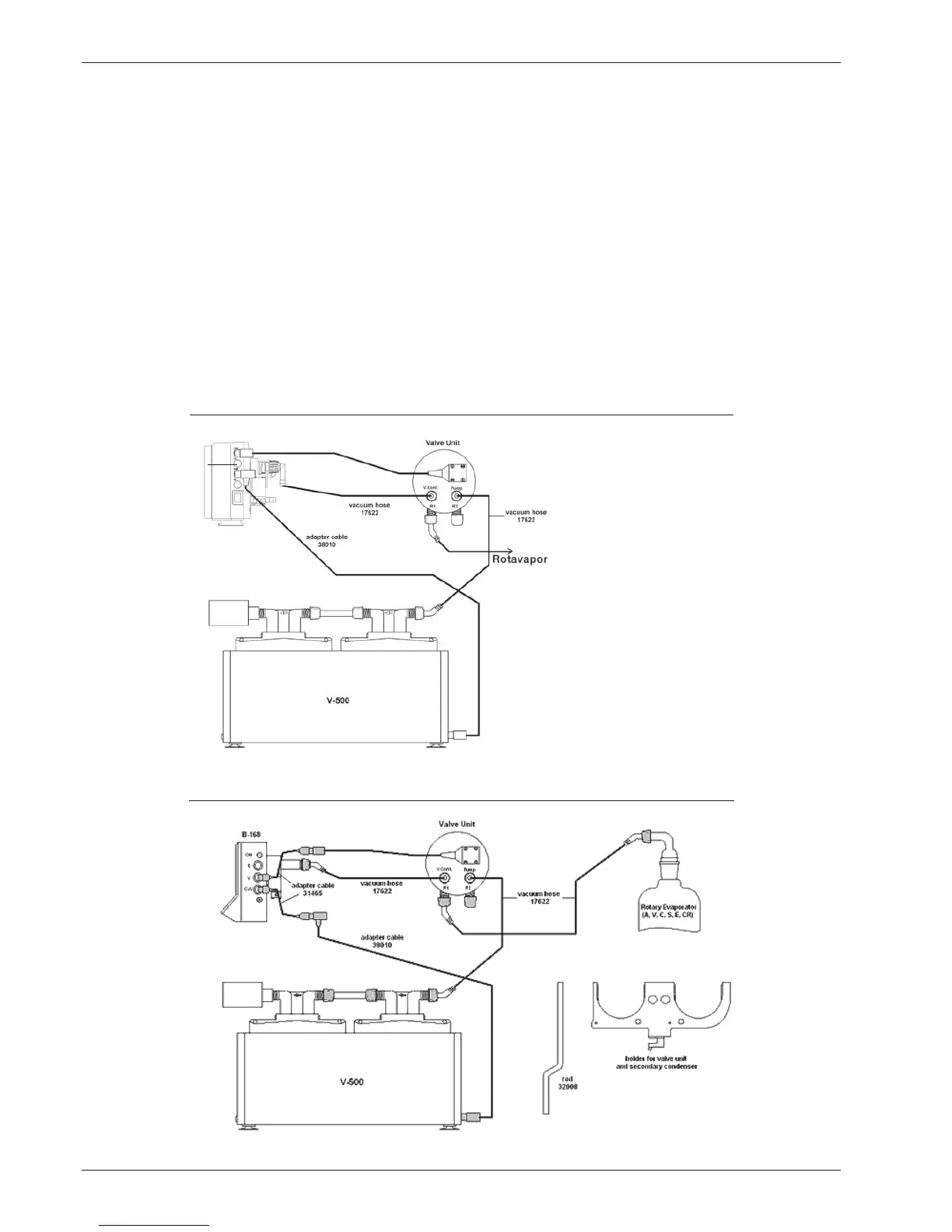

Connection of vacuum pump to the V-800 controller, valve unit and rotation evaporator






Connection of vacuum pump to the B-168 controller, valve unit and rotation evaporator
