AM10 - We reserve the right to make any changes due to technical modifications! 3
Installation manual 1
Contents
1 Installation manual
1.1 Description of Module
Product description
The AM10 is a modulating control for Buderus
boilers equipped with the EMS bus. It sets the
supply water temperature based on outdoor
temperature. The boiler fires, runs and modu-
lates based on the information received from
the AM10, and the delta temperature between
supply and return.
An ON/OFF signal from third party room ther-
mostats or zone controllers is used to commu-
nicate a heat demand.
The AM10 offers warm weather shutdown
(WWSD) when the outdoor temperature rises
above a custom settable temperature.
To control and stage two boilers, combine the
AM10 with a CM10 module (see page 8).

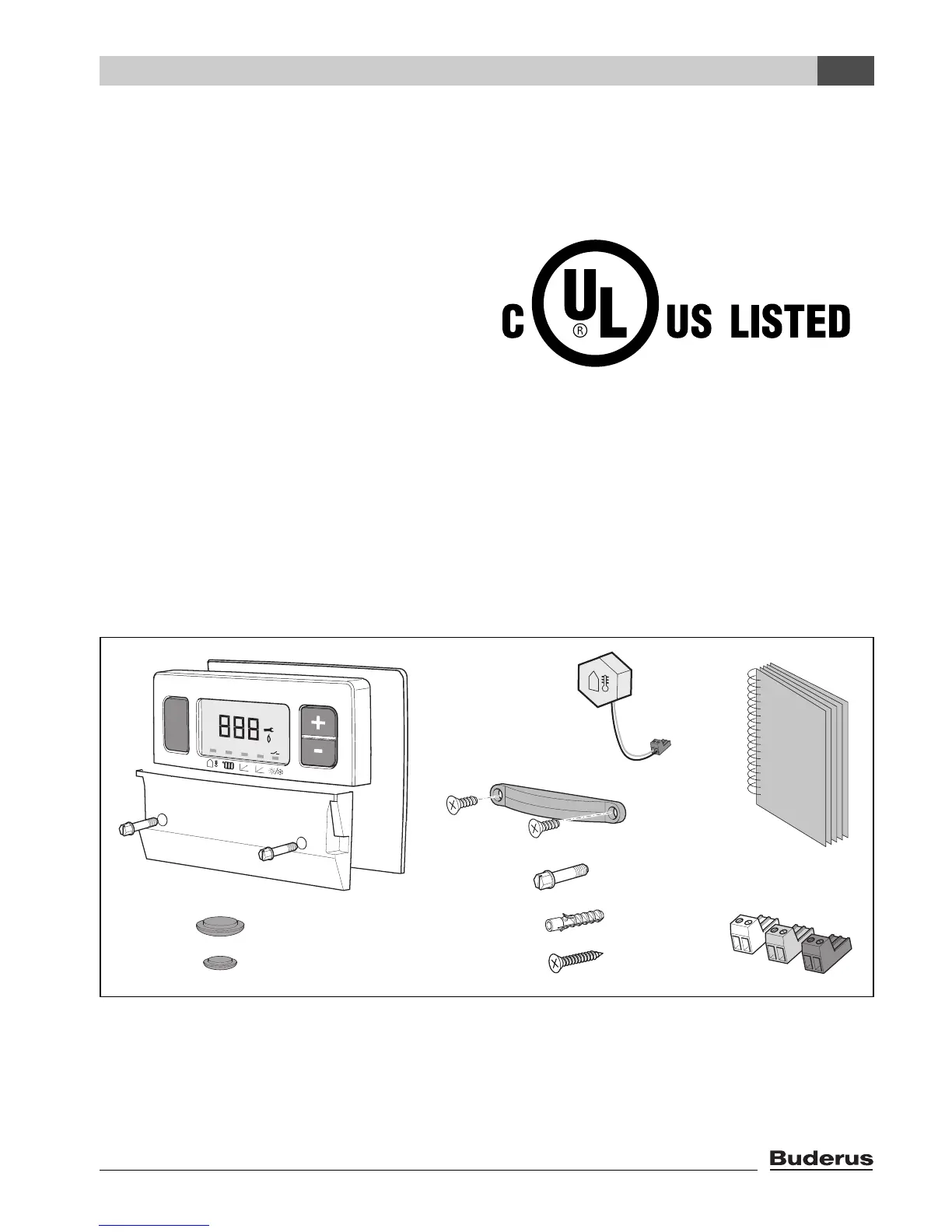

Fig. 1 Set includes
2 x
2 x
2 x
4 x
3 x
mode
°F
