1.5 Multiple Boiler Control
For every two boilers install one AM10 with a
CM10 cascade module. Connect a system
supply sensor to the CM10.
The CM10 will determine if one or both boilers
need to fire and at what modulation. The
CM10 also rotates the boilers for equal run
time. For details on the CM10 module, consult
the CM10 manual.

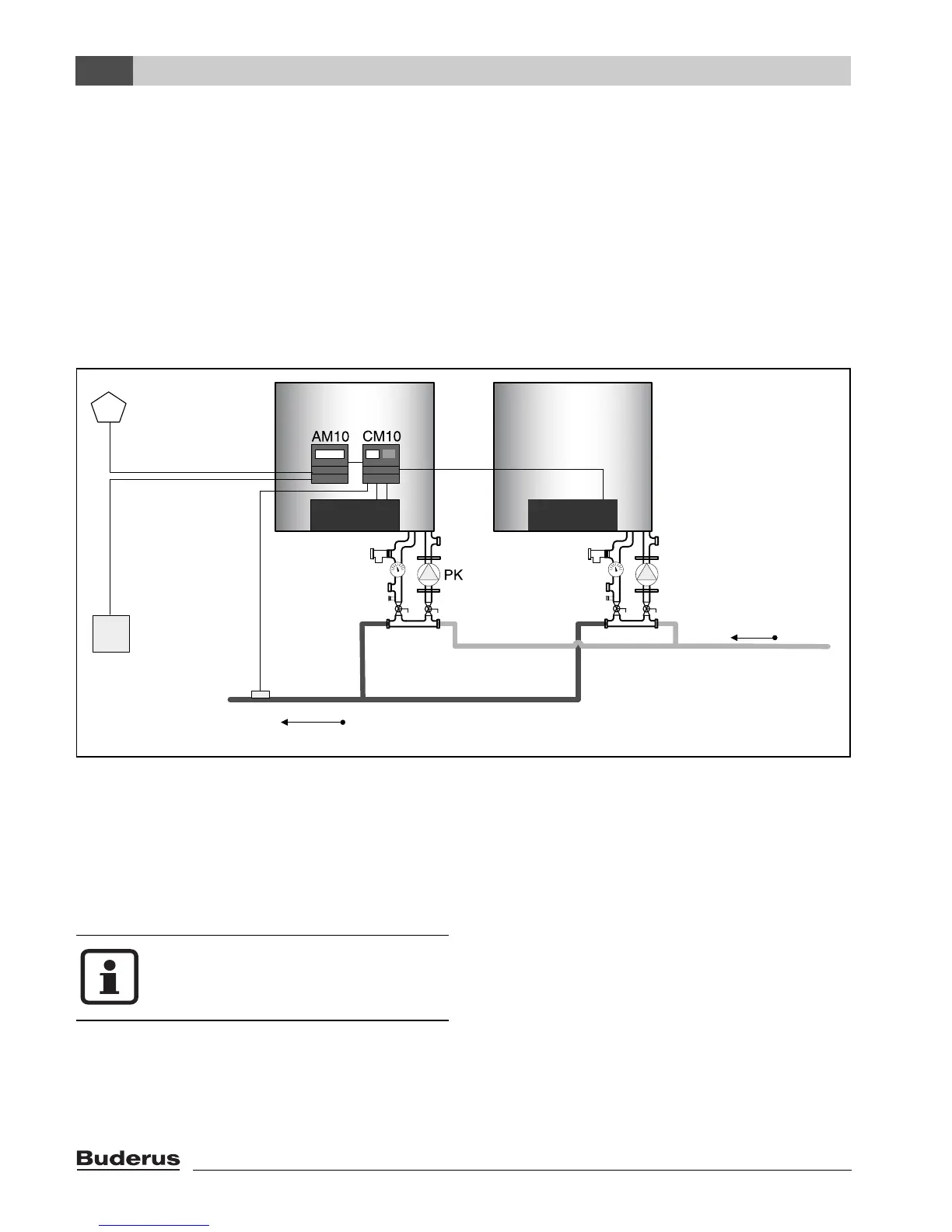

Fig. 8 Plumbing details
1. outdoor sensor
2. pump relay
3. supply sensor
4. supply
5. return
1
2
4
3
5
Do not install RC10 module when
using this configuration.
