Buderus G124X - G234 X Series Specifications; G234 X Performance Data; G234 X Piping and Physical Dimensions

1
-
800
-
283
-
3787
1-800-283-3787
G234X
MEA 217-98-E
CRN No# 7169.7C
G3-0106-184
Approval Numbers
Model G234X/38 G234X/45 G234X/55 G234X/64
Performance Data
Input Rate BTU/Hr. 160,000 187,000 228,000 266,000
DOE Heating Capacity BTU/Hr. 130,000 154,000 188,000 219,000
Net IBR BTU/Hr. 113,000 134,000 163,000 190,000
AFUE % 84.3 84.1 84.8 84.3
Piping Connections
Pressure Drop @ 20° F ∆ T (In WC) 16.1 22.1 25.3 28.9
Vent Size 7" 7" 7" 8"
Damper Included? Yes Yes Yes Yes
Gas Connection ¾" ¾" ¾" ¾"
Physical Dimensions
Number of Burners 3 3 4 5
Boiler Width (W) 25 9∕16" 25 9∕16" 29 ⅛" 32 ¾"
Height 38 ½ " 38 ½ " 38 ½ " 38 ½ "
Dry Weight (lbs.) 487 487 562 684
Water Content (gal.) 6.1 6.1 7.1 8.2

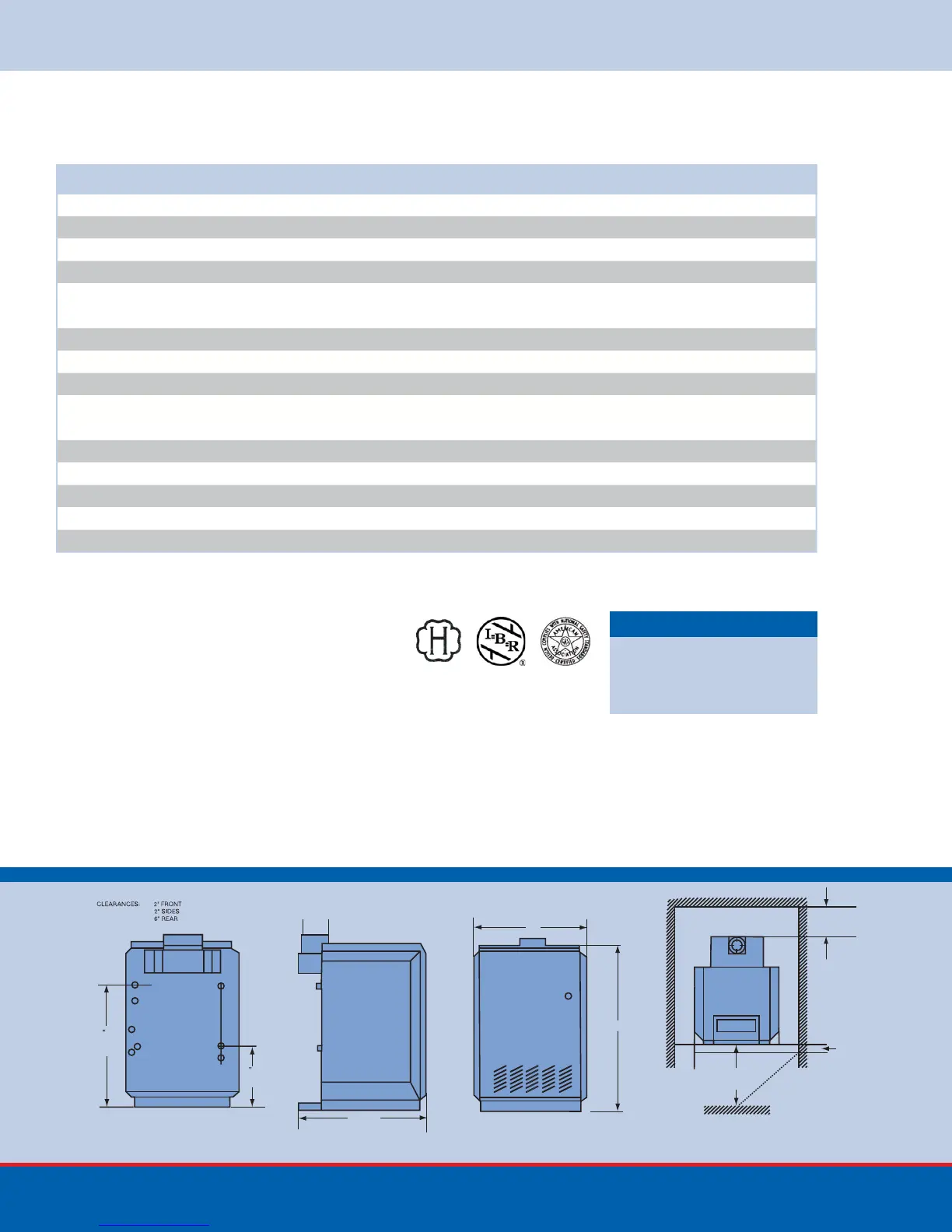

Rear View Side View Front View Top View
28¾
13¾
W
Vent
25 ¾"
40 ¾"
1½" Supply
1" Storage Tank
1½" Return
½" Drain
Allow 33" Access
for Servicing
2" Minimu
m
2" Minimum 2" Minimum
6" Minimum
