Buderus G124X - G334 X Series Specifications; G334 X Performance Data; G334 X Piping and Physical Dimensions

www.buderus.net
www.buderus.net
G334X
Model G334X/73 G334X/92 G334X/116 G334X/132
Performance Data
Input Rate BTU/Hr. 301,000 378,000 476,000 542,000
DOE Heating Capacity BTU/Hr. 249,000 314,000 396,000 451,000
Net IBR BTU/Hr. 217,000 273,000 344,000 392,000
Comb. Eff. (%) 82.7 83.1 83.2 83.2
Piping Connections
Pressure Drop @ 20° F ∆ T (In WC) 32.1 44.1 54.2 60.2
Vent Size 8" 9" 10" 10"
Damper Included? Optional Optional Optional Optional
Gas Connection ¾" ¾" ¾" ¾"
Physical Dimensions
Number of Burners 5 6 7 8
Boiler Width (W) 34 ¾" 41 ¾" 48 ¾" 56"
Height 40 ¾" 40 ¾" 40 ¾" 40 ¾"
Dry Weight (lbs.) 758 930 1,093 1,265
Water Content (gal.) 9.2 11.4 13.5 15.6

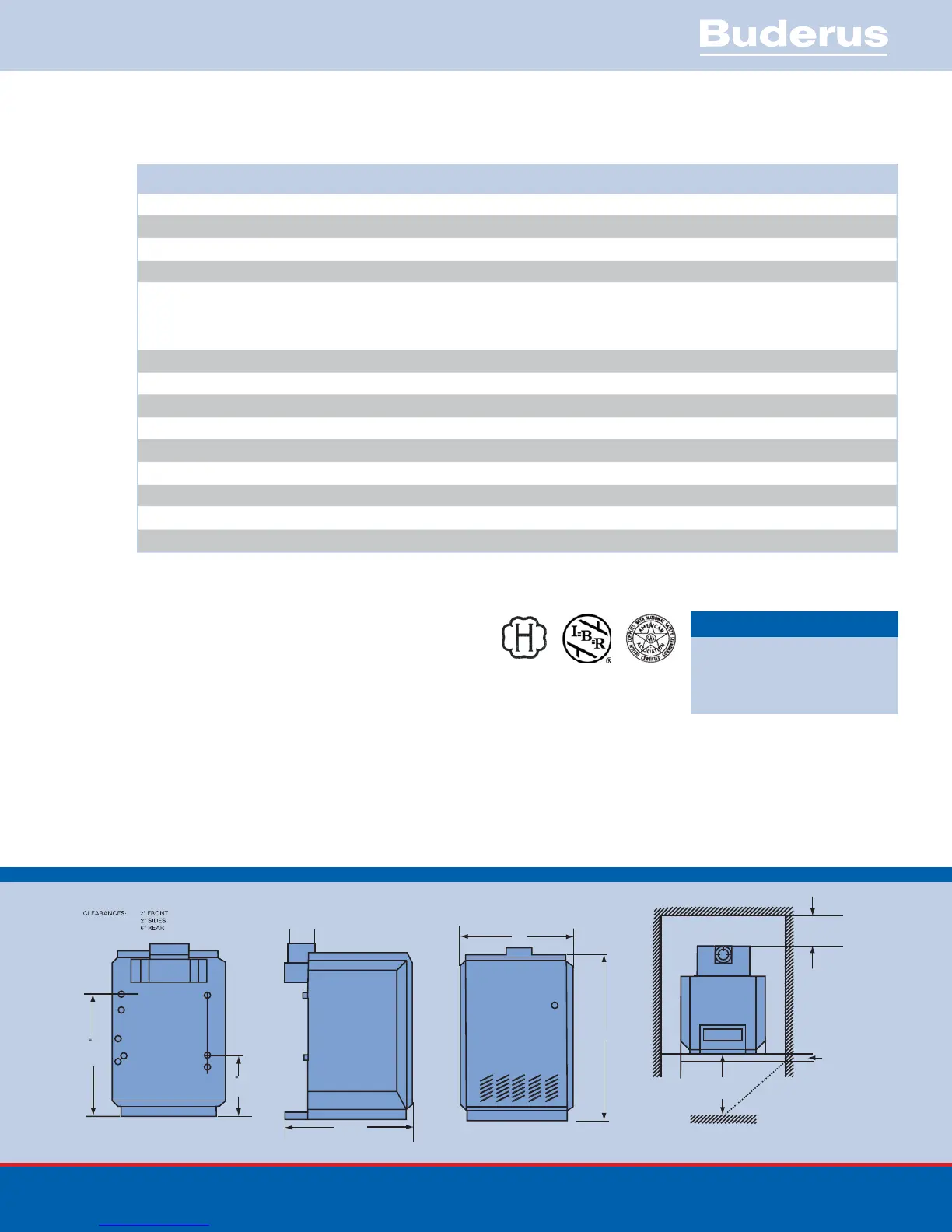

Rear View Side View Front View Top View
28¾
13¾
W
Vent
25 ¾"
40 ¾"
1½" Supply
1" Storage Tank
1½" Return
½" Drain
Allow 33" Access
for Servicing
2" Minimu
m
2" Minimum 2" Minimum
6" Minimum
MEA 217-98-E
CRN No# 7169.7C
G3-0106-184
Approval Numbers
