Operating instructions Logano GA124 SC/G124X II/SP special gas-fired boiler • Issue 04/2005
We reserve the right to make any changes due to technical modifications.
Product description2
2 Product description
The boilers are low temperature gas-fired boilers.
The boilers consist of:
– Automatic ignition module (GA124 SC/G124X II only)
and aquastat
– Logamatic 2107 control (OPTIONAL)
– Boiler jacket and front panel
– Boiler block with insulation
– Burner
The automatic ignition, the aquastat and, if applicable,
the Logamatic 2107 monitor and control all electrical
components of the boiler.
The boiler jacket and invulation prevent energy loss and
provide soundproofing.
The boiler block transfers the heat generated by the
burner to the boiler water.

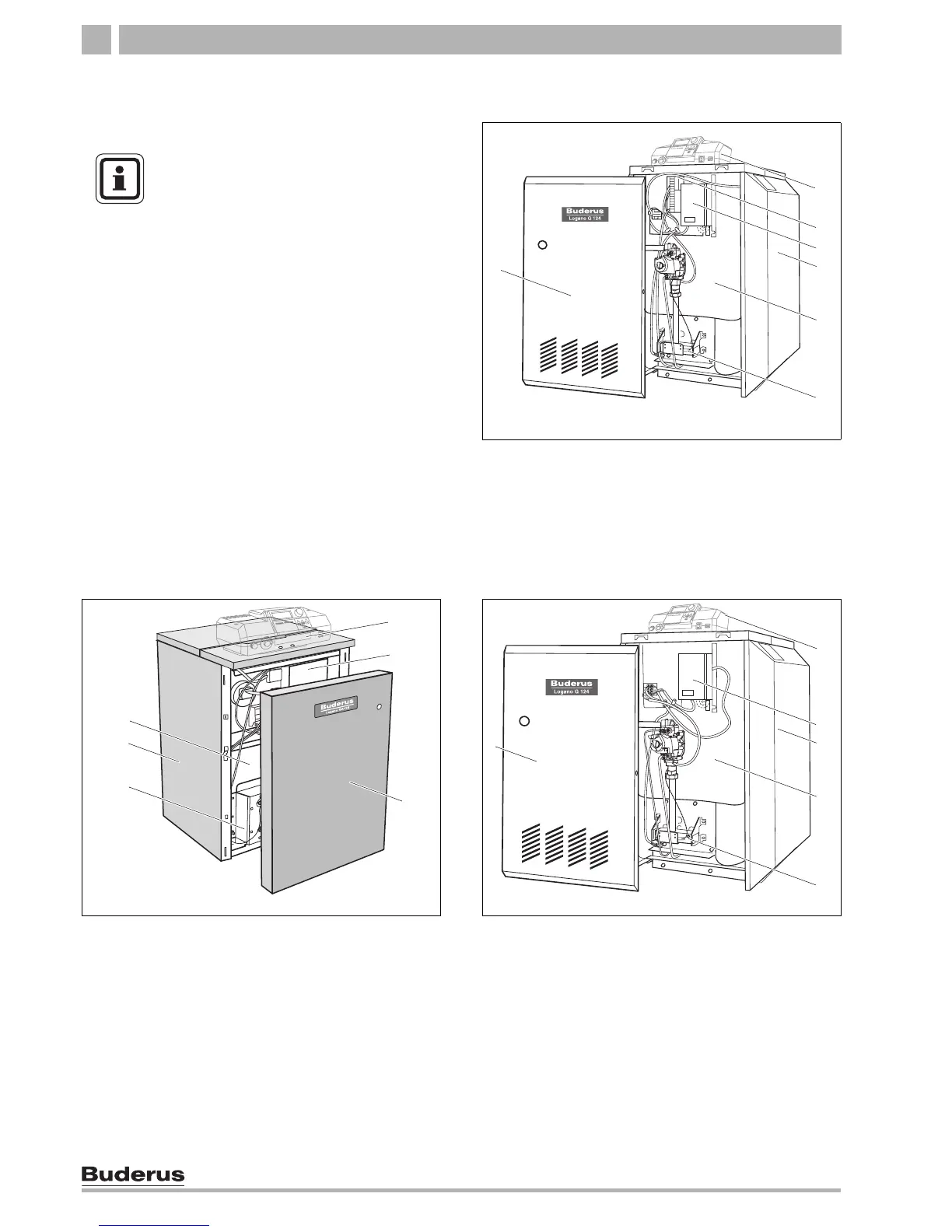

Fig. 1 Logano G124X II boiler
1 Boiler front panel
2 Logamatic 2107 control (optional)
3 Ignition module
4 Aquastat (control unit)
5 Boiler jacket
6 Boiler block with insulation
7 Burner
7
1
6
4
5
3
2
USER NOTE
The boilers are fully functional with the
factory-installed aquastats. A Logamatic
2107 control can be installed in addition to
the factory-installed aquastat.
Fig. 2 Logano G124X SP boiler
1 Boiler front panel
2 Logamatic 2107 control (optional)
3 Aquastat
4 Boiler jacket
5 Boiler block with insulation
6 Burner
1
3
4
5
6
2
Fig. 3 Logano GA124 boiler
1 Burner
2 Boiler jacket
3 Boiler block with insulation
4 Logamatic 2107 control (optional)
5 Aquastat (control unit)
6 Boiler front panel
6
1
3
5
2
4

Buderus Logano G124X II/SP Specifications

General

Model	Logano G124X II/SP
Category	Boiler
Fuel Type	Gas
Heat Exchanger Material	Cast Iron
Operating Pressure	3 bar
