Start-up instructions3
7. Look at the igniter through the viewing glass in the
burner housing.
8. Turn gas valve ON/OFF switch counterclockwise to
PILOT position.
9. Press reset button in all the way and hold.
10. Ignite the pilot burner with the supplied match holder
and a burning match through the viewing glass in the
burner housing.
11. When the pilot burner is burning, continue to hold
the red reset button for about a minute.
12. Release red reset button. The red reset button must
pop up and the pilot burner must continue burning. If
the pilot burner goes out, turn gas fitting ON/OFF
button clockwise to OFF position.

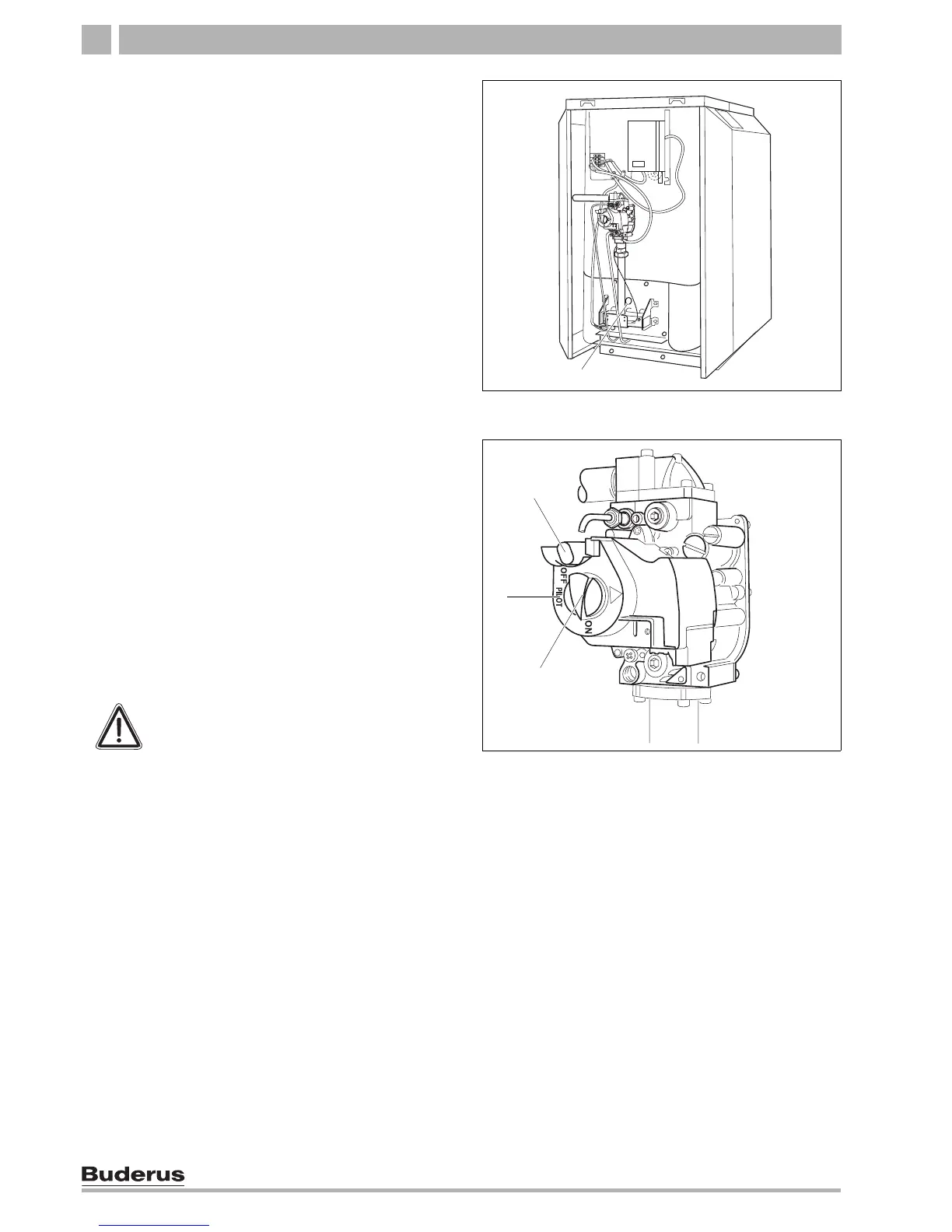

Fig. 8 G124X SP boiler
1 Viewing glass
1
Fig. 9 G124X SP gas valve
1 ON/OFF button (at ON position)
2 "PILOT" position
3 Reset button
1
2
3
WARNING!
RISK TO LIFE
due to poisoning by leaking gas.
If the red reset button does not pop up
when you release it, STOP.
z Close main gas shut-off immediately to
prevent gas from leaking.
z Contact your service technician or gas
supplier immediately and have the fault
repaired.
z If the pilot burner continues to go out
after several attempts, turn the
ON/OFF button on the gas valve to
OFF immediately to prevent gas from
leaking.
