7
Boiler block assembly
Logano G615 - Subject to technical modifications
30

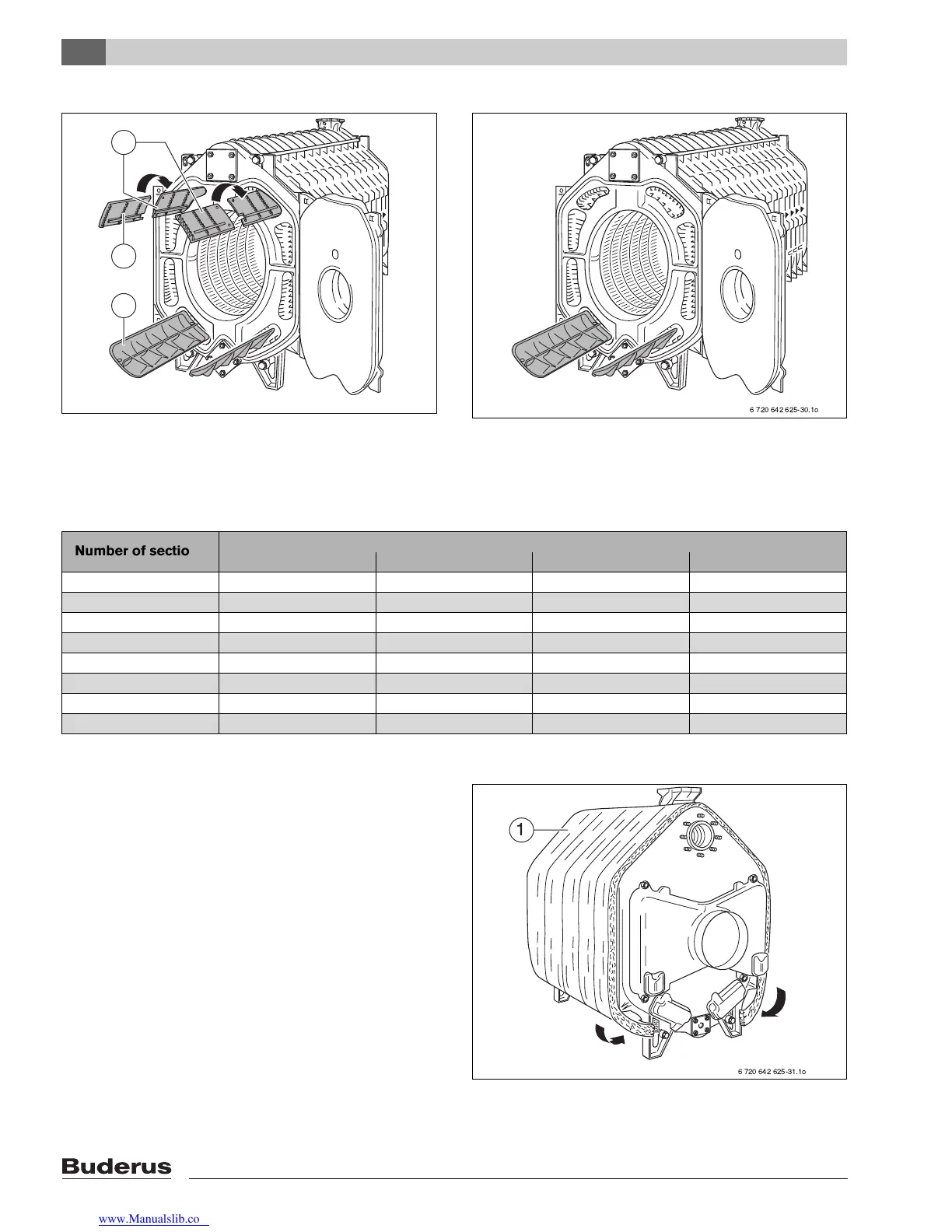

Fig. 32 Insert the flue gas baffles (boiler block with
13 sections)
1 Flue gas baffles with sickle profile (sectional baffle)
2 Flue gas baffles with sickle profile (sectional baffle)
3 Flue gas baffle with wave profile
Fig. 33 Insert the flue gas baffles (boiler block with
15 sections)
1 Flue gas baffle with wave profile
7.10 Installation of the boiler jacket
7.10.1 Fitting the thermal insulation
The thermal insulation provided corresponds to the boiler
size.
B Arrange the thermal insulation on the boiler block as
shown in the diagram in Æ Fig. 35 (the figures to the
left of the boiler blocks represent the number of boiler
sections).
B Push thermal insulation under the boiler block. The
boiler feet are placed in the cut-outs in the thermal
insulation.
Fig. 34 Boiler block with thermal insulation
1 Thermal insulation
2
1
3
6 720 642 625-29.1o
6 720 642 625-30.1o
Number of sections
Number of flue gas baffles
top left top right bottom left bottom right
9
2 × sickle profile 2 × sickle profile 2 × sickle profile 2 × sickle profile
10
2×sickle profile 2×sickle profile 2×sickle profile 2×sickle profile
11
2 × sickle profile 2 × sickle profile 2 × sickle profile 2 × sickle profile
12
1×wave profile 1×wave profile 2×sickle profile 2×sickle profile
13
2 × sickle profile 2 × sickle profile 1 × wave profile 1 × wave profile
14
1×wave profile 1×wave profile 1×wave profile 1×wave profile
15
– – 1 × wave profile 1 × wave profile
16
– – – –
Tab. 11 Number of flue gas baffles
1
6 720 642 625-31.1o
