Installation, Operation and Maintenance Manual Sealed Combustion Gas Boiler Logano GA244 • Issue 02/2004
Buderus Heiztechnik GmbH • http://www.heiztechnik.buderus.de
Installation of the Exhaust and Air Intake System10
10.1 Installation of Horizontal Wall Terminal Body
Read these instructions first completely concerning
horizontal termination body installation and observe the
noted safety precautions.
The horizontal wall terminal body must be installed
through the wall according to previously mentioned
codes and/or local requirements.
z Make a 6" round opening in the outside wall at the
desired location. Refer to the information on the next
page regarding limitations of termination location.
z Remove fresh air connection end from the terminal
body and insert terminal body from the outside
through the round 6" hole in the wall (Fig. 8). Install
fresh air connection piece. Secure wall plate with 4
furnished screws to the wall.
z Insert a 2 or 3 foot straight exhaust pipe (Fig. 9,
Item. 2) from the outside into the wall terminal body.
Slide termination tee on exhaust pipe and seal joint
with silicone (Fig. 9, Item. 3). Orient termination tee
horizontally and observe the manufacturer's
installation instructions.

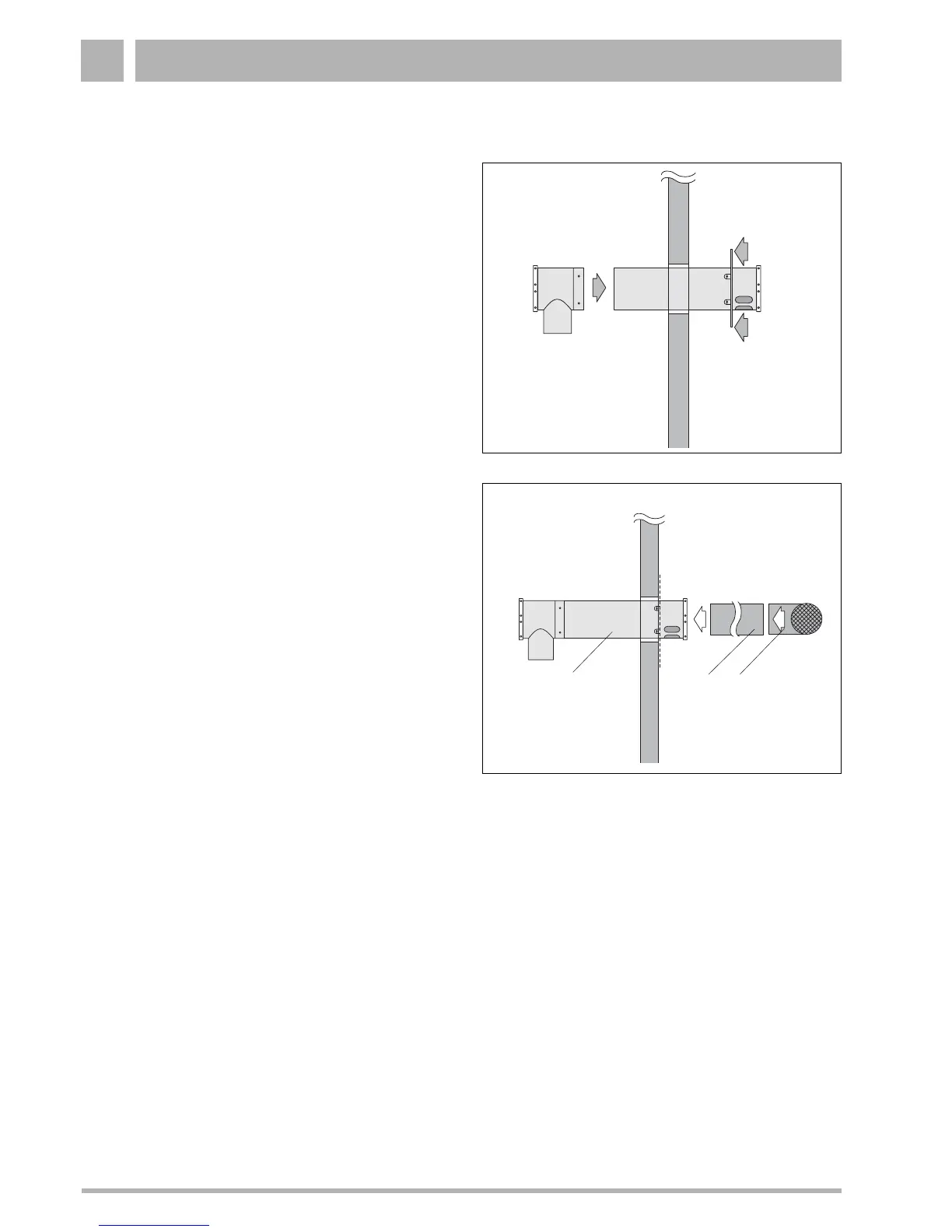

Fig. 8 Installation of horizontal wall terminal body
Fig. 9 Installation of exhaust pipe
Item. 1: wall terminal body
Item. 2: Exhaust vent pipe
Item. 3: Termination tee
12
3
