Positioning the boiler
6
Logano GB125 oil condensing boiler - Technical specifications are subject to change without prior notice.
22
6 Positioning the boiler
This chapter details how to install and position the boiler
inside the boiler room.
6.1 Wall clearances
Where possible, position the boiler with the recommen-
ded wall clearances (Æ Fig. 11). Reducing the minimum
clearances makes the boiler access difficult.
The base or foundation on which the boiler is to stand
must be perfectly flat and level.
At the factory, the burner door hinges are fitted on the
right hand side. You may transfer the hinges to the op
-
posite side.
A minimum clearance of 300 mm between the cover and
the ceiling is required to enable the heat exchanger sys
-
tem to be cleaned from above.
SYSTEM DAMAGE
from frost.
B Install the boiler in a room free from the
risk of frost.

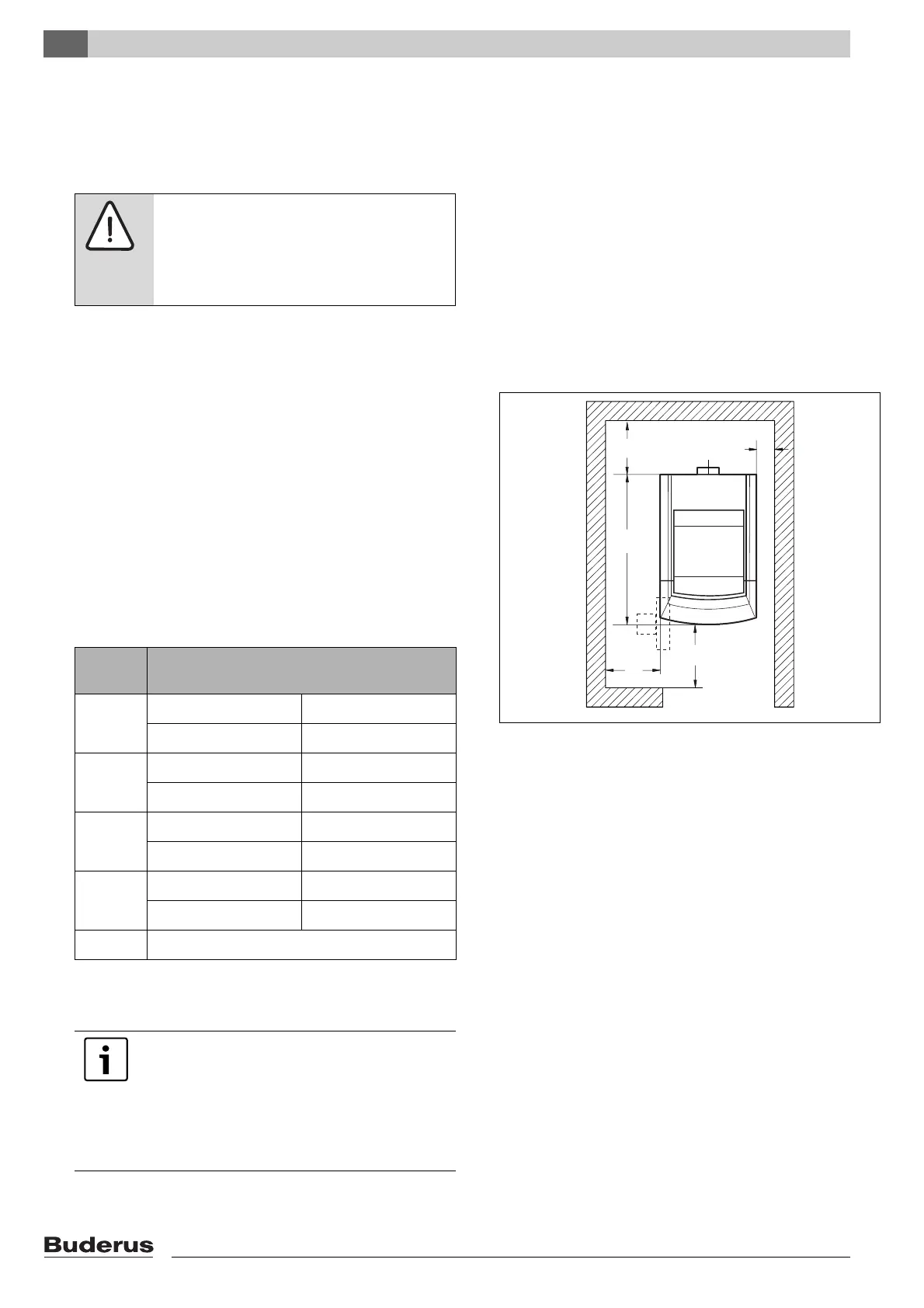

Fig. 11 Wall clearances in the boiler room (boiler positioned
on the left-hand or right-hand side)
7 747 011 453-19.1RS
C
L
B
A
D
Dimen-
sion
Wall distance
A recommended 1000
minimum 700
B recommended 700
minimum 400
C recommended 700
minimum 500
D recommended 400
minimum 150
L see chapter "Specification"
Tab. 21 Recommended and minimum wall clearances
(dimensions in mm)
USER INFORMATION
Observe any additional wall clearances
that may be required for further compon
-
ents, such as the DHW cylinder, pipe con-
nections, flue gas silencer or other
components on the flue side.
