Buderus Logano plus SB615 - Specifications, Dimensions, and Connections

Specifications, dimensions and connections
5
Logano plus SB615 - Technical specifications are subject to change without prior notice.
8
5 Specifications, dimensions and connections
7 747 015 037-01.1RS
L
B
M
L
K
VK
RK1
RK2
AKO
EK/EL
H
AA
Q
AA
H
1
H

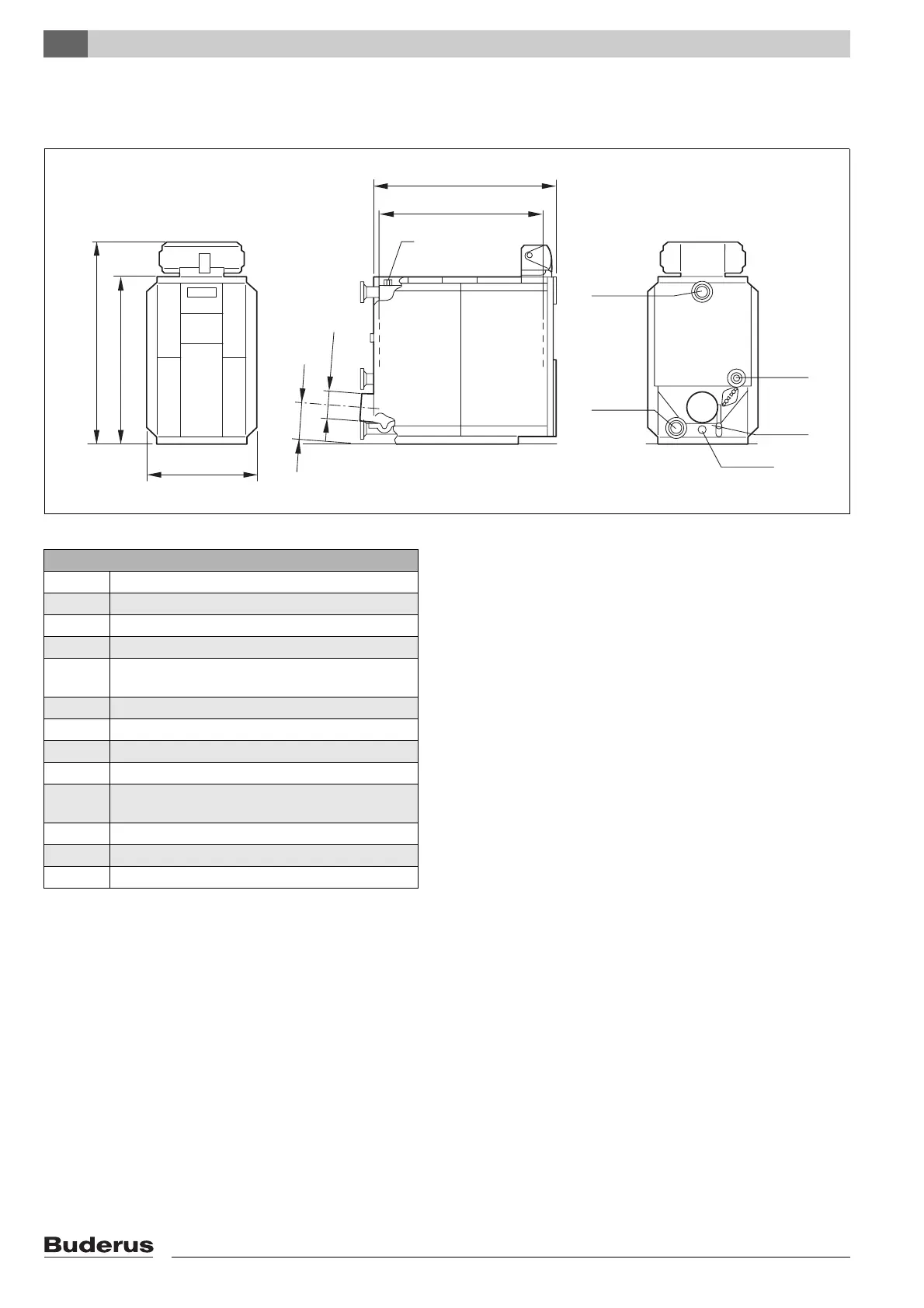

Fig. 1 Specifications, dimensions and connections
Tab. 2
Key to Fig. 1
ØAA Boiler breech inner diameter
AKO Condensate outlet
EK/EL Cold water inlet/drain
H Boiler height excluding controller
H
1
Boiler height including controller
Logamatic 4311/12 controller = H + 10" (235mm)
H
AA
Flue socket height
RK1 Boiler return
RK2 Boiler return
VK Boiler flow
M Sensing point for temperature sensor/immersion
sleeve
L Boiler length inc. outer casing
LK Boiler heat exchanger length
B Boiler width inc. outer casing
