GEN2000 Portable Gasoline Generator
22

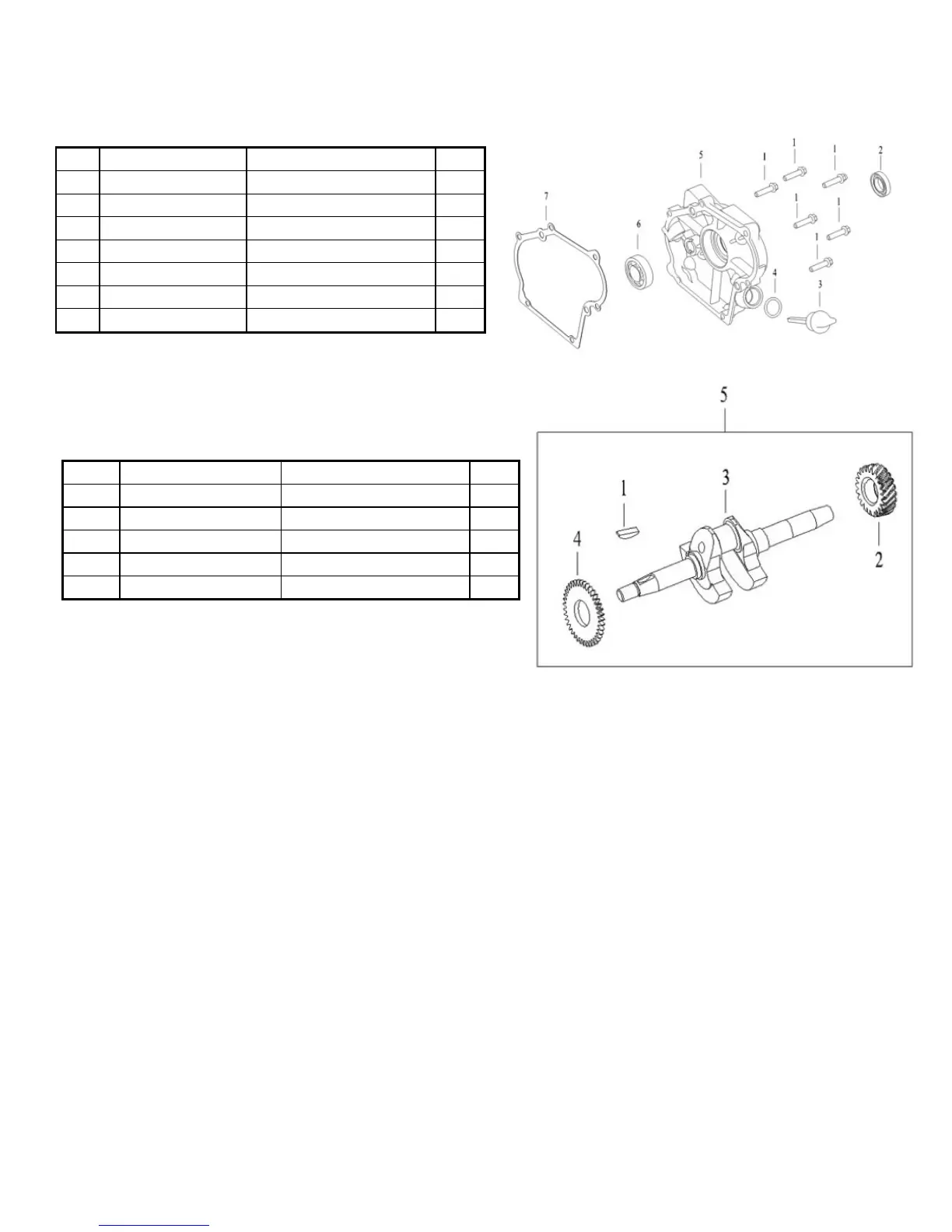

PARTS DIAGRAM
CRANKCASE ASSEMBLY
CRANKSHAFT ASSEMBLY
NO
PART NUMBER
DESCRIPTION
QTY
1
JF156FFH.01-01
Bolt M6x25
6
2
JF152FFH.01.01
Oil Seal 17×30×6
1
3
JF152FFH.01-03
Dipstick
1
4
JF152FFH.01-12
O-Ring
1
5
ZJ151FEH.01-03
Cover, Crankcase
2
6
GB/T276
Bearing
1
7
JF152FFH.01-02
Gasket, Crankcase
2
NO
PART NO
DESCRIPTION
QTY
1
JF152FFH.04-01
Key
1
2
JF152FFH.04B-02
Small gear, Crankshaft
1
3
152FFH-2.01.01-01
Crankshaft
1
4
JF152FFH.04.01-02
Big gear, Crankshaft
1
5
152FFH-2.01.01B
Crankshaft Assy
1
