Buffalo Tools GEN2000 - Page 25

GEN2000 Portable Gasoline Generator
25

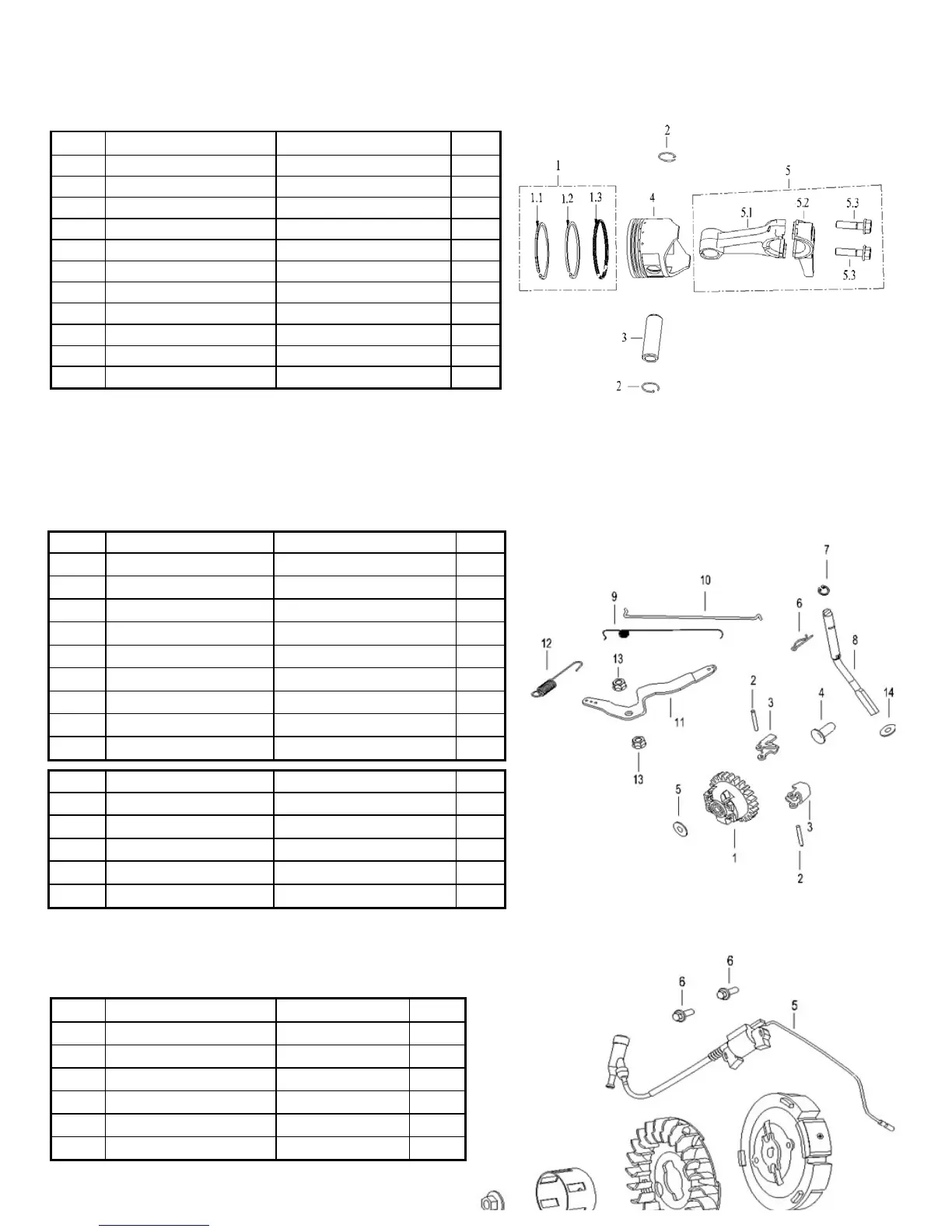

PISTON CONNECTING ROD ASSEMBLY
CENTRIFUGAL ADJUSTMENT (GOVERNOR)
IGINITION SYSTEM
NO
PART NUMBER
DESCRIPTION
QTY
1
JF156FFH.05.01B
Piston ring assy
1
1.1
JF156FFH.05-02B
Ring, First
1
1.2
JF156FFH.05-03B
Ring, Second
1
1.3
JF156FFH.05.01.01B
Oil ring
1
2
JF152FFH.05-05
Circlip, Piston pin
2
3
JF154FFH.05-04
Pin, Piston
1
4
JF156FFH.05-01B
Piston
1
5
JF152FFH.05.02
Connecting rod assy
1
5.1
JF152FFH.05.02-01
Connecting rod body
1
5.2
JF152FFH.05.02-02
Connecting rod cover
1
5.3
JF152FFH.05.02-03
Connecting rod bolt
2
NO.
PARTS NO.
DESCRIPTION
QTY
1
JF152FFH.06.01-01
Adjustment, Centrifugal
1
2
JF152FFH.06.01-03
Pin
2
3
JF152FFH.06.01-02
Block, Centrifugal
2
4
QJ182QDP.06-06
Cover, Push rod
1
5
QJ168QDJ.05-09
Spacer 2
1
6
QJ182QDP.06-02
Circlip
1
7
GB896-86
Block circle
1
8
JF152FFH.06-02
Fork
1
9
JF152FFH.06-05
Spring 2, Tension
1
NO.
PARTS NO.
DESCRIPTION
QTY
10
JF152FFH.06-04
Rod, Tension
1
11
JF152FFH.06-01
Governor pivot bracket
1
12
JF152FFH.06-06
Spring 1, Tension
1
13
GB/T6177.1-2000
Nut M6
2
14
QJ168QDJ.05-08
Spacer 2
1
NO
PART NO
ASSEMBLY
QTY
1
JF152FFH.07.01.01
Flying wheel
1
2
JF152FFH.08-02
Fan wheel
1
3
ZJ151FEH.04-01
Starter canister
1
4
JF152FFH.04-03
Nut, Clamp
1
5
JF152FFH-2.02.01
Ignition coil
1
6
GB/T16674.1-2004
Bolt, M6×20
2
