Your luggage carrier has release levers within the
end of each crossrail support.

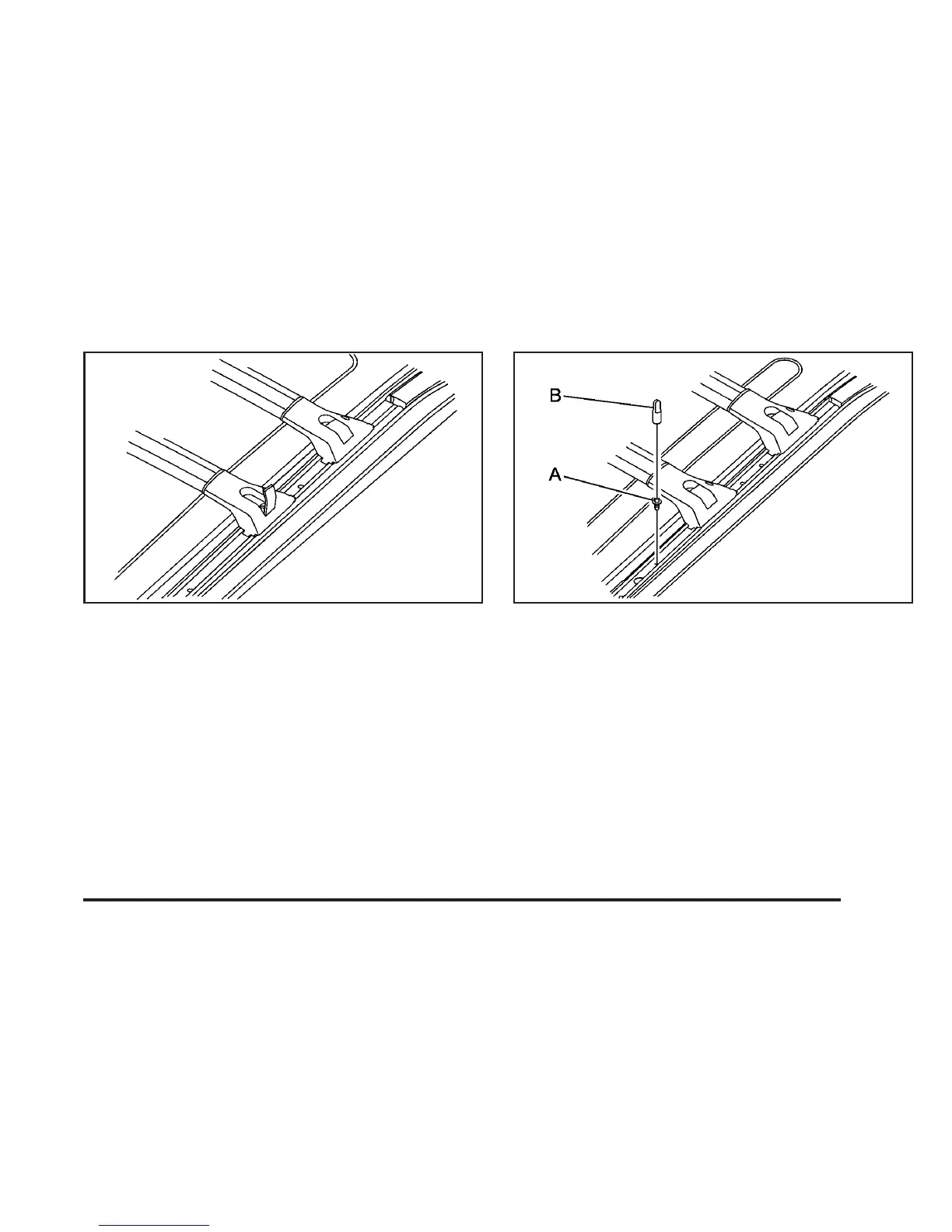

To adjust the crossrail(s), the sunroof stop (A), if
the vehicle has one, must be removed.
To remove the sunroof stop, do the following:
1. Find the tool (B) located in a bag in the glove
box labeled TOOL KIT-ACSRY.
2. Use the tool to remove the screw located in
the side rail assembly in front of the front
crossrail.
3. Repeat for the other side.
4. Put the tool and the screws back in the plastic
bag in the glove box.
163
