9. Tilt the retainer and slip it through the wheel
opening when the spare tire has been
completely lowered.
10. Turn the folding wrench clockwise to raise the
cable back up if the cable is hanging.
Have the hoist assembly inspected as soon as
you can. You will not be able to store a spare tire
using the hoist assembly until it has been
repaired or replaced.
Storing a Flat or Spare Tire and Tools
Storing the Flat Tire (Vehicles without
Stowable Seat and without Rear
Convenience Center)

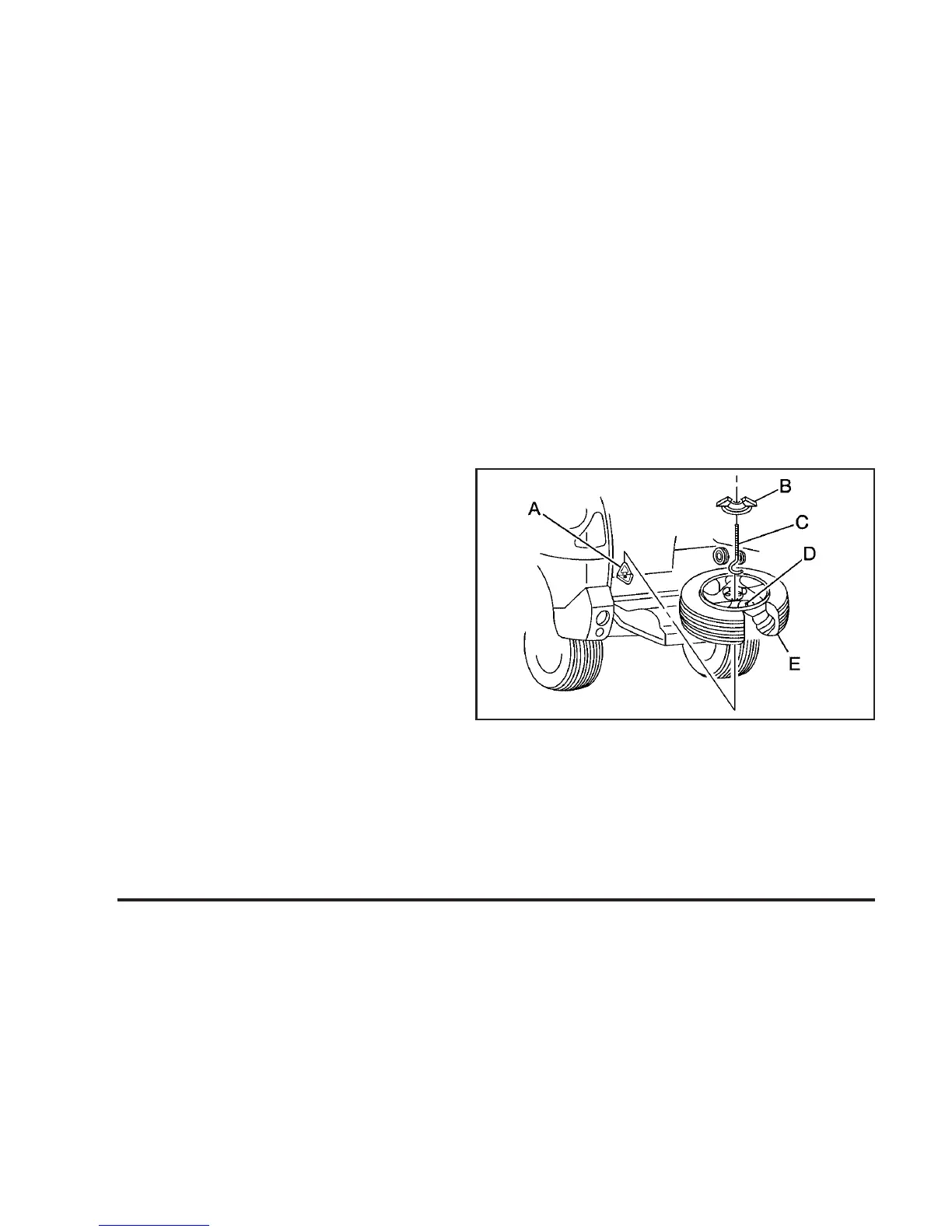

A. D-Ring
B. Wing Nut
C. J-Hook
D. Valve Stem
E. Full-Size Tire
1. Flip up the D-ring located in the rear cargo area.
2. Lay the tire in the rear cargo area of the
vehicle with the valve stem up with the
center hole of the tire over the D-ring.
444
