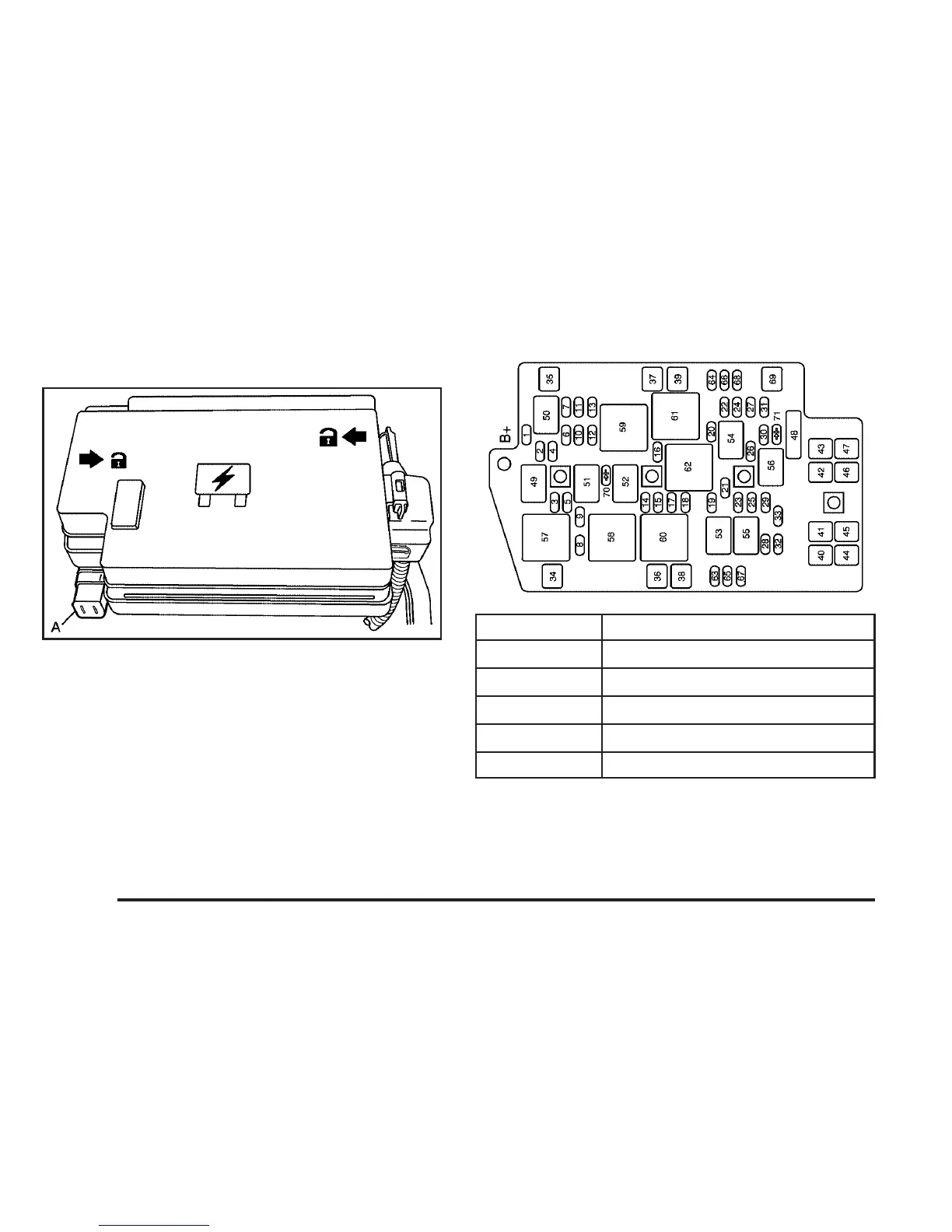

Underhood Fuse Block
This fuse block is located in the engine
compartment, on the passenger’s side of the
vehicle. See Engine Compartment Overview on
page 364 for more information on location.
The back-up lamp relay (A) is located behind and
to the left of the underhood fuse block.
To remove the cover, press the two tabs in and lift
up the cover.
Fuse Usage
1 Fuel Pump
2 Air Conditioning Compressor Clutch
3 Horn
4 Anti-lock Brake System (ABS)
5 Engine Control Module (ECM)
