Page 10
AXIOM
VERSION ##.##
REVERSE FORWARD
TECHNICIAN PROGRAMMING REMINDERS

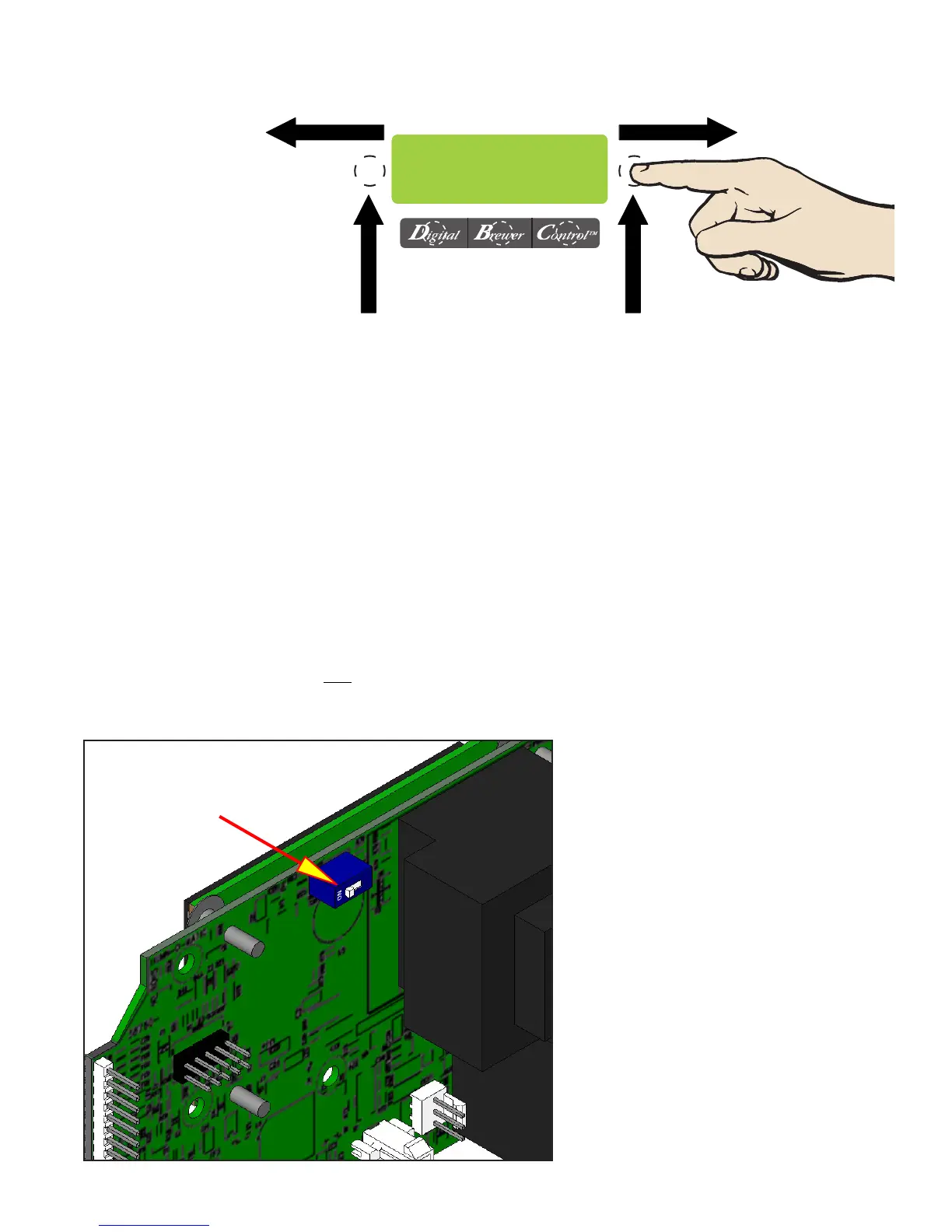

ACCESSING PROGRAM MODES
Press and hold the right hidden switch. The longer you press it, the higher the level you can access. EXAMPLE:
Pressing for a couple seconds enters Level 1. Continuing to press for approximately 5 seconds will access Level
2. Continue pressing for approximately 15 seconds to access Level 3. During program modes, use the right hid-
den switch to advance forward through screens. Use left hidden switch to step backwards through screens.
VIEWING ASSET AND SERIAL NUMBERS
Press left hidden switch to view Asset number. Press and release to view serial number. Press and release again
to view the installed software version.
FACTORY BLOWOUT MODE
When in the main screen, DO NOT press both left and right hidden switches at the same time. The display will
read "FACTORY BLOWOUT" "ON/OFF". WARNING: NEVER activate this mode. It will open the brew and refi ll
valves simultaneously. THIS IS FOR FACTORY USE ONLY! If you accidentally enter this screen, exit out of it
by pressing the "ENABLE BREW ON/OFF" switch.
REVERSE FORWARD
VIEW ASSET/SERIAL # ENTER PROGRAMMING
PROGRAMMING LOCKOUT SWITCH
(Mounted on main control board)
This switch can be set to prevent access
to Level 2. Turn "OFF" the switch to access
Technician (Level 2). Once all the correct brew
settings are programmed, the Technician can
set the switch to the "ON" position to prohibit
anyone from changing the settings. With the
switch in the "ON" position, only Level 1 can
be accessed by store personnel. Technicians
can access Level 1 with the switch in either
position. To enter Levels 2, 3, & 4, press and
hold right hidden switch.
39132 062309
