Page 37
SERVICE TOOLS
This function allows the testing of individual com-
ponents and the ability to check switches for proper
function. This function also tests the Soft Heat server's
status on the brewer (in place or removed), and the
funnel sensor coil's frequency (diagnostic tool for
troubleshooting purposes only).

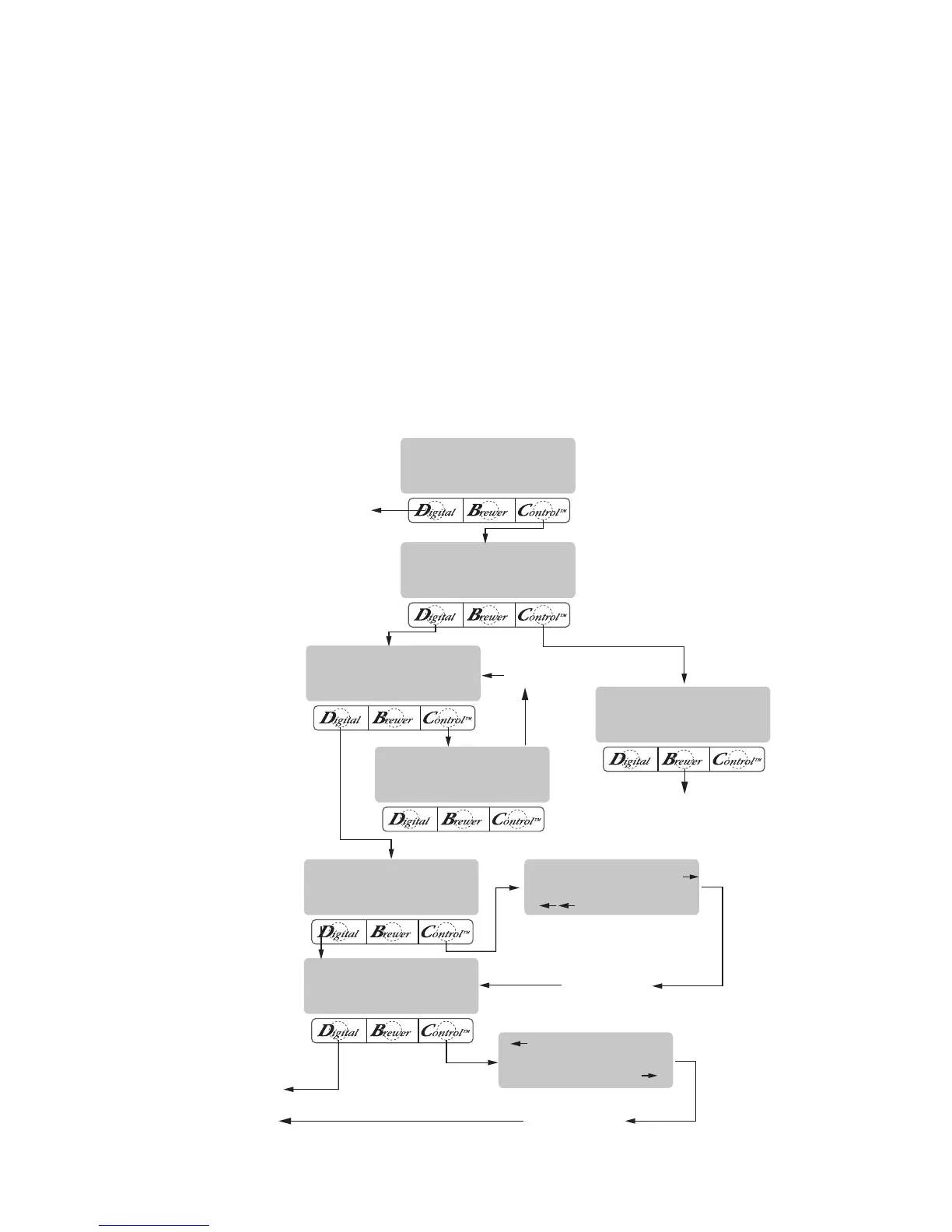

Testing individual components (outputs):
This will allow the operator to test the operation
of individual components and outputs of the brewer.
EXIT TO
NEXT FUNCTION
SCREEN
EXIT TO
NEXT FUNCTION
SCREEN
PRESS AND RELEASE
® SYMBOL
PRESS AND RELEASE
® SYMBOL
PRESS AND RELEASE
® SYMBOL
NEXT COMPONENT
TO BE TESTED
TEST OUTPUTS?
NO YES
TEST SWITCHES?
NO YES
LEFT BREW VALVE
ON NEXT OFF
SERVER REMOVED
IN PLACE
125.0 KHZ. 4
4 125.0 KHZ.
NOTHING PRESSED
TEST FREQUENCY?
NO YES
TEST SERVERS?
NO YES
SERVICE TOOLS?
NO YES
P2311
The components that can be individually tested are as
follows:
Left Brew Valve
Left Bypass Valve
Left Funnel Lock
Left Server
Right Brew Valve
Right Bypass Valve
Right Funnel Lock
Right Server
Refi ll Valve
Tank Heaters
Heater Contactor
PROGRAMMING THE BREWER (cont.)
29877-3 062005
