SERVICE (Cont.)
DC MOTOR AND GRIND CHAMBER - G1MD ONLY
(cont.)

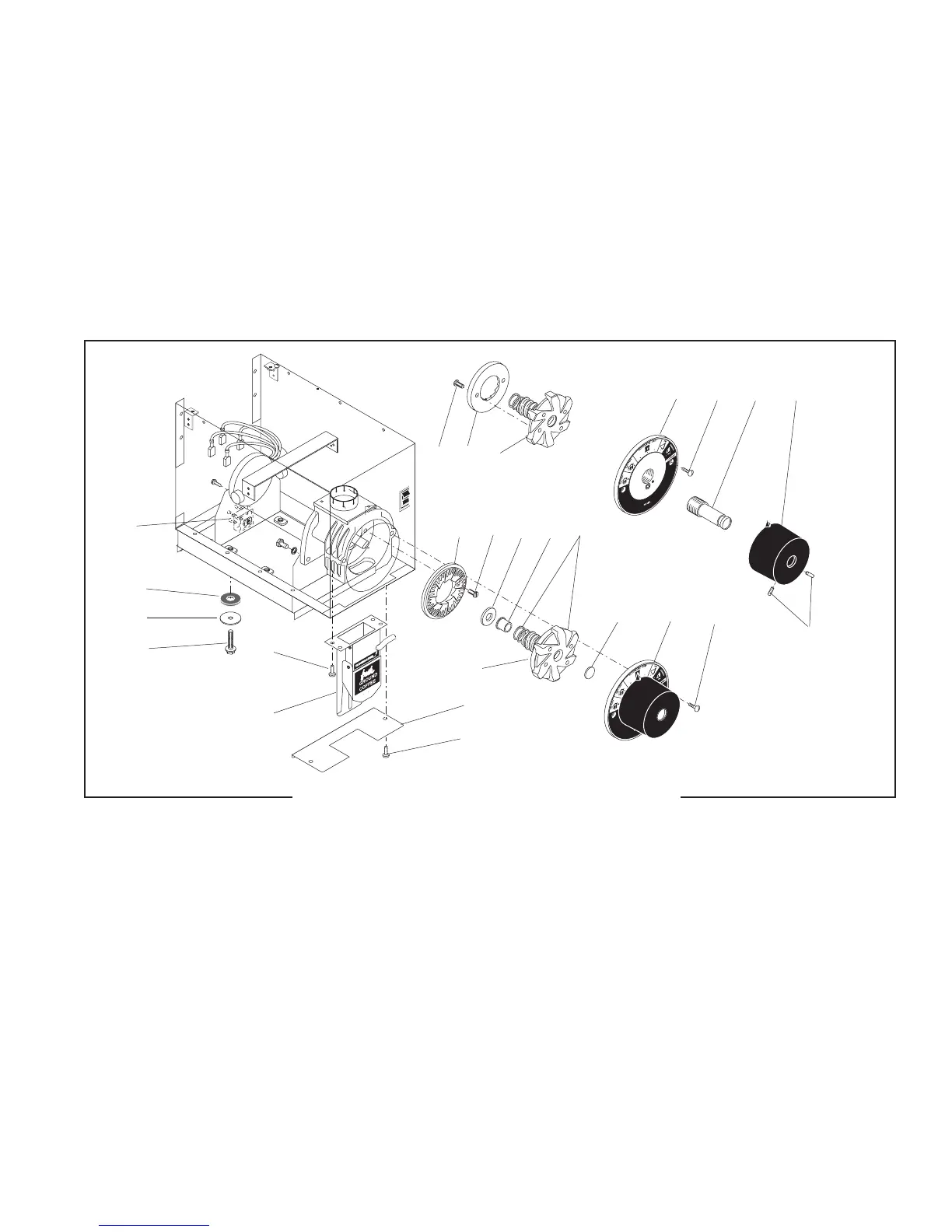

FIG. 8 MOTOR AND GRIND CHAMBER REMOVAL
P1711
5 7 6
16
18 1 19 17
9 8 11 10 3
4 2 1
7
13
12
14
15
22
21
20
23
11. Install burr (7) on burr auger rotor/spring assem-
bly (6) securing with two .250”-20 screws (5).
12. Slide burr auger rotor/spring assembly and burr
(3) onto the motor shaft.
13. Install burr rotor disc (4).
14. Install the adjusting screw w/bearing (19) into the
grind selector dial plate (18).
15. Install grind selector dial plate (18) with adjust-
ing screw w/bearing (19) onto the grind chamber
housing and secure with two .250”-20 screws
(1).
16. Install grind selector knob (17) onto the grind
selector dial plate (18).
NOTE: Refer to ADJUSTMENTS and reset the burrs.
41545 122209
