Bunn MHG Service & Repair Manual

31
SERVICE (Cont.)

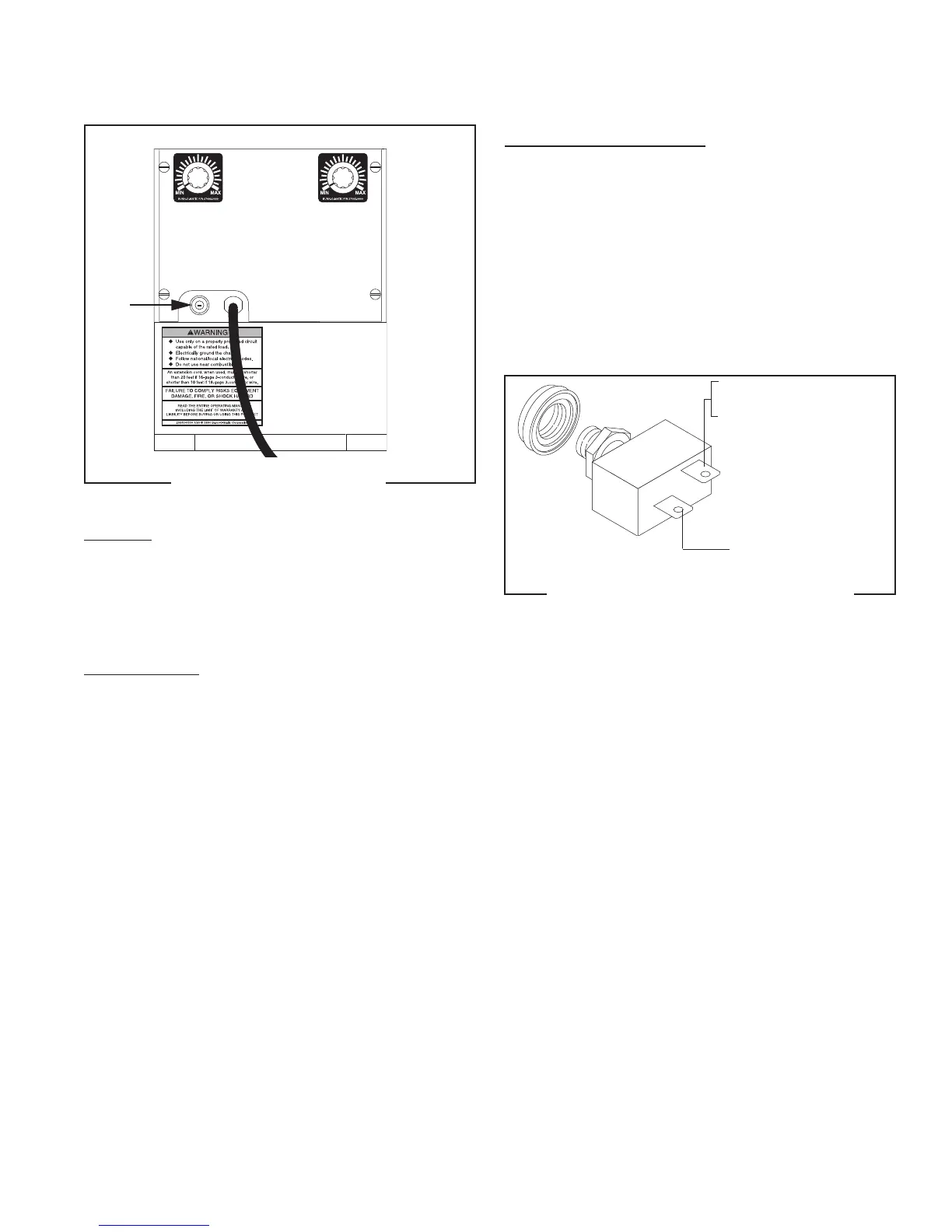

Circuit Breaker (Models LPG, LPG-2E, FPG, FPG-2 DBC)
P1036
FIG. 22 CIRCUIT BREAKER
P1037
FIG. 23 CIRCUIT BREAKER TERMINALS
RED from Motor-LPG-2E
BLK from Start Switch-LPG
BLK from Power Cord
Removal and Replacement:
1. Remove the wires from the circuit breaker.
2. Remove the face nut securing circuit breaker to the
motor support.
3. Remove circuit breaker.
4. Install new circuit breaker in motor support and
secure with face nut.
5. Reconnect the wires.
6. Refer to FIG. 23 when reconnecting the wires.
Location:
The circuit breaker is located on the rear of the
grinder next to the power cord strain relief bushing. The
circuit breaker is not available on Model LPG equipped
with capacitor.
Test Procedure:
1. Disconnect grinder from the power source.
2. Remove the wires from the circuit breaker.
3. Check for continuity between the terminals. Conti-
nuity must be present between the terminals.
If continuity is present as described the circuit breaker
is functioning properly.
If continuity is not present as described, press reset
button and repeat step #3, if continuity is not present
as described, replace the circuit breaker.
41545 122209
