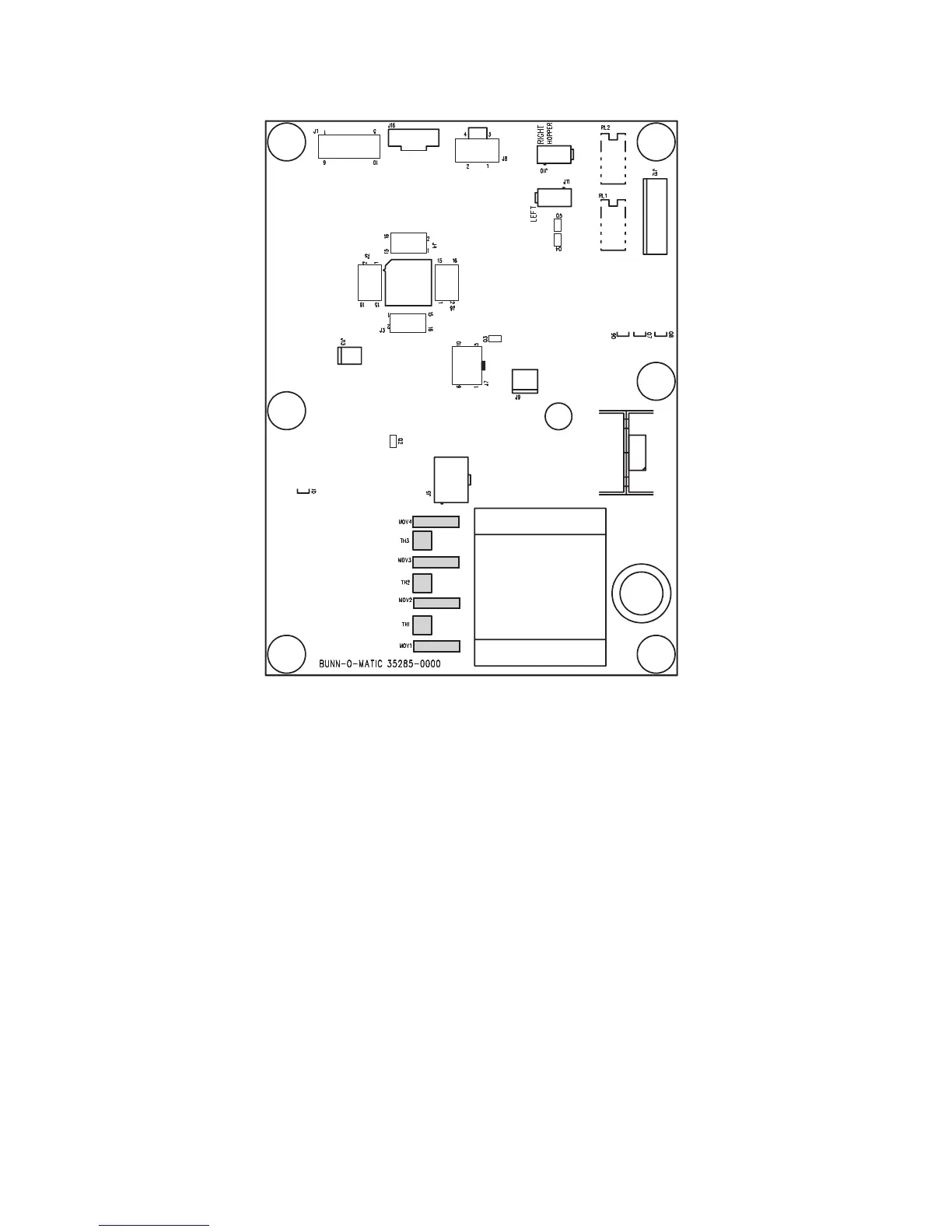

TRIAC MAP for MHG

MOV1 controls Transformer @ J5-4,5,6

TH1 & MOV2 controls Left Gate @ J5-3

TH2 & MOV3 controls Relay @ J5-2

TH3 & MOV4 controls Right Gate @ J5-1

41545 122209
