61

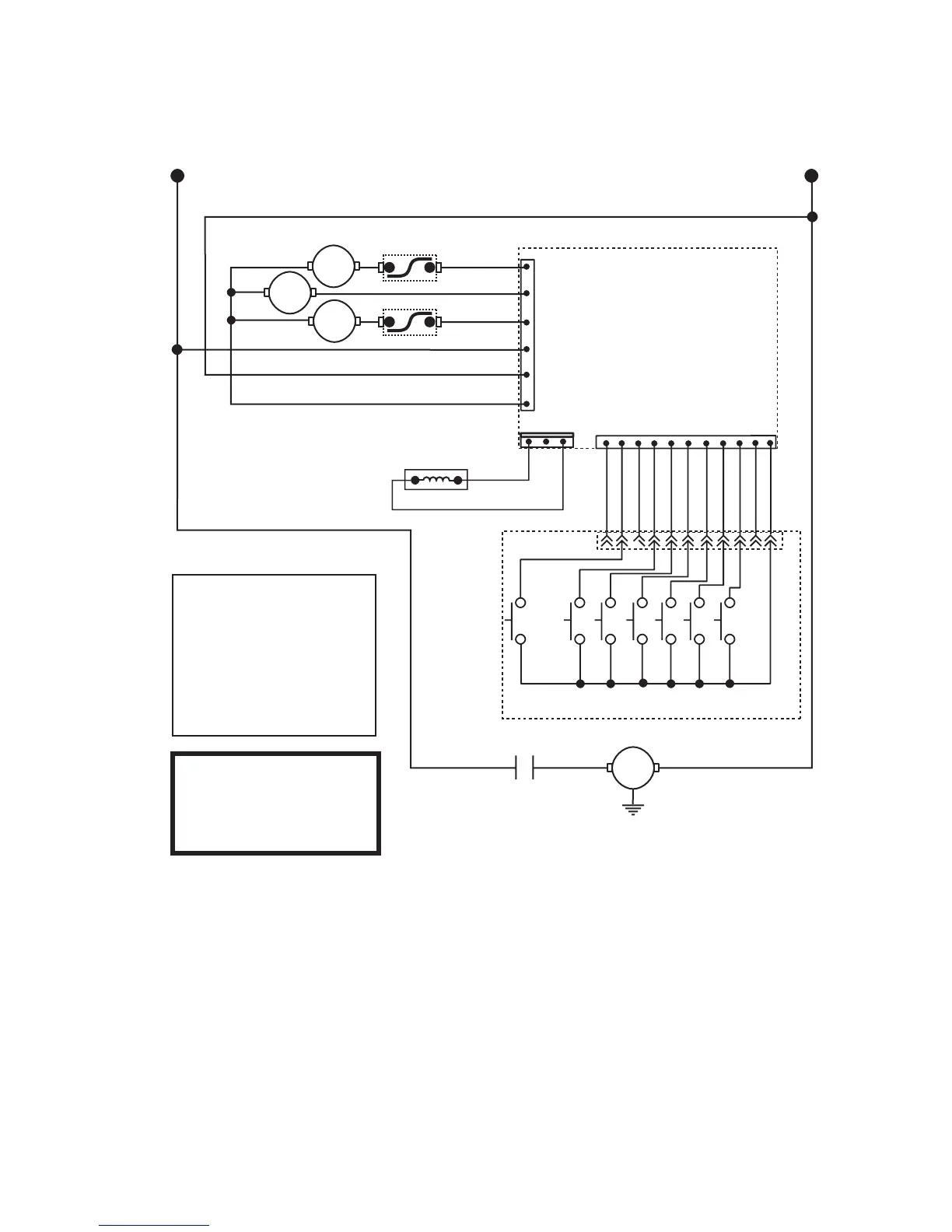

SCHEMATIC WIRING DIAGRAM
G9-2 DBC, G9-2T DBC W/SMART FUNNEL™
N
W
H
I
B
L
K
L1
LEFT GATE
LIMIT THERMOSTAT
LIMIT THERMOSTAT
SOL
SOL
WHI/ORA
WHI/GRN
WHI/YEL
BLK
WHI
RED/BLK
J1-6
J1-6
J8-3
J8-1
J6-10
J6-5
J6-1
CONTROL PC BOARD
COIL
RELAY
RIGHT GATE
1
11
SHIELD
FUNNEL SENSOR
WHI/GRN
WHI/VIO
SWITCH UNIT ASSY
B2
C5
A3
A2
A1
C3
C2
GRINDER MOTOR
M
WHI
BLK
WHI/BLU
RELAY
CONTACTS
33734.0003A 02/05 © 2005 Bunn-O-Matic Corporation
120 OR 230 VOLTS AC
2 WIRE
SINGLE PHASE
50/60 HZ
Switch Unit Assembly Codes
A1 On/Off
A2 Grind
A3 Stop
B2 Hidden Button “Right”
C2 Hot Coffee “Full”
C3 Hot Coffee “Half”
C5 Iced Coffee
WIRING DIAGRAMS
