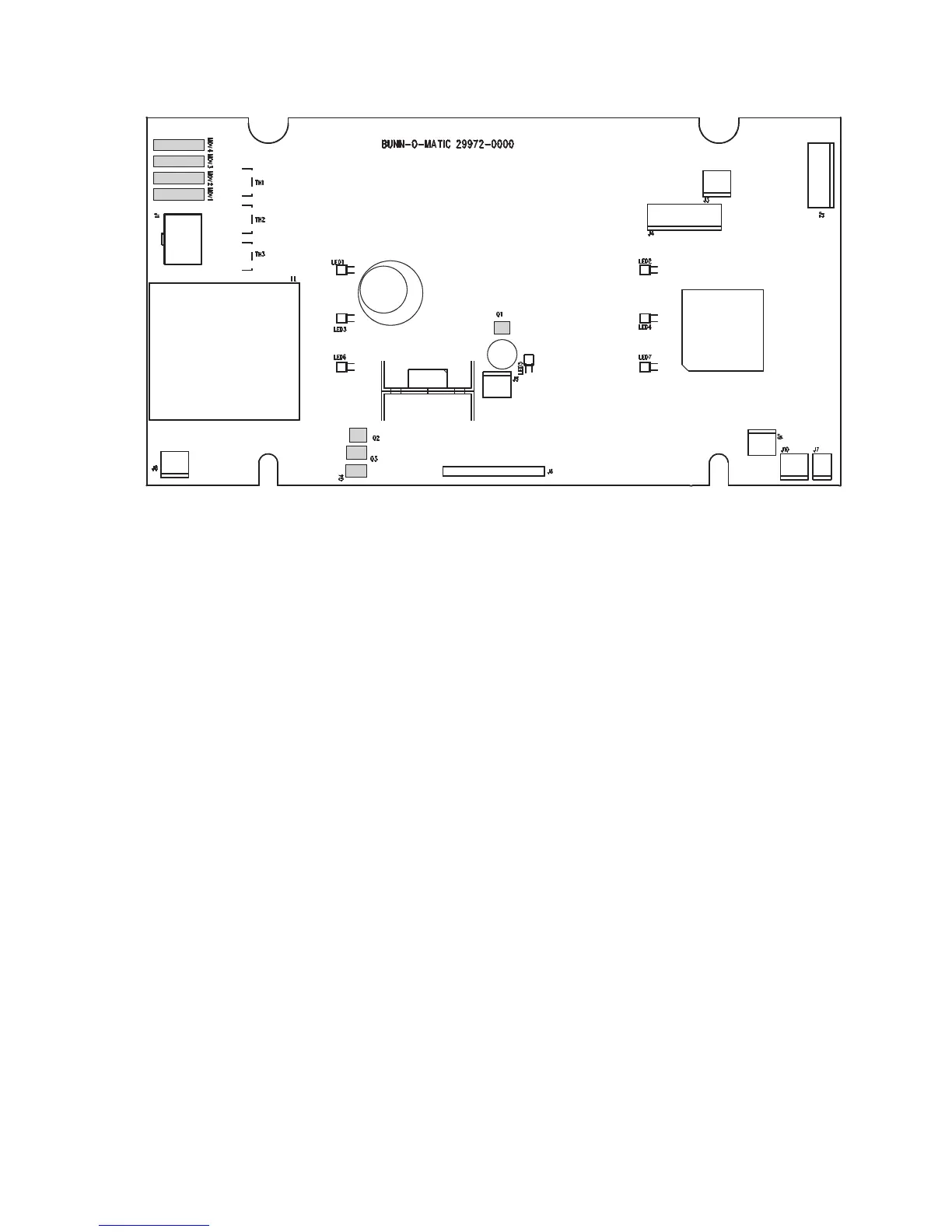

TRIAC MAP for FPG-2 DBC and G9-2 DBC

TH1 & MOV1 controls Left Gate @ J1-1

TH2 & MOV2 controls Relay @ J1-2

TH3 & MOV3 controls Right Gate @ J1-3

MOV4 controls Transformer @ J1-4,5,6

41545 122209
