Bunn MHG Service & Repair Manual

79
WIRING DIAGRAMS
N
L1
LEFT
GATE
LIMIT
THERMOSTAT
LIMIT
THERMOSTAT
SOL
WHI/ORA
WHI/ORA
WHI/GRN
WHI/YEL
WHI/YEL
RED
WHI
WHI
WHI
WHI
WHI/BLK
WHI
WHI
WHI
WHI
GRN GRN
WHI
WHI
J1-6
J1-1
J6-10
J6-5 J6-1
CONTROL PC BOARD
RELAY
RIGHT
GATE
1
11
SHIELD
SWITCH UNIT ASSY
B2
C4
C5
C6
A2
A1
C3
C2
C1
WHI
RED
RED
RED
BLU
BLK
RED
RED
Switch Unit Assembly Codes
A1 Grind
A2 Stop
B2 Hidden Button "Right"
C1 Large Batch Size "Left"
C2 Medium Batch Size "Left"
C3 Small Batch Size "Left"
C4 Large Batch Size "Right"
C5 Medium Batch Size "Right"
C6 Small Batch Size "Right"
M
+
–
AC
AC
RECT
3
AMP
GRN
6
8

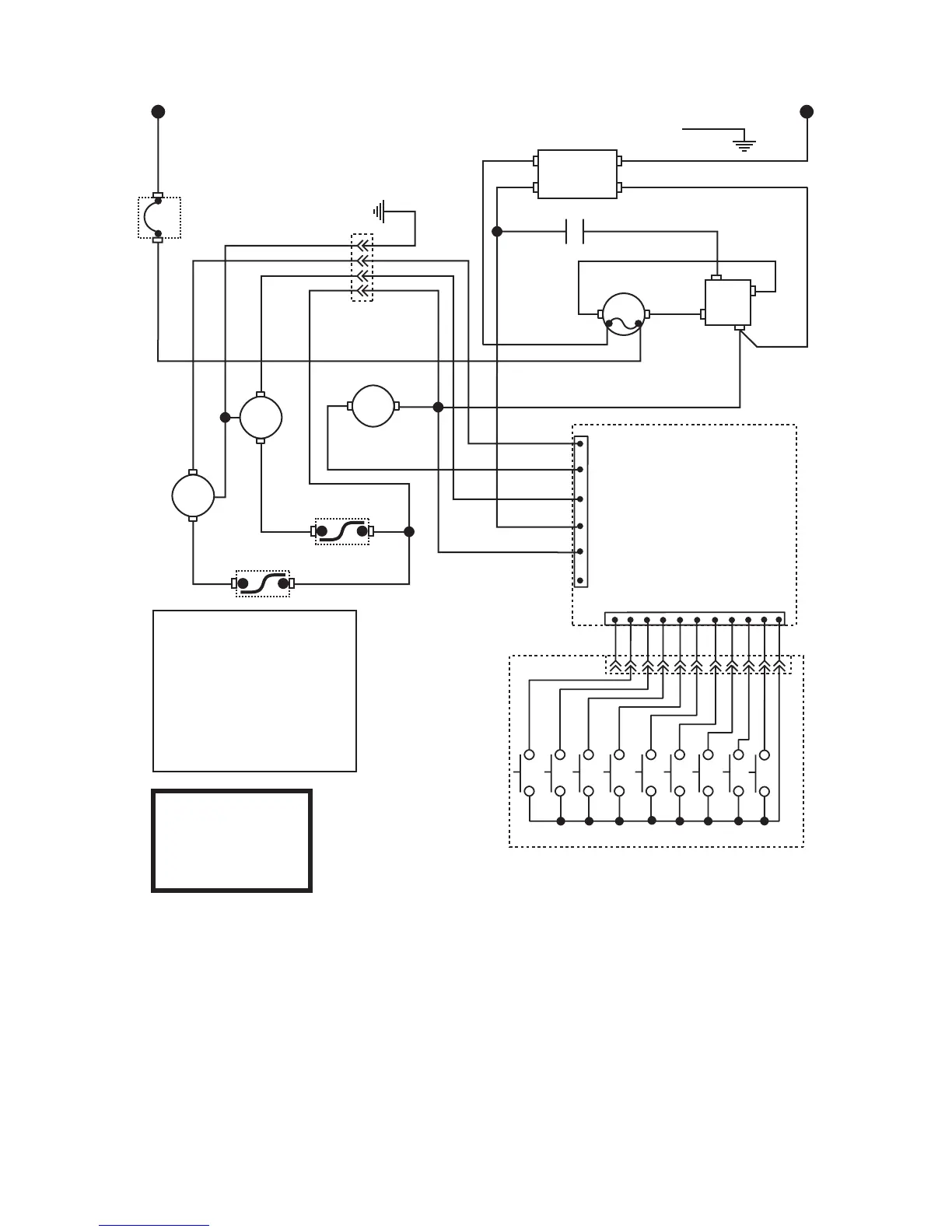

SCHEMATIC WIRING DIAGRAM
FPG-2A DBC
EMI FILTER
36706.0001B 04/06 © 2005 Bunn-O-Matic Corporation
230 VOLTS AC
2 WIRE
SINGLE PHASE
50 HZ
NOT A PURCHASED SCHEMATIC
FOR REFERENCE ONLY
SOL
COIL
1
41545 122209
