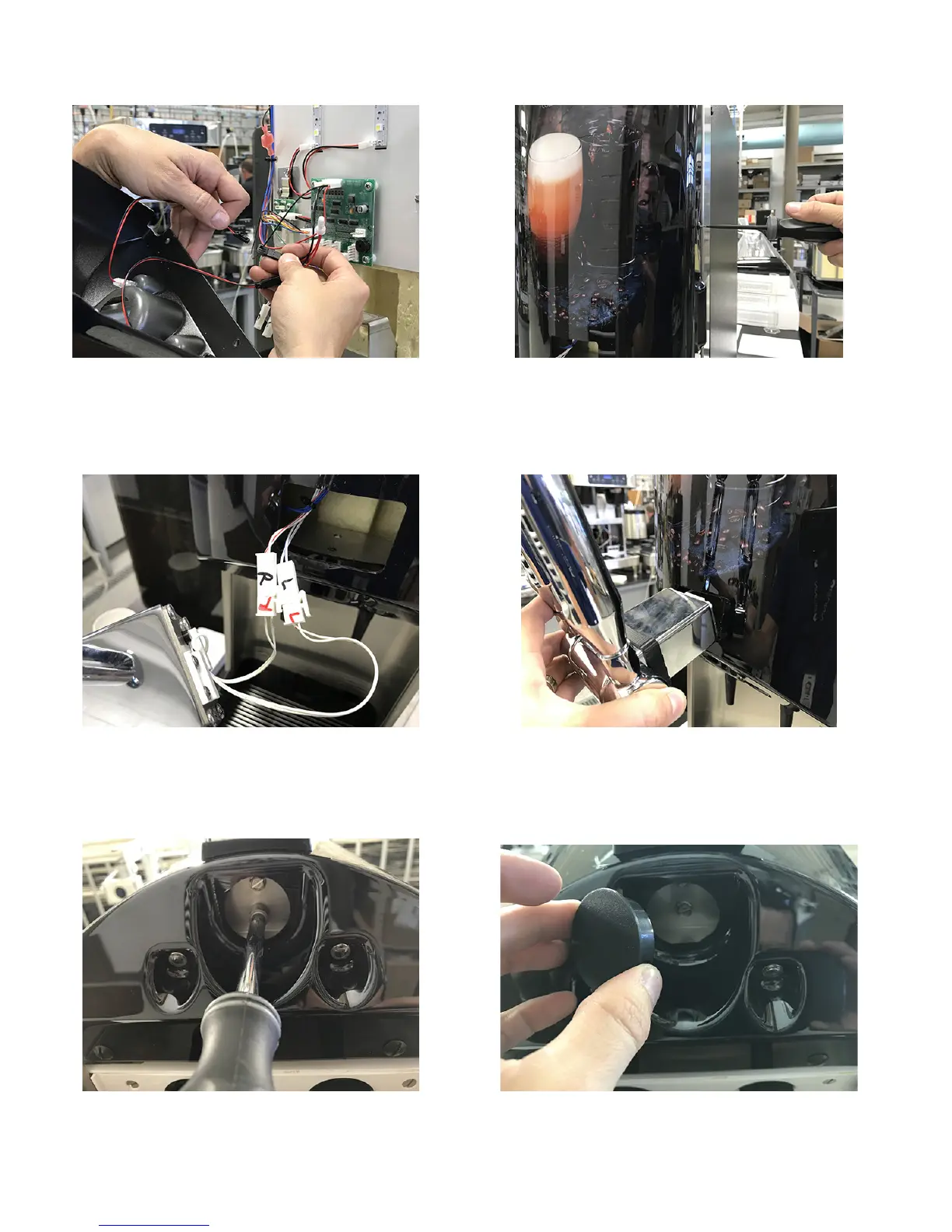

1. Install door cover by first plugging the LEDs from
the door into the black connectors with RED/BLACK
wires
DOOR COVER INSTALLATION
2. Install door cover and secure the door cover us-
ing 5 screws provided.
3. Connect tapper handle switches to harness in
door. NOTE: Connect left switch to blue wires and
right switch to red wires.
5. Mount tapper handles through bottom of door as
shown using the screws provided.
6. Install black hole cover as shown.
4. Slide tapper handle into door assembly.
54261.0001 090817
