Page 20
Procedure to adjust the fl ow rate setting:
1. Press and hold upper right hidden switch until the
display reads SET NEW RECIPES. Release switch.
Press and release upper right hidden switch until
the display reads BYPASS OZ/M. The number
represents what the brewer thinks is the fl ow rate
of the bypass valve in ounces per minute.
2. If the actual fl ow rate of the bypass valve is known,
but is different than the number on the display, use
the (-) and (+) pads to enter the correct fl ow rate
in ounces per minute.
3. When fi nished, press and release the DONE pad.
This saves the new setting and advances to the
next function screen, CALIBRATE FLOW. Another
alternative is to press and release the
pad lo-
cated on the front switch panel to exit the BYPASS
OZ/M function and return to the MAIN SCREEN.
CALIBRATE FLOW
This function allows the operator to enter the actual
fl ow rate of the sprayhead and the bypass by dispens-
ing both separately for one minute. The volumes are
then entered in ounces per minute (OZ/M).
Procedures to calibrate the sprayhead fl ow rate:
1. Place a container, accurately graduated in ounces,
and with a minimum capacity of 60 ounces, beneath
the funnel on the brewer.
2. Press and hold upper right hidden switch until the
display reads SET NEW RECIPES. Release switch.
Press and release upper right hidden switch until
the display reads CALIBRATE FLOW ?.
3. Press and release YES to advance to the SPRAY
HEAD CAL? function screen. (Pressing NO in the
CALIBRATE FLOW screen will advance to the next
function screen, BREW COUNTERS).
4. Press and release the YES pad. The display should
read CONTAINER READY? If the container is under
the funnel, press YES. The display should read
CALIBRATE SPRAY .. PRESS BREW TO START.
5. Press and release the
pad. The display should
read CALIBRATE SPRAY .. 60 SEC TO FINISH. The
60 second timer on the display will count down to
zero. When the counter reaches zero, the display
will change to LEFT or RIGHT OZ., along with a
number signifying ounces per minute.
6. Measure the amount of water in the container and
using the (-) or (+) pads, adjust the amount on
the display to match the amount in the container.

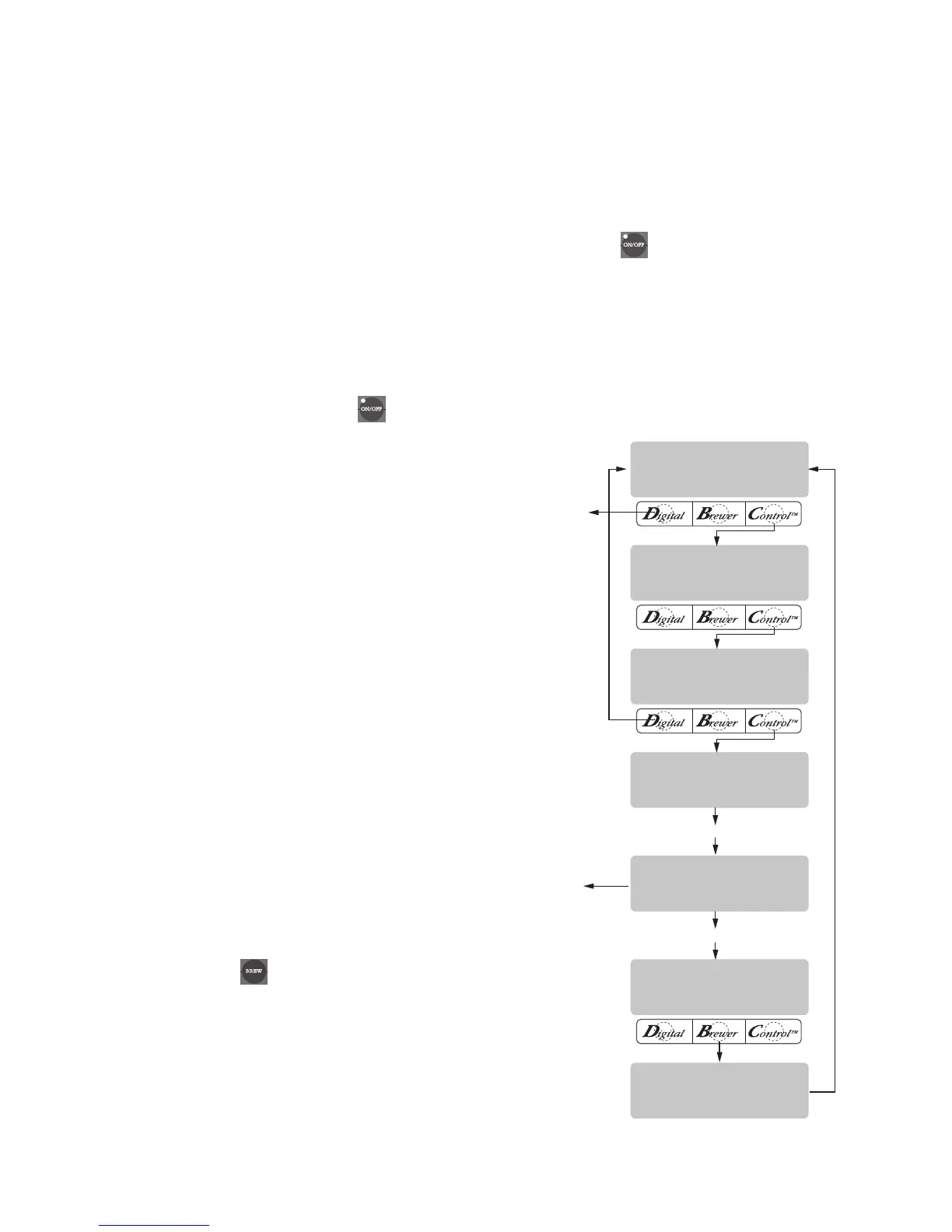

P2307
PROGRAMMING FUNCTIONS - (cont.)
NEW SPRAY FLOW
XX.X OZ/M
ENTER OZ XX.X
(-) DONE (+)
CALIBRATE FLOW?
NO YES
SPRAYHEAD CAL?
NO YES
CONTAINER RDY?
QUIT YES
CALIBRATE SPRAY
PRESSBREWSTART
CALIBRATE SPRAY
60 SEC TO FINISH
COUNTS DOWN
TO ZERO
AFTER 1 MINUTE
BREW PRESSED
EXIT TO THE
NEXT FUNCTION
SCREEN
Then press DONE.
7. The display should now read NEW SPRAY FLOW,
along with the correct fl ow rate of the sprayhead
in ounces per minute. After about 5 seconds,
the display will return to the CALIBRATE FLOW
screen.
8. To exit the CALIBRATE FLOW program, press NO
to advance to the next function screen, or press
and release the
pad located on the front switch
panel to exit the CALIBRATE FLOW function and
return to the MAIN SCREEN.
34025.1 011006
