5.7 Electrical connection of the cable plug
DANGER!
Risk of injury due to electrical shock.
▶ Before reaching into the device / equipment switch o the power
supply and secure to prevent reactivation.
▶ Observe applicable accident prevention and safety regulations for
electrical equipment.
If the protective conductor is not connected, there is a risk of electric
shock.
▶ Always connect protective conductor and check electrical continu-
ity coil and body.
Authorized cable plug e.g.
Type 2508 or other suitable cable
plug in accordance with
DIN EN 175301-803 Form A
max. 1 Nm
Seal

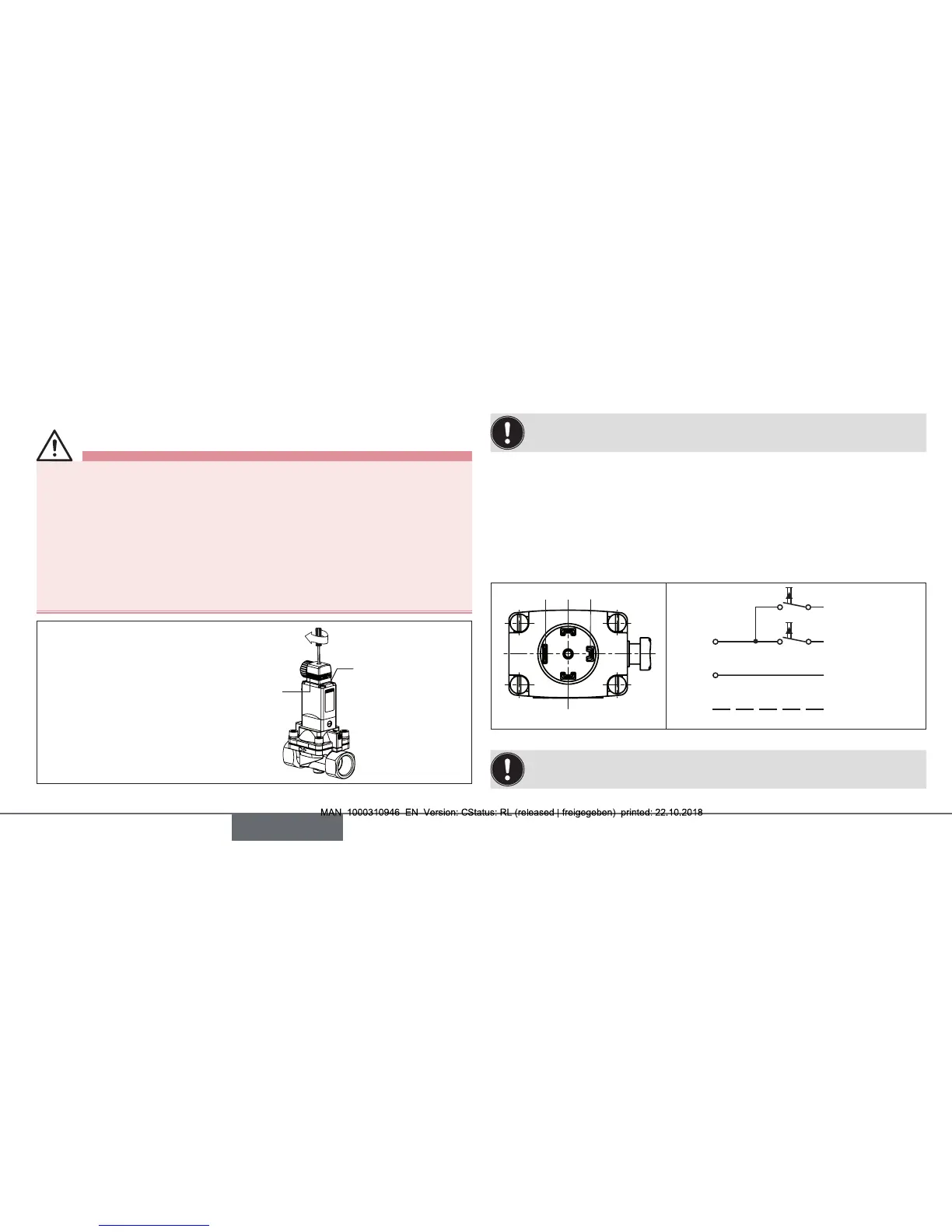

Fig. 7: Electrical connection of the cable plug
Note the voltage and current type as specied on the type label.
→ Tighten cable plug (for permitted types see data sheet), observing
max. torque 1 Nm.
→ Check that seal is tted correctly.
→ Connect protective conductor and check electrical continuity between
coil and body.
5.7.1 Electrical connection - Pulse (CF 02)
24 3
1
Terminal 1
(=) ∼
(+) L1
(–) N
PE
Terminal 2
Terminal 3
Earth connector
Fig. 8: Circuit diagram
The connection terminals in the device socket are identied with
the numbers 1 to 3 according to the terminals on the valve.
