• Use a shielded cable with an operating tempe-
rature limit higher than +80 °C.
• Use a high quality electrical power supply (fil-
tered and regulated).

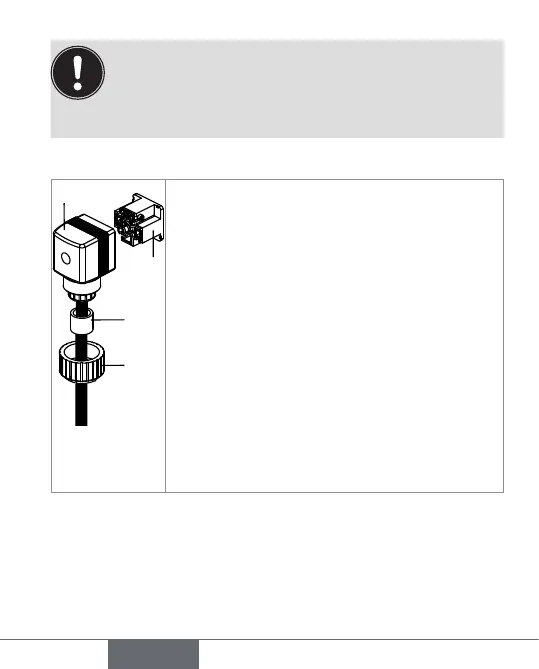

Assembling the female connector
1
2
3
4
Unscrew nut [1] of the cable gland.
Remove terminal block [3] from
housing [2].
Insert the cable into nut [1], through
seal [4], and into the cable gland and
finally through housing [2].
Connect the wires on terminal block
[3].
Position terminal block [3] in steps of
90° then put it back into housing [2],
pulling gently on the cable so that the
wires do not clutter the housing.
Tighten nut [1] of the cable gland.
