Burkert 8030 - Female Connector Assembly & Pin Assignment

27
6
5
 Place seal [5] between the connector
and the fixed connector on the device
and then plug the 2508 connector into
the fixed connector.
 Insert and then tighten screw [6] to
ensure tightness and correct electrical
contact.

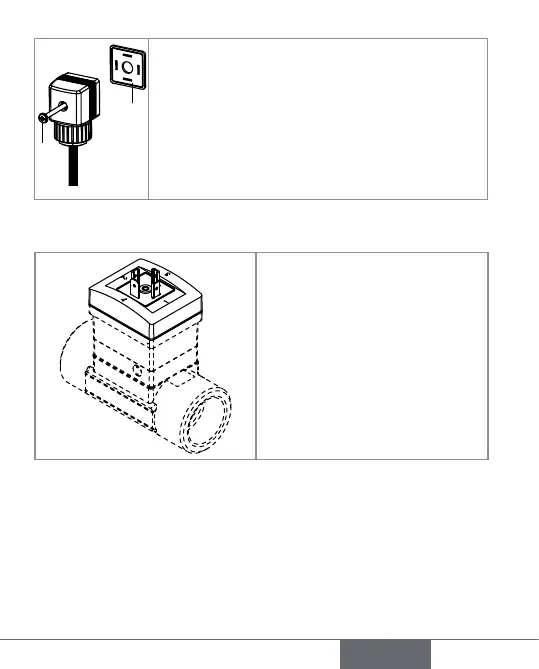

Fig. 3: Assembling the female connector type 2508
(supplied)
1: V+ (12-36 V DC)
2: NPN transistor output
3: 0 V DC
4: PNP transistor output
Fig. 4: Pin assignment of the fixed connector, Hall
version
