Burkert 8030 - Hall Version Wiring Diagrams (NPN;PNP)

28
12-36 V DC
+ -
+-
1
3
2
V+
0 V DC
Power supply
Pulse input on external instrument
Terminal block of the 2508

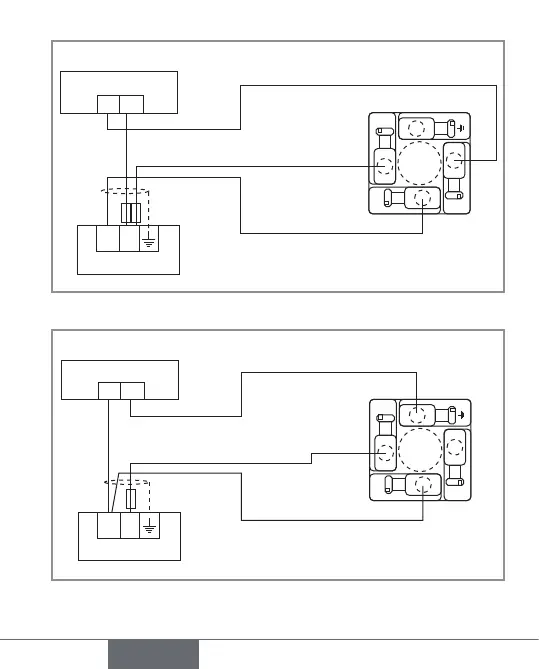

Fig. 5: NPN wiring of the Hall version
Terminal block of the 2508
12-36 V DC
+-
1
3
2
V+
0 V DC
+-
Pulse input on external instrument
Power supply
Fig. 6: PNP wiring of the Hall version
