Burkert 8030 - Hall Low Power Wiring & Pin Assignment

29
1: V+ (12-36 V DC)
2: NPN transistor output
3: 0 V DC
4: not connected

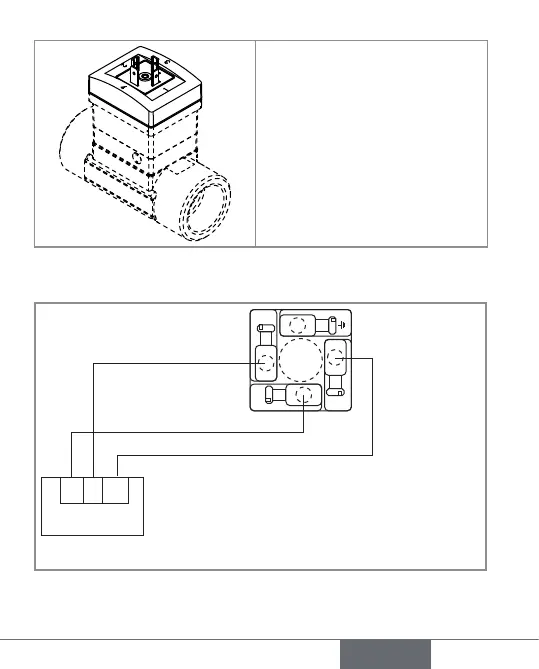

Fig. 7: Pin assignment of the fixed connector, Hall Low
Power version
+ -
IN
1
3
2
Remote transmitter
IN = pulse input on remote transmitter
Terminal block of the 2508
Fig. 8: NPN wiring of the Hall Low Power version
