BURLEY TRAILER OWNER’S INSTRUCTION AND SAFETY MANUAL 11
Bee
™

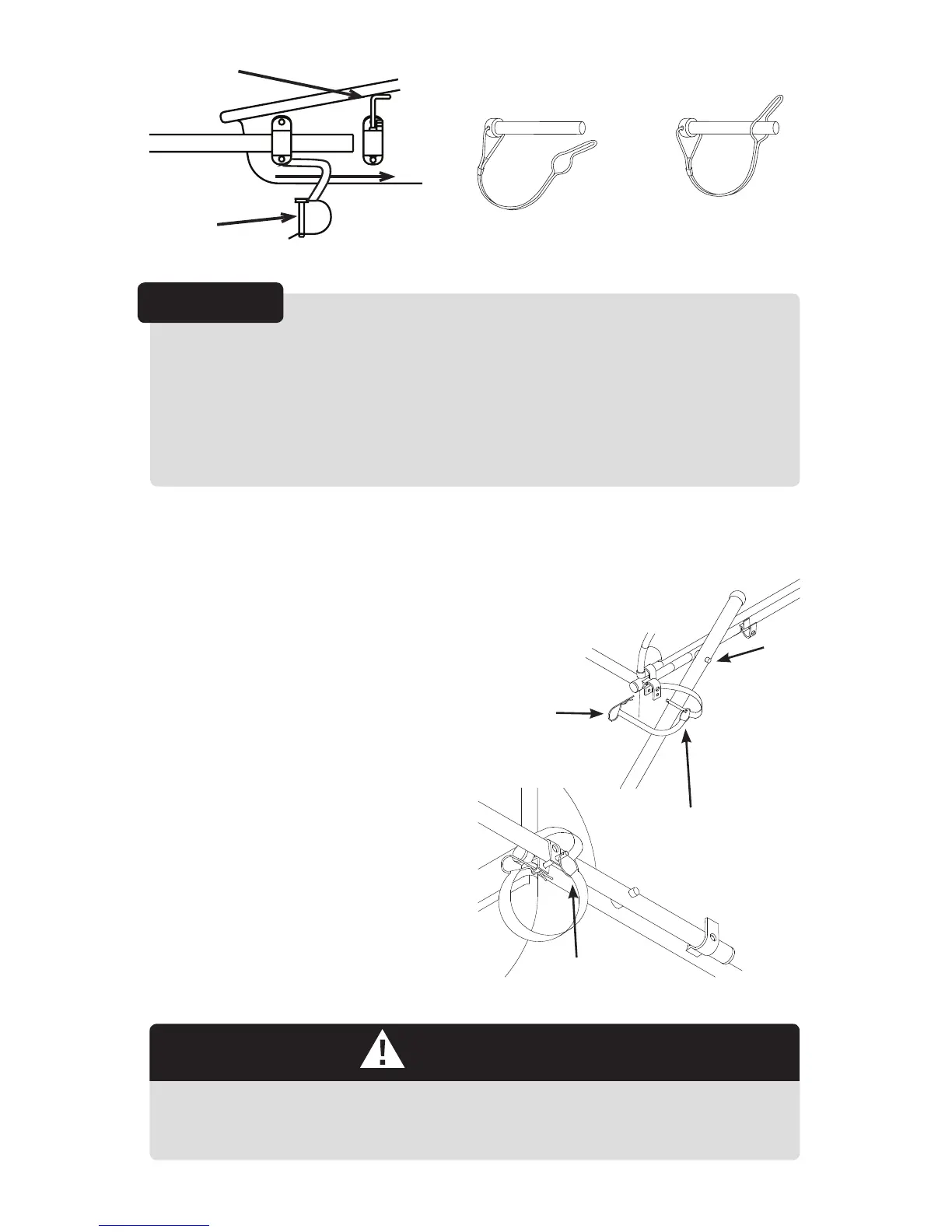

Tip the trailer onto its back end. Slide the tongue onto the
pivot pin at the left front. Secure the tongue as follows:
1. Remove the hairpin cotter and
lock pin from the front tongue
receptacle, rotate the tongue up
into place, and snap it into the
two plastic tongue receptacles.
2. Push the lock pin fully into the
front tongue receptacle.
3. Rotate the lock pin and locate
the hole in it, between the
receptacle and the trailer frame.
Anchor the lock pin by inserting
the hair pin cotter all the way
into the hole in the lock pin.
Never operate the trailer without the tongue lock pin and hairpin
cotter locked in place. An unlocked tongue can loosen or detach,
and cause accident, resulting in serious injury.
WARNING
The tongue pin is captured between the tongue receptacle
and the lip of the poly shell. It should never be completely removed from
the tongue receptacle. The tongue pin must be locked into place before
using the trailer. If the pin is not properly locked, the trailer could separate
from the bicycle, resulting in an accident or serious injury. The retaining
pin is a backup for the tongue pin. Under no circumstances should the
trailer be towed with only the retaining pin engaged.
IMPORTANT:
Pin in
locked
position
OPEN CLOSED
Retaining Pin
3. Anchor Lock Pin
with Hairpin Cotter
4. Anchor Lock
Pin with
Hairpin Cotter
1. Slide
Tongue
onto
Pivot Pin
2. Rotate Tongue
into Place
5. Lock Pin and Hairpin
Cotter Locked in Place
(viewed from underside)
