Mounting the Refl ectors
Cub
™
: Factory-installed Bee
™
: Rear Refl ectors Only
All other models:
FRONT: Clear front refl ectors are mounted horizontally to both sides of the
trailer fabric front. “TOP” is marked on the refl ector front. Locate the grom-
mets on the trailer fabric front, insert the screw into the refl ector back through
the grommet, and tighten snugly. Repeat for the other side.
REAR: Red refl ectors are mounted horizontally to both sides of the rear of the
main frame tube, with the refl ectors extending out past the sides.

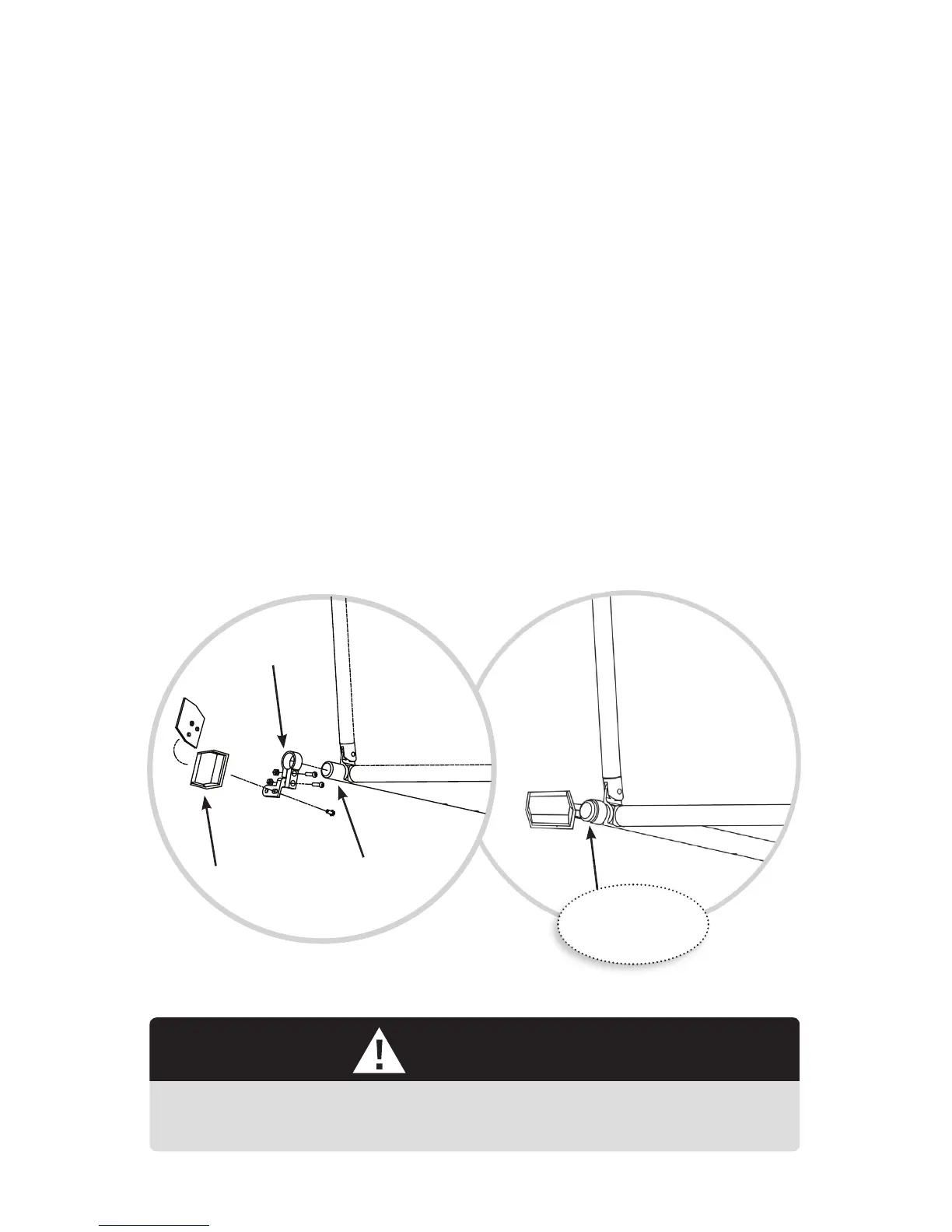

1. Snap the posts on the red refl ectors into the openings in the refl ector
brackets, and with the provided screw, screw the pieces together.
2. Loosen the black screw next to the clamp (A) on the refl ector bracket.
Slide the bracket clamp onto the rear side section (B) of the main
frame tube. Make sure the refl ector side marked TOP is to the top.
3. Tighten screw snugly, making sure refl ector extends out past the trailer
side. Repeat for the other side.
Make sure both refl ectors face outward. Incorrectly installed refl ectors
can reduce visibility at night and cause an accident or serious injury.
WARNING
A
B
C
Mounts
horizontally
to frame
