SECTION IV: INDIRECT WATER HEATER PIPING
A. CONNECT ALLIANCE™ INDIRECT WATER
HEATER PIPING as shown in Figures 15A and
15B.

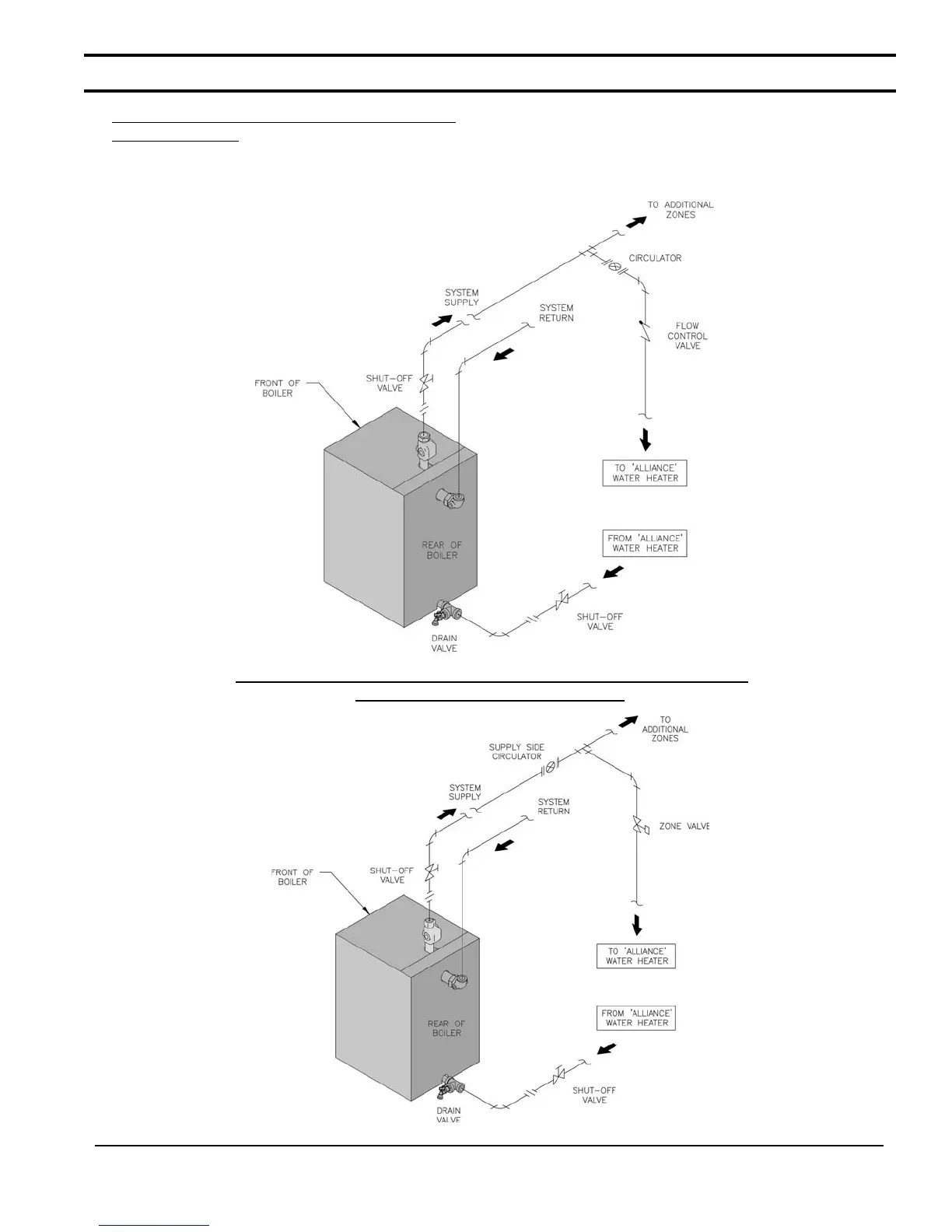

Figure 15A: Alliance™ Water Heater Piping w/Supply Side Circulator
on Circulator Zoned Heating System
Also refer to Figures 13A and 13B.
1. Refer to Alliance™ manual for additional
information.
Figure 15B: Alliance™ Water Heater Piping w/Supply Side Circulator on Zone Valve Zoned Heating System
