Burnham V11H Series User Manual

12
SECTION I - GENERAL INFORMATION (continued)

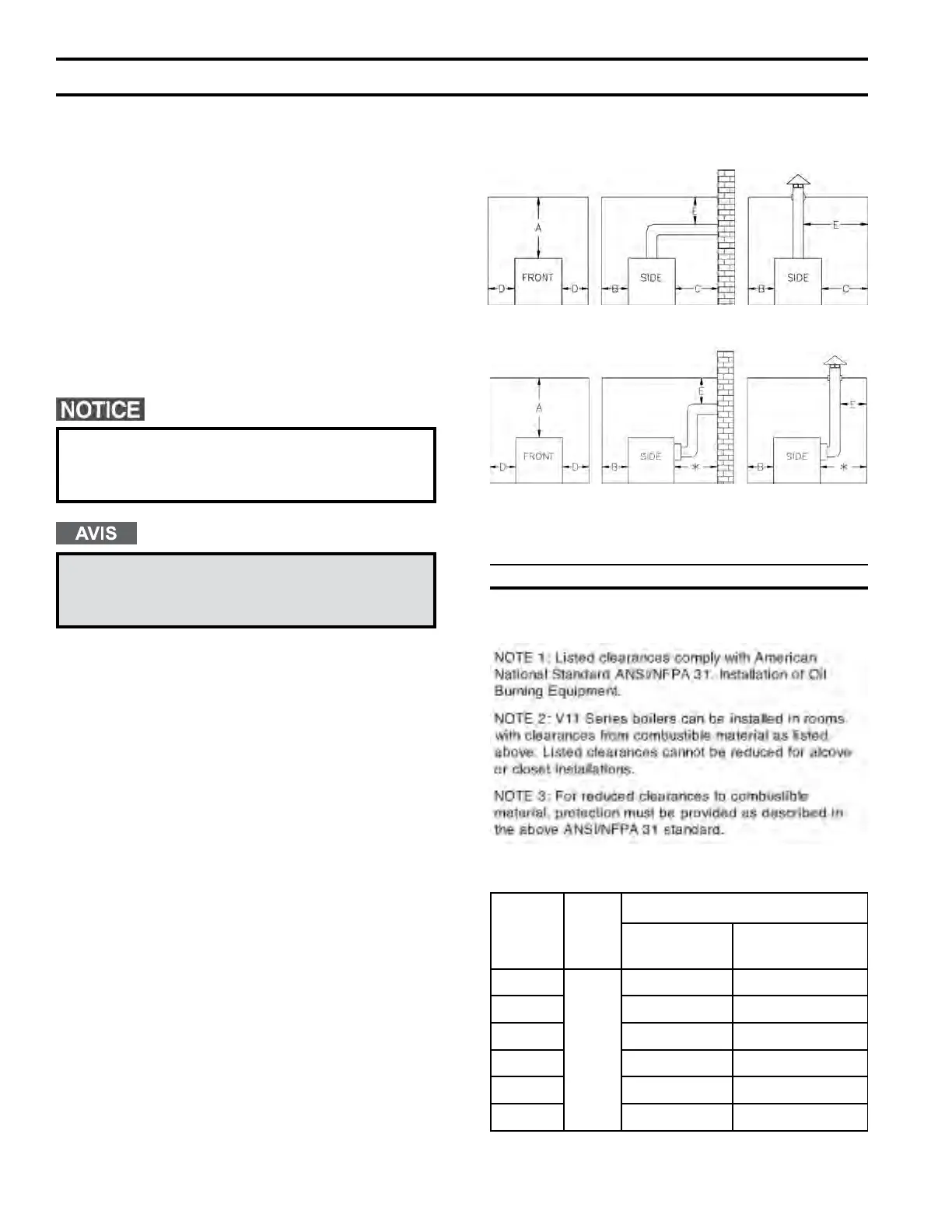

Table II: Minimum Installation Clearances To
Combustible Materials (Inches)
A. INSPECT SHIPMENT carefully for any signs of
damage.
1. ALL EQUIPMENT is carefully manufactured,
inspected and packed. Our responsibility ceases
upon delivery of crated Boiler to the carrier in good
condition.
2. ANY CLAIMS for damage or shortage in shipment
must be led immediately against the carrier by the
consignee. No claims for variances from, or short-
age in orders, will be allowed by the manufacturer
unless presented within sixty (60) days after the
receipt of goods.
B. LOCATE THE UNIT
Recommended clearance for service may be reduced
to minimum clearance to combustible material.
However, increased service and maintenance difculty
will result.
Le dégagement recommandé pour l'entretien peut
être réduit à un dégagement minimum par rapport aux
matériaux combustibles. Cependant, il en résultera
des difcultés de service et d'entretien accrues.
1. RECOMMENDED SERVICE CLEARANCE
--- Locate the unit in the boiler room so as to
provide ease of venting and adequate clearance
for maintenance, serviceability, and installation of
piping. Refer to Figure 1 for boiler dimensional
data.
FRONT --- Provide 54″ service clearance for
removal, maintenance, and servicing of burner and
controls.
REAR --- Provide a minimum service clearance
from the boiler jacket for access to pressure relief
door, ame observation port, rear ue damper and
vent piping, relief valve, and boiler return piping.
See following chart.
LEFT SIDE --- Provide a minimum clearance from
the boiler jacket of 36″ for cleaning of ueways.
RIGHT SIDE --- Less Tankless Heater - Provide a
minimum clearance from boiler jacket of 12″.
With Tankless Heater - Provide a minimum
clearance from the boiler jacket of 35″ for
installation and removal of tankless heater(s).
TOP --- Provide a minimum clearance from the
boiler jacket of 24″.
2. FOR MINIMUM CLEARANCES to combustible
materials, See Table II.
3. PROVIDE ADEQUATE FOUNDATION for the
unit. Refer to Figure 2.
eulF
teltuO
eziS
poT
eulF
teltuO
teltuOeulFraeR
elbitsubmoC
secafruS
elbitsubmoC-noN
secafruS
.aiD"8
"81
"24"72
.aiD"01"54"03
.aiD"21"84"33
.aiD"41"94"43
.aiD"61"25"73
.aiD"81"45"93
Table III: Recommended Rear Service Clearance
* See Table III for recommended service clearance
to access rear of boiler.
A B C D E
Above Front Rear Sides Vent Connector
6 24 6 6 18
Boilers with Top Flue Outlet
Boilers with Rear Flue Outlet
