63

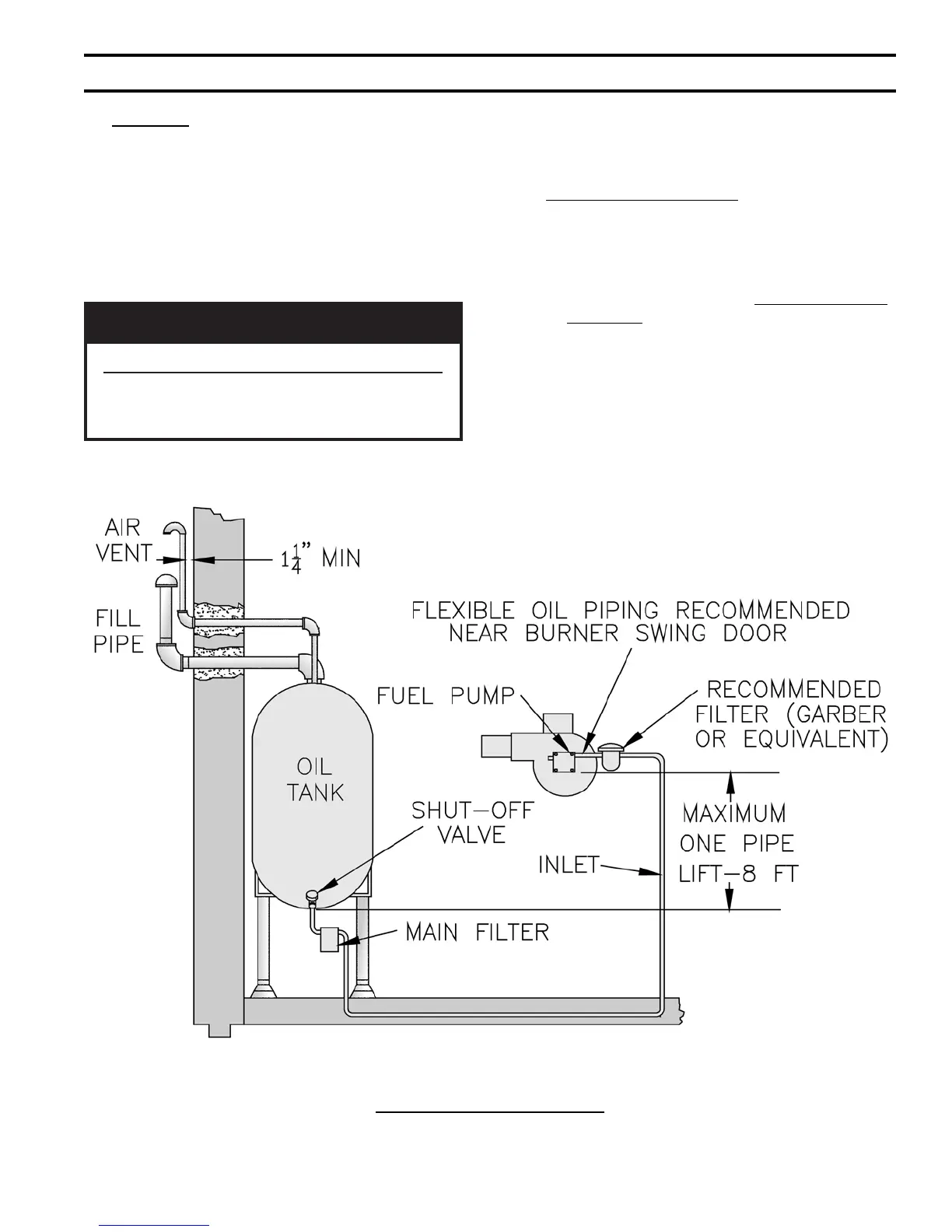

Figure 24: Single Pipe Oil Line
SECTION IX: OIL PIPING
A. GENERAL
1. Use fl exible oil line(s) so the burner swing door
can be opened without disconnecting the oil supply
piping.
2. A supply line fuel oil fi lter is recommended as a
minimum for all fi ring rates but a pleated paper fuel
oil fi lter is recommended for the fi ring rates below
1.0 gph to prevent nozzle fouling.
3. Use Flared fi ttings only.
ECITON
.sgnittifnoisserpmocesutonoD
rothgitriayletulosbaebtsumgnipipliO
.tluseryamemirpfossolroskael
.yletelpmoctinuleufdnaenildeelB
4. Use of a high effi ciency micron fi lter (Garber or
equivalent) in addition to a conventional fi lter is
highly recommended.
B. SINGLE PIPE OIL LINES
1. Standard burners are provided with single-stage
3450 rpm fuel units with the bypass plug removed
for single-pipe installations.
2. The single-stage fuel unit may be installed single-
pipe with gravity feed or lift. Maximum allowable
lift is 8 feet. See Figure 24.
