BUSCH Panda WV 2000 C - 2 Product Description

2 | Product Description
4 / 24 Instruction Manual PANDA WV 0250-2000 C_EN_en
2 Product Description

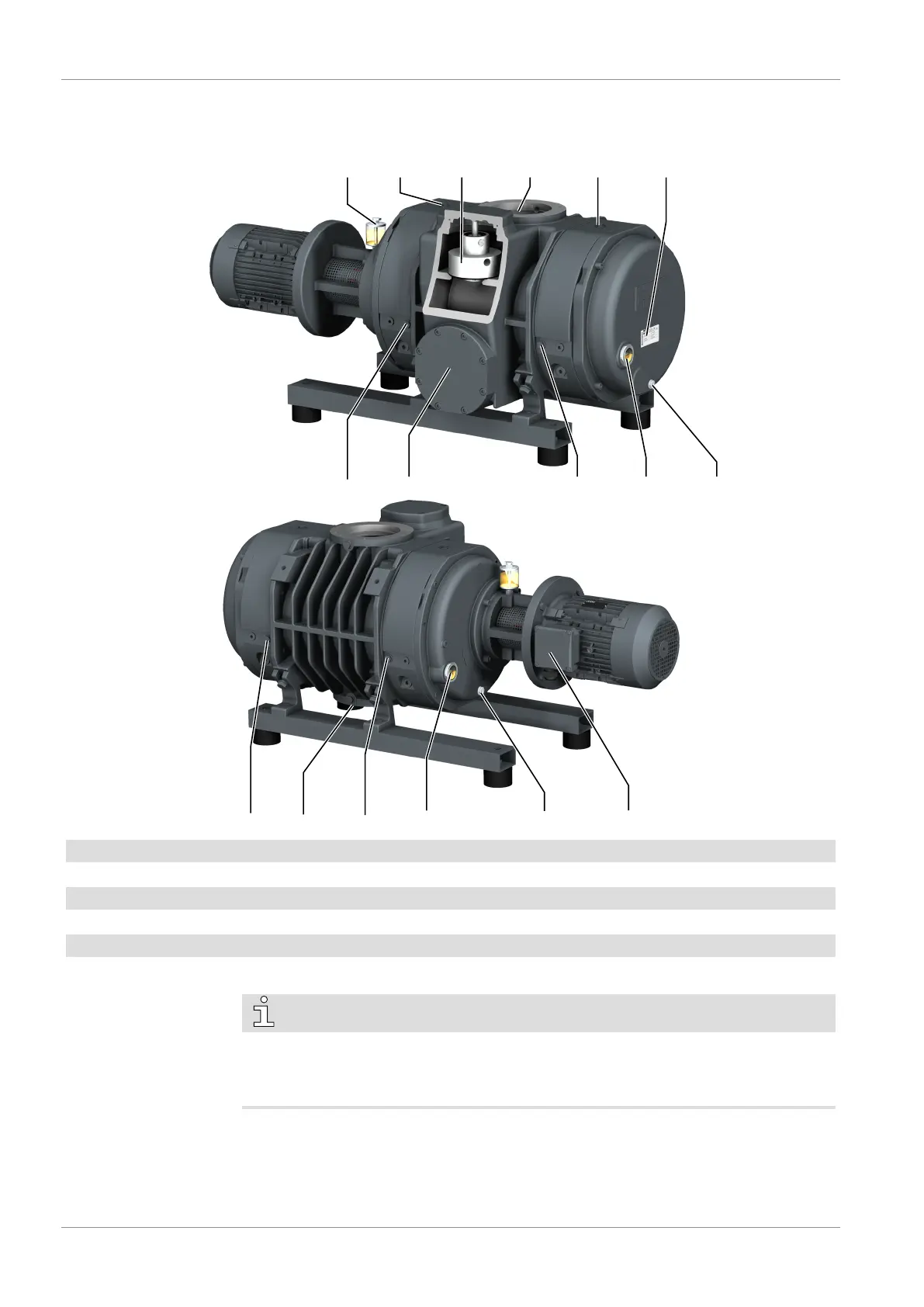

OFP BPV IN
OSG
ODP, MP
OFP
NP
ODP, MP MTBOSGOUT1
BGC
BGCBGC
OR
OUT2BGC
IN Suction connection MTB Motor terminal box
OUT Discharge connection OUT2 Lateral discharge connection (Optional)
MP Magnetic plug OFP Oil fill plug
NP Nameplate OSG Oil sight glass
BPV Bypass valve ODP Oil drain plug
OR Oiler (with lip seals only) BGC Barrier gas connection
NOTE
Technical term.
In this instruction manual, we consider that the term ‘machine’ refers to the ‘vacuum
booster’.
